MIC-770 User Manual 42

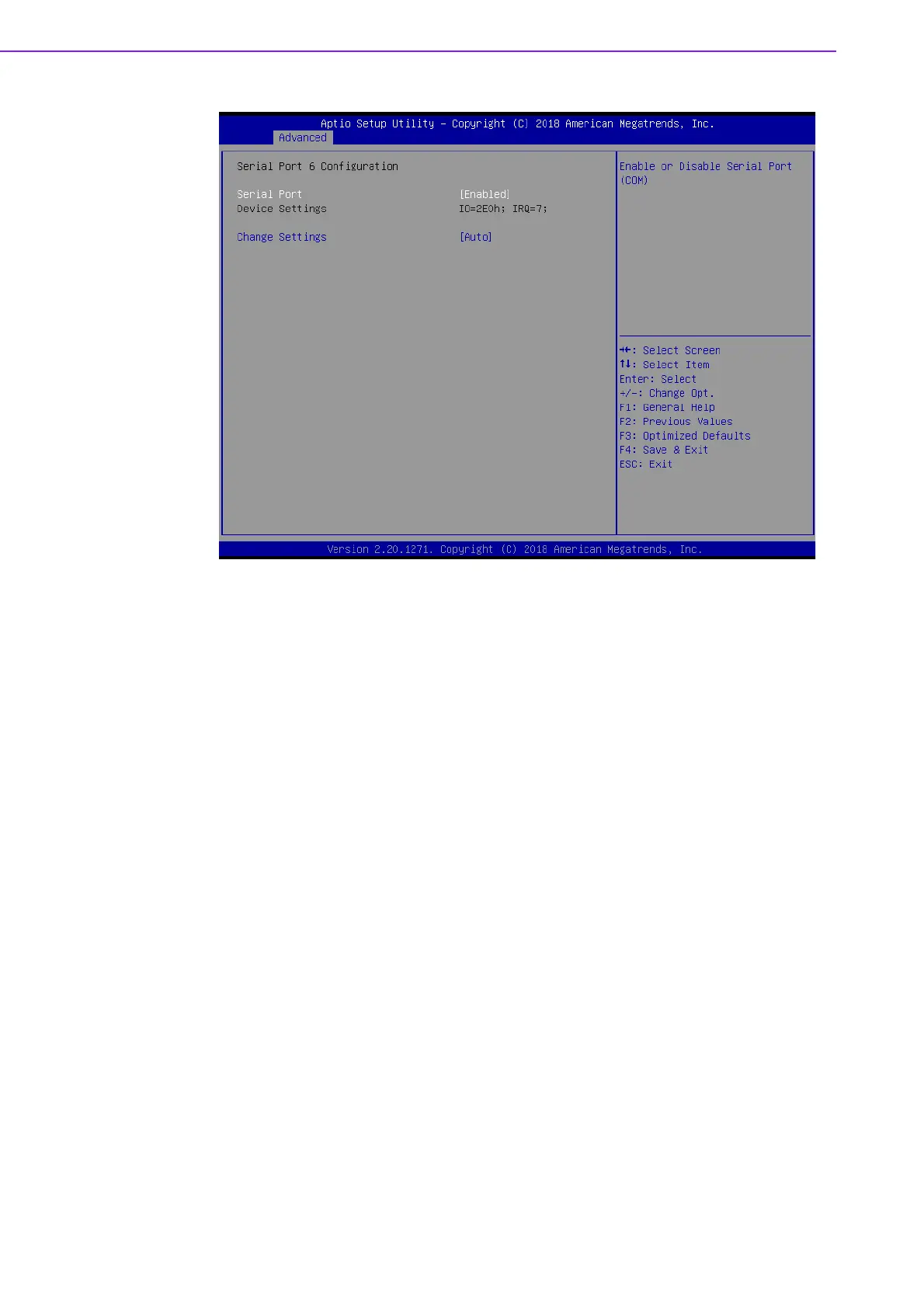

Figure 3.24 Serial Port 6 Configuration
 Serial Port 1 Configuration
– Serial Port
This item allows users to enable or disable Serial Port.
– Change Settings
This item allows users to Change Settings of the Serial Ports. The default
setting is Auto.
– Device Mode
This item allows users to set the mode of serial port. The default setting is
RS-232.When serial port 1 (COM1) is set to RS-485 mode via jumper
JSETCOM1, this item should be selected as "RS-485 (Half Duplex)" and fur-
ther set Auto Direction (Flow) Control setting to "On (enable) or Off (disable)".
Default for this Device Mode is "RS-232".
 Serial Port 2 Configuration
– Serial Port
This item allows users to enable or disable Serial Port.
– Change Settings
This item allows users to Change Settings of Serial Ports. The default setting
is Auto.
– Device Mode
This item allows users to set the mode of serial port. The default setting is
RS-232. When serial port 2 (COM2) is set to RS-485 mode via jumper
JSETCOM1, this item should be selected as "RS-485 (Half Duplex)" and fur-
ther set Auto Direction (Flow) Control setting to "On (enable) or Off (disable)".
Default for this Device Mode is "RS-232".
