MIC-770 User Manual
56
3.2.3.6
PCI Express Configuration

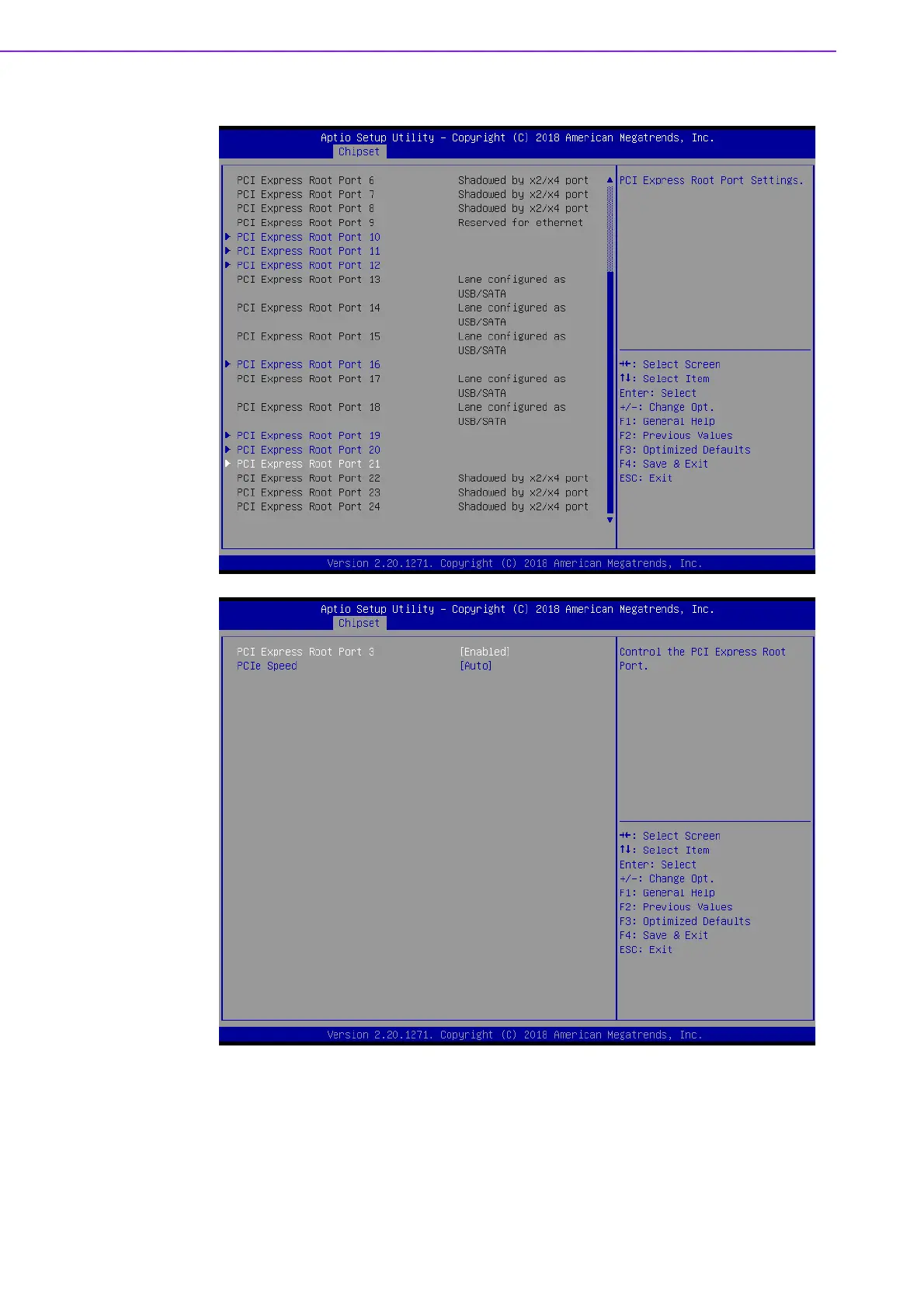

Figure 3.41 PCI Expre
ss Root Port Setting
PCI Express Root Port 1
Enable or Disable PCI Express Root Port.
PCIe Speed
Select "Auto, Gen1, Gen2, Gen3" for PCIe S
peed
