25 MIC-770 User Manual
Chapter 3 BIOS Operation
3.2 Entering BIOS Setup
Press <Del> to enter AMI BIOS Setup Utility, the Main Menu will appear on the
screen. Use arrow keys to select among the items and press <Enter> to accept or
enter the sub-menu.

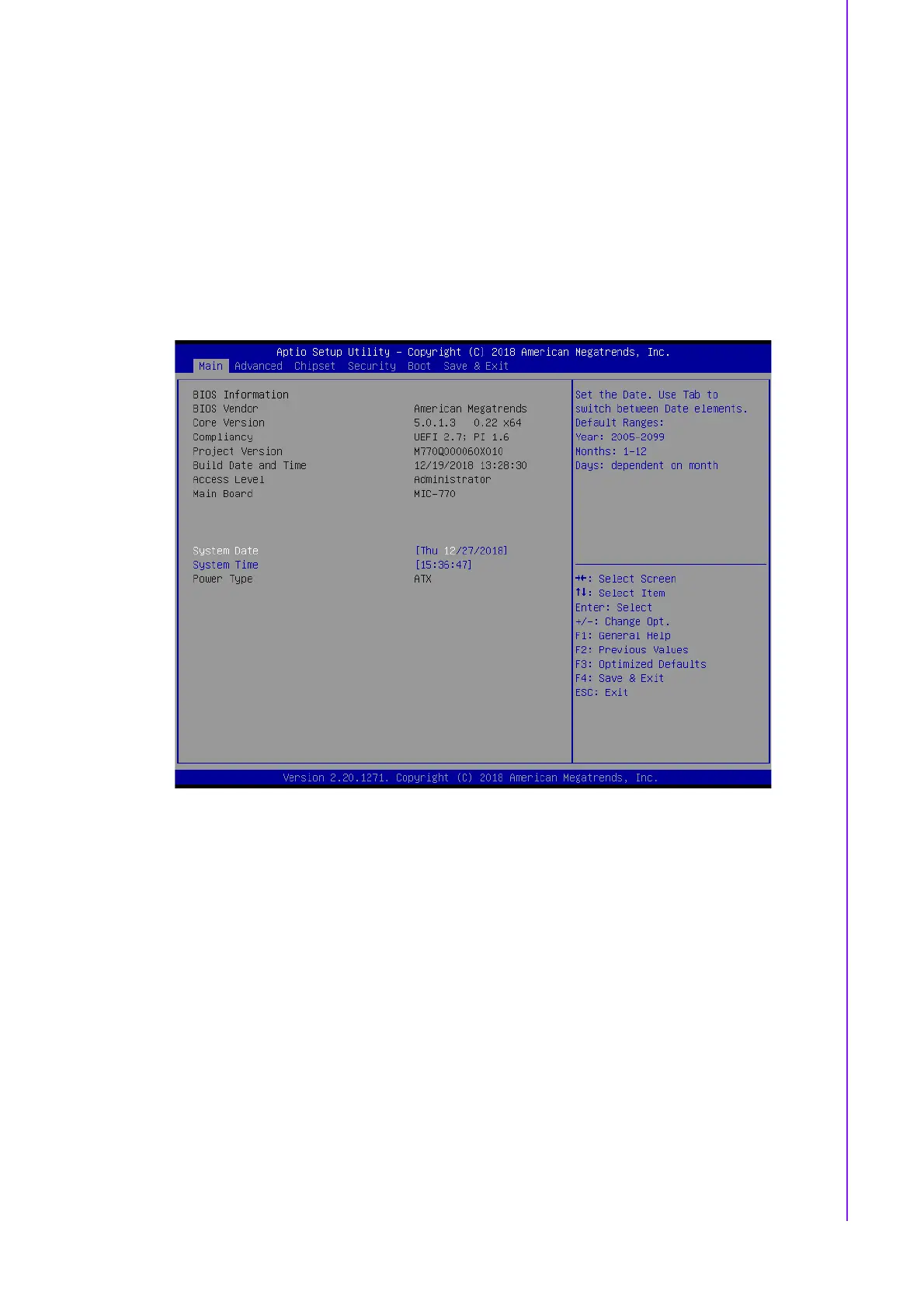

The Main BIOS setup screen has two main frames. The left frame displays all the
options that can be configured. Grayed-out options cannot be configured; options in
blue can be. The right frame displays the key legend.
The key legend above is an area reserved for a text message. When an option is
selected in the left frame, it is highlighted in white. Often a text message will accom-
pany it.
