MIC-770 User Manual 46
3.2.2.11 Serial Port Console Redirection

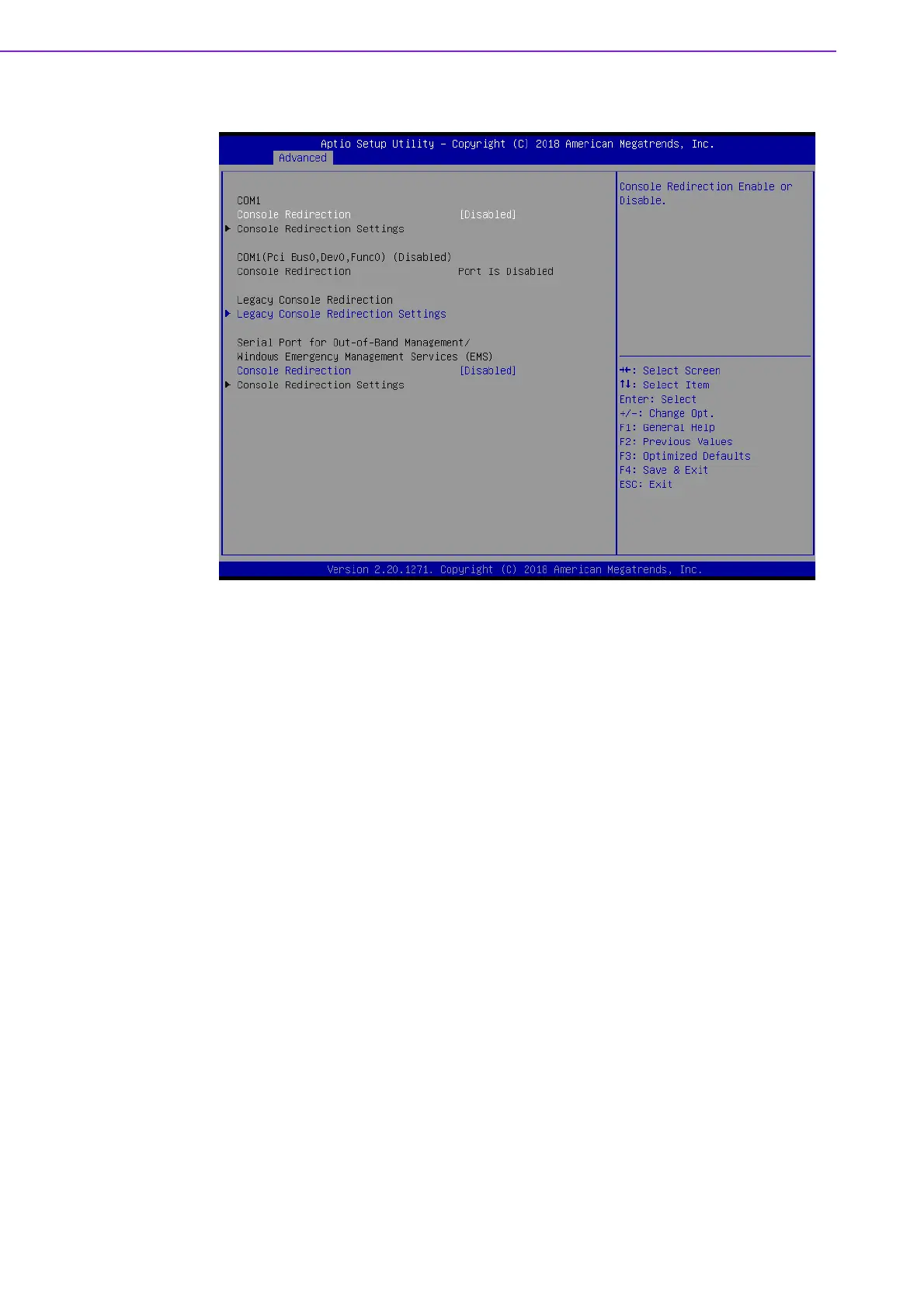

Figure 3.28 Serial Port Console Redirection
 COM1
– Console Redirection Settings
Console Redirection Enable or Disable
 Legacy Console Redirection
– Legacy Console Redirection Settings
Legacy Console Redirection Settings
 Serial Port for Out-of-Band Management/ Windows Emergency Manage-
ment services (EMS)
– Console Redirection
Console Redirection Enable or Disable
