Advantech PCA-6751 Series User Manual

Appendix C Pin Assignments 79

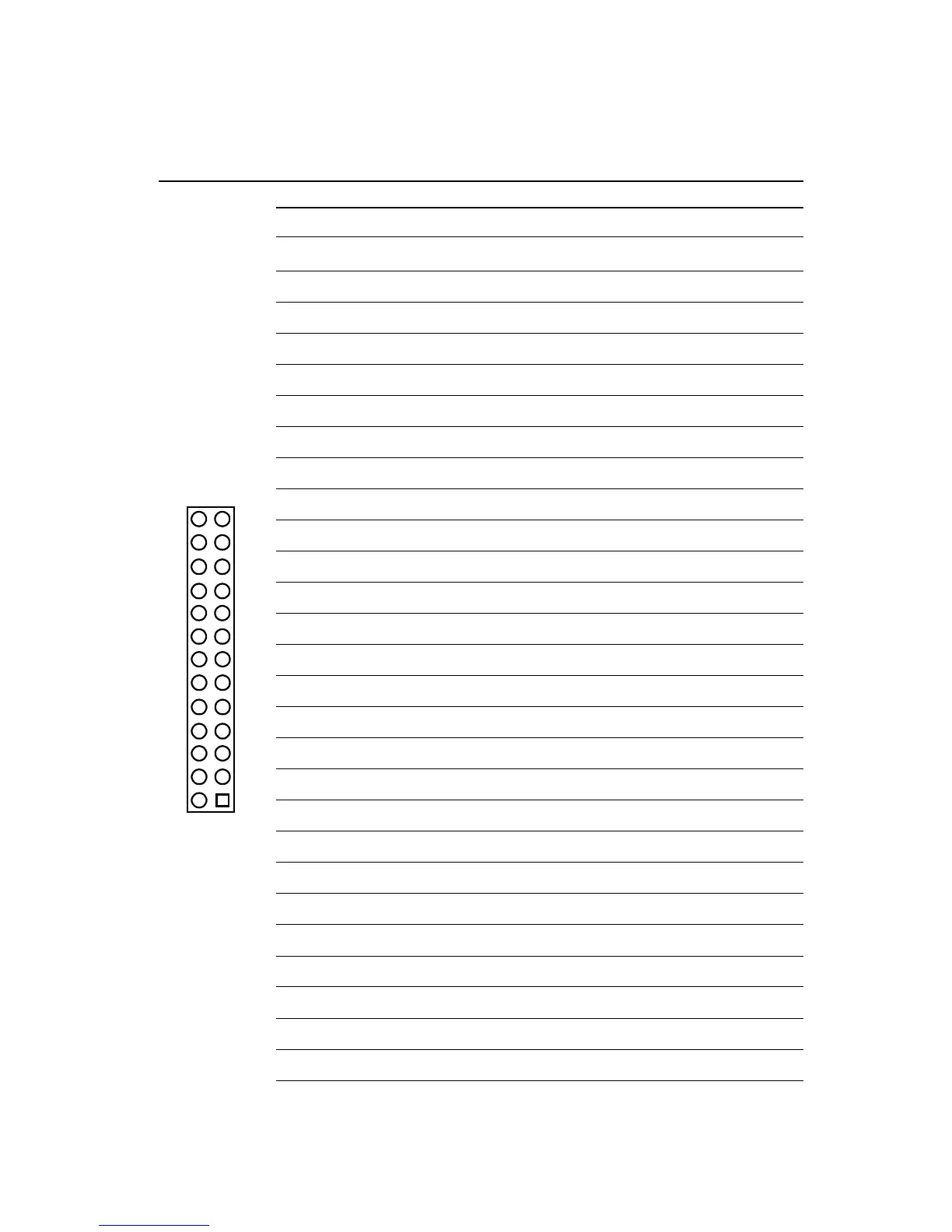

Table C-2: Parallel port connector (CN2)
Pin Signal
1 *STROBE
2 *AUTOFD
3D0
4 ERR
5D1
6 *INIT
7D2
8 *SLCTINI
9D3
10 GND
11 D4
12 GND
13 D5
14 GND
15 D6
16 GND
17 D7
18 GND
19 *ACK
20 GND
21 BUSY
22 GND
23 PE
24 GND
25 SLCT
26 N/C
* low active
15
26 13
2
25 12
114
C.2 Parallel port connector (CN2)
