Advantech PCA-6751 Series User Manual

Appendix C Pin Assignments 85
C.11 PC/104 connector (CN12)
For details on PC/104 connectors, please refer to Appendix B.

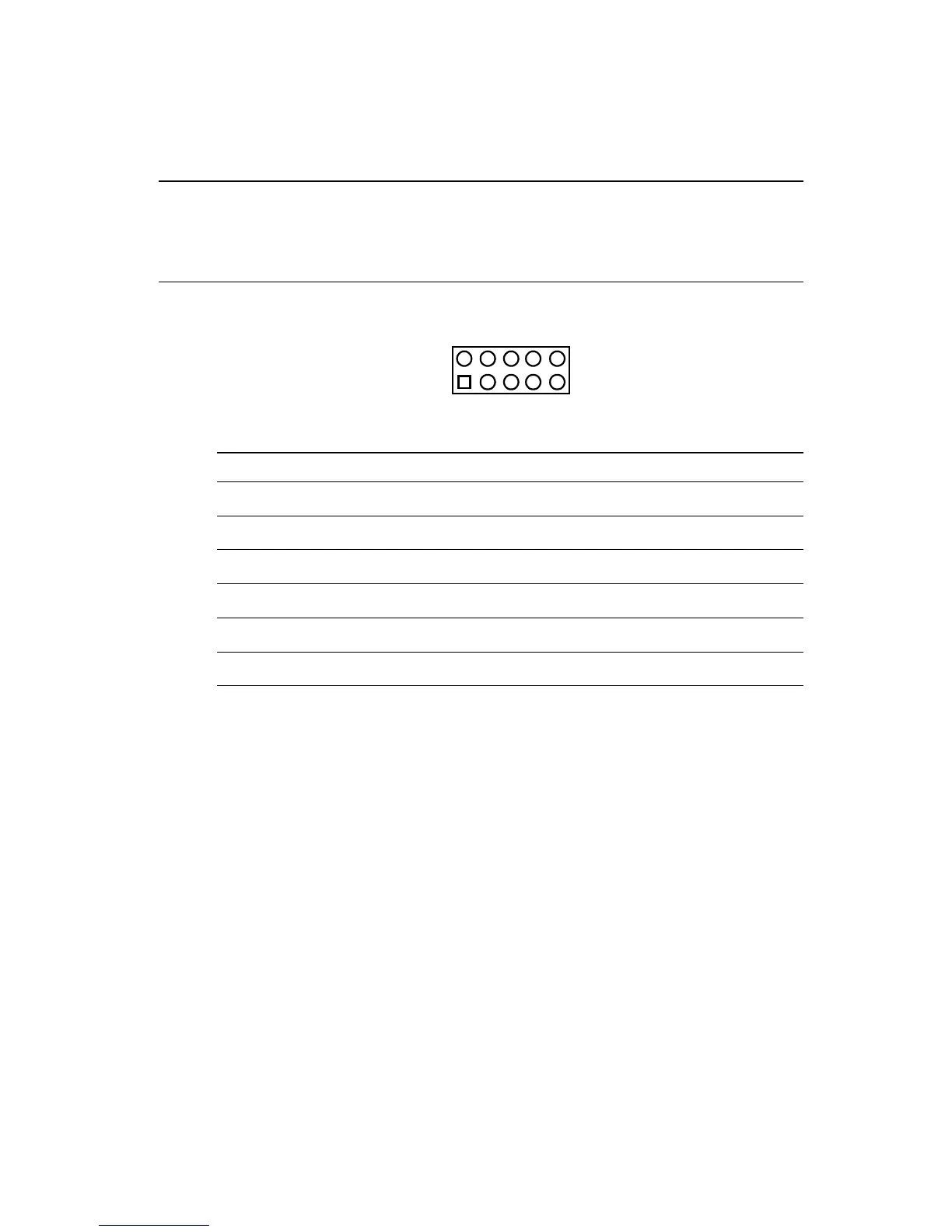

C.12 Ethernet connector (CN13)
Table C-11: Ethernet connector (CN1)
Pin Signal Pin Signal
1 Vcc (+5 V) 2 ACTLED-
3 RX+ 4 RX-
5 LILED- 6 GND
7NC 8GND
9 TX+ 10 TX-
3
64
5
28
9
7
10
1
