Advantech PCA-6751 Series User Manual

84 PCA-6751 Series User's Manual

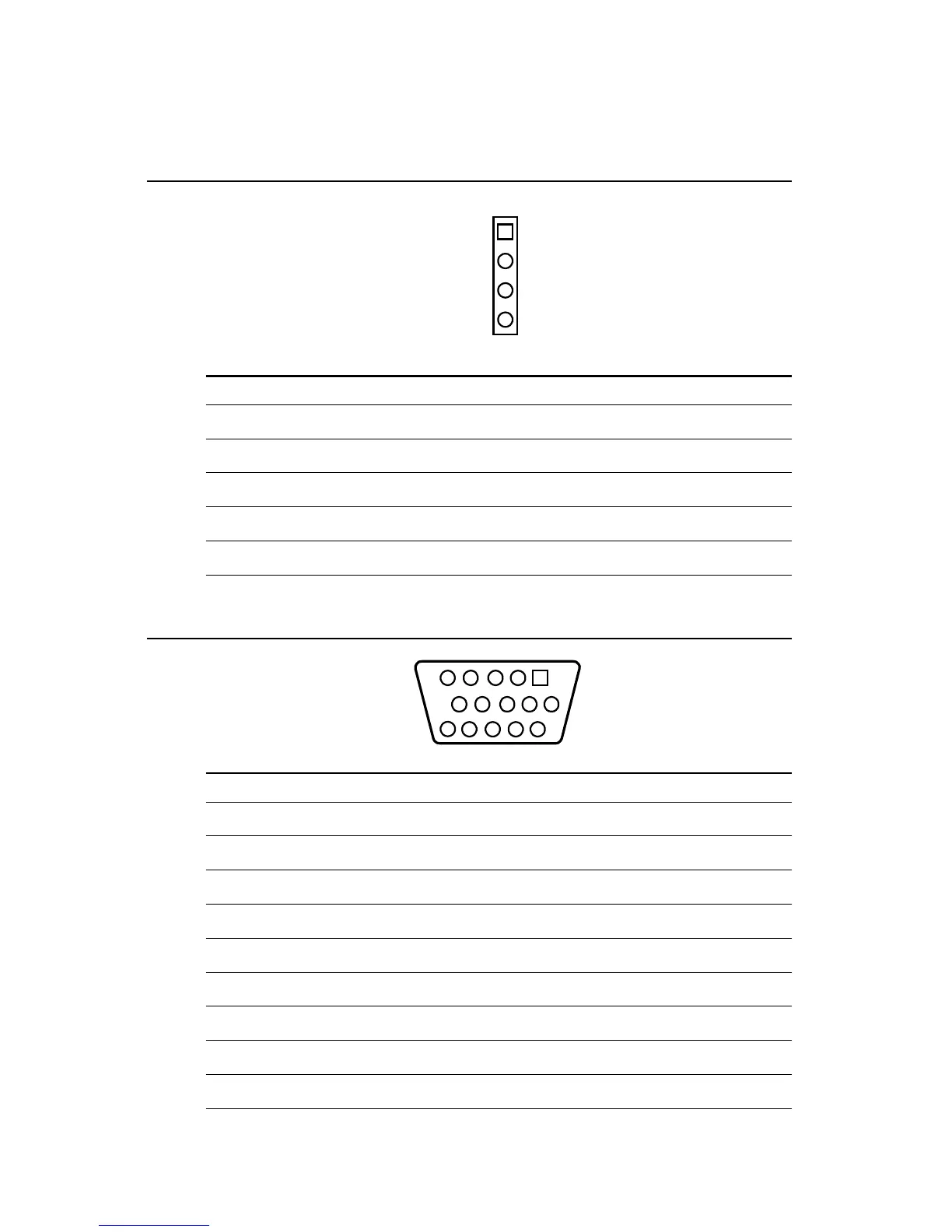

C.9 External speaker connector (CN9)
Table C-9: External speaker connector (CN9)
Pin Signal
1+ 5 V
2 N/C
3 Internal speaker
4 External speaker
C.10 VGA connector (CN11)
Table C-10: VGA connector (CN11)
Pin Signal Pin Signal
1 RED 9 N/C
2 GREEN 10 GND
3 BLUE 11 N/C
4 N/C 12 N/C
5 GND 13 H-SYNC
6 GND 14 V-SYNC
7 GND 15 N/C
8 GND
5
15
1
11
10 6
1
2
4
3
