Advantech PCA-6751 Series User Manual

Appendix C Pin Assignments 83

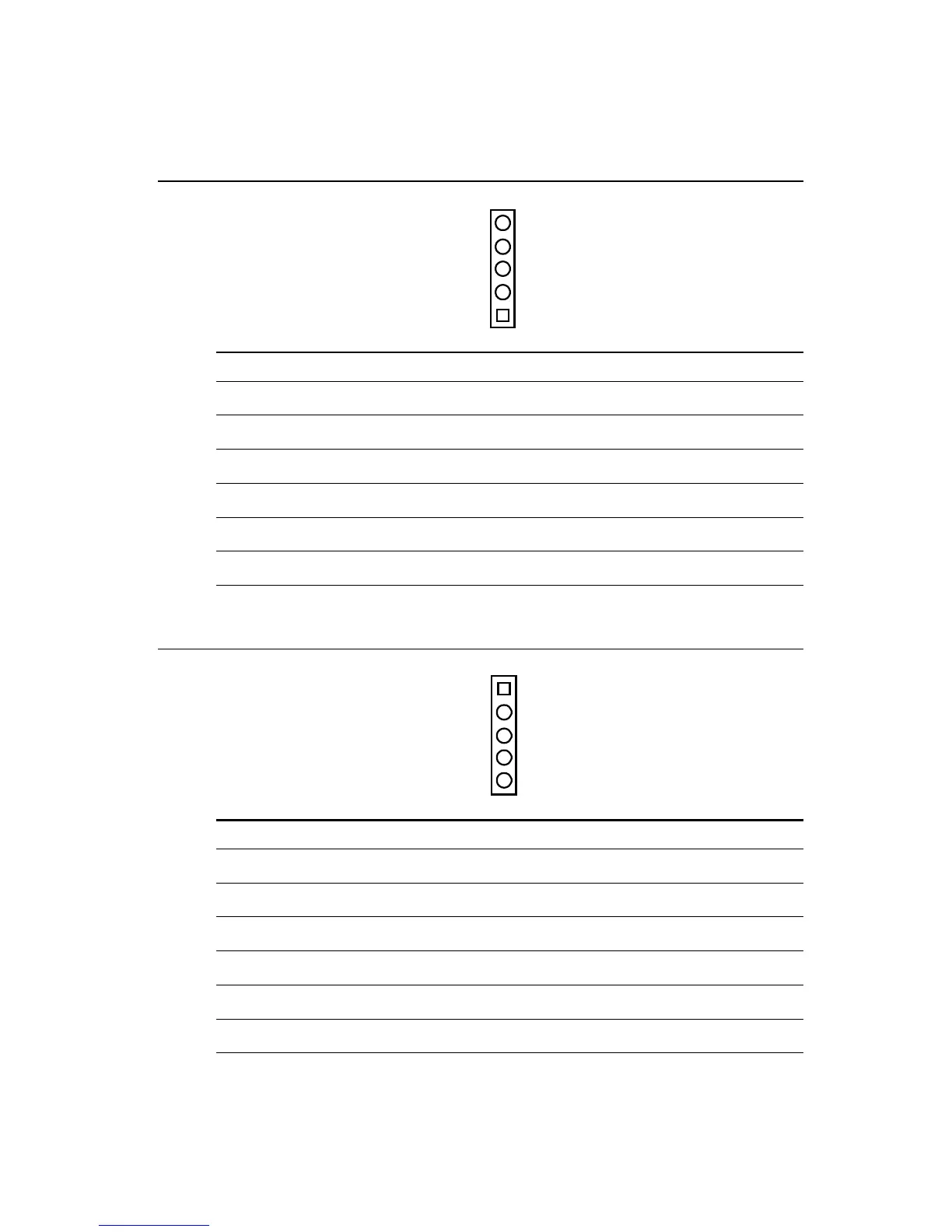

C.7 LCD inverter connector (CN7)
Table C-7: LCD inverter connector (CN7)
Pin Signal
1 +12 V
2 GND
3 ENABKL
4 VBR
5+ 5 V
C.8 IR connector (CN8)
Table C-8: IR connector (CN8)
Pin Signal
1 +5 V
2 N/C
3 IR_RX
4 GND
5 IR_TX
5
1
4
3
2
1
5
2
3
4
