37 UNO-2484G_V2 User Manual
Chapter 4 BIOS Operations

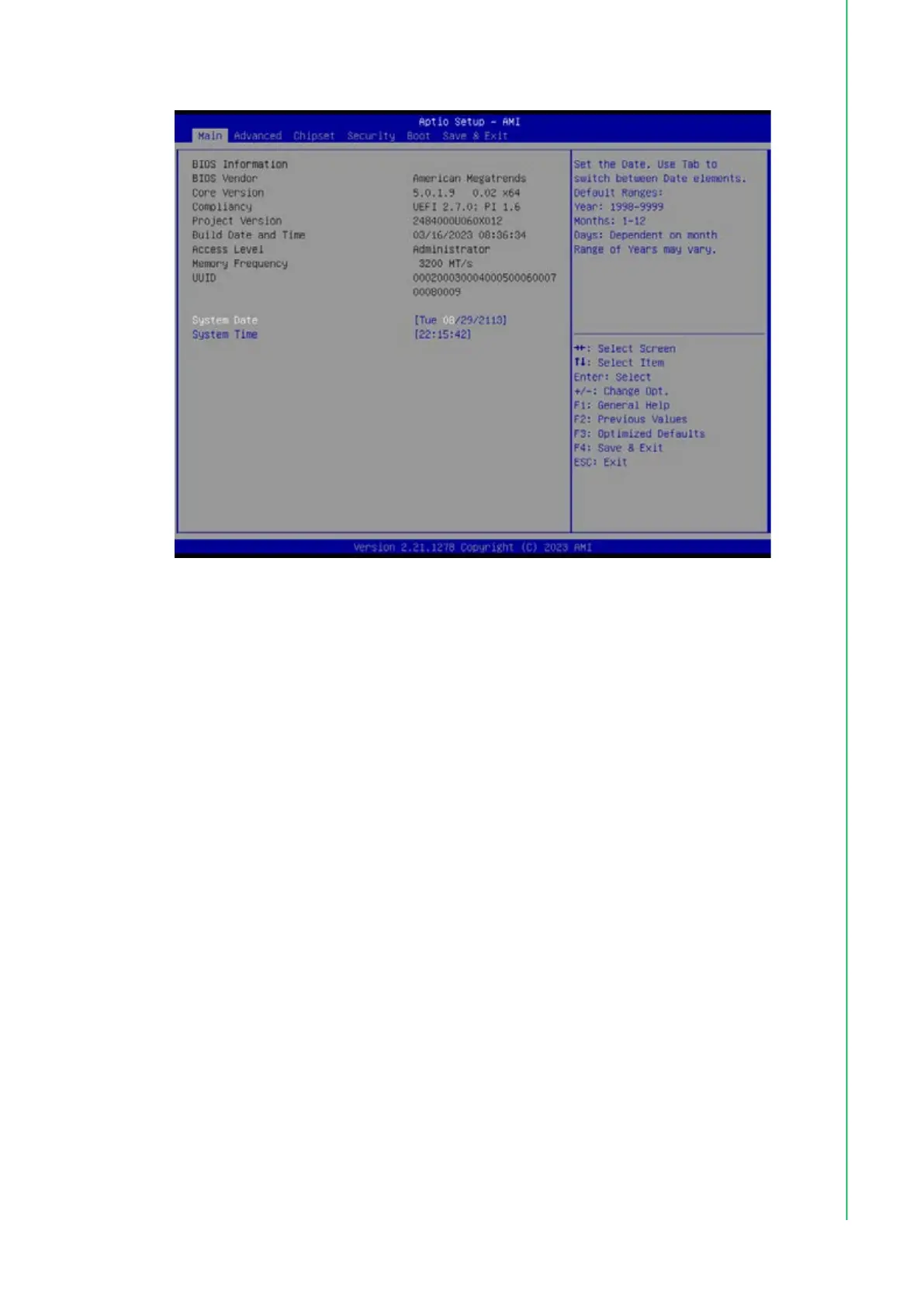

Figure 4.2 Main setup screen
The Main BIOS setup screen has two main frames. The left frame displays all the
options that can be configured. Grayed-out options cannot be configured; options in
blue can be. The right frame displays the key legend.
The key legend above is an area reserved for a text message. When an option is
selected in the left frame, it is highlighted in white. Often a text message will accom-
pany it.
System time/System date
End user can use System time/System date options to change the system time
and date. Highlight System Time or System Date using the keys. Enter new val-
ues through the keyboard, press the key or the keys to move between fields.
The date must be entered in MM/DD/YY format. The time must be entered in
HH:MM:SS format.
4.2.2 Advanced BIOS Features
Setup Select the Advanced tab from the UNO-2484G V2 setup screen to enter the
Advanced BIOS setup screen. You can select any of the items in the left frame of the
screen, such as CPU configuration, to go to the sub menu for that item. You can dis-
play an Advanced BIOS Setup option by highlighting it using the keys. All Advanced
BIOS Setup options are described in this section. The Advanced BIOS Setup
screens are shown below. The sub menus are described on the following pages
