Advantech WISE-4050/LAN User Manual

WISE-4000 User Manual 14
2.2.3 Pin Assignment

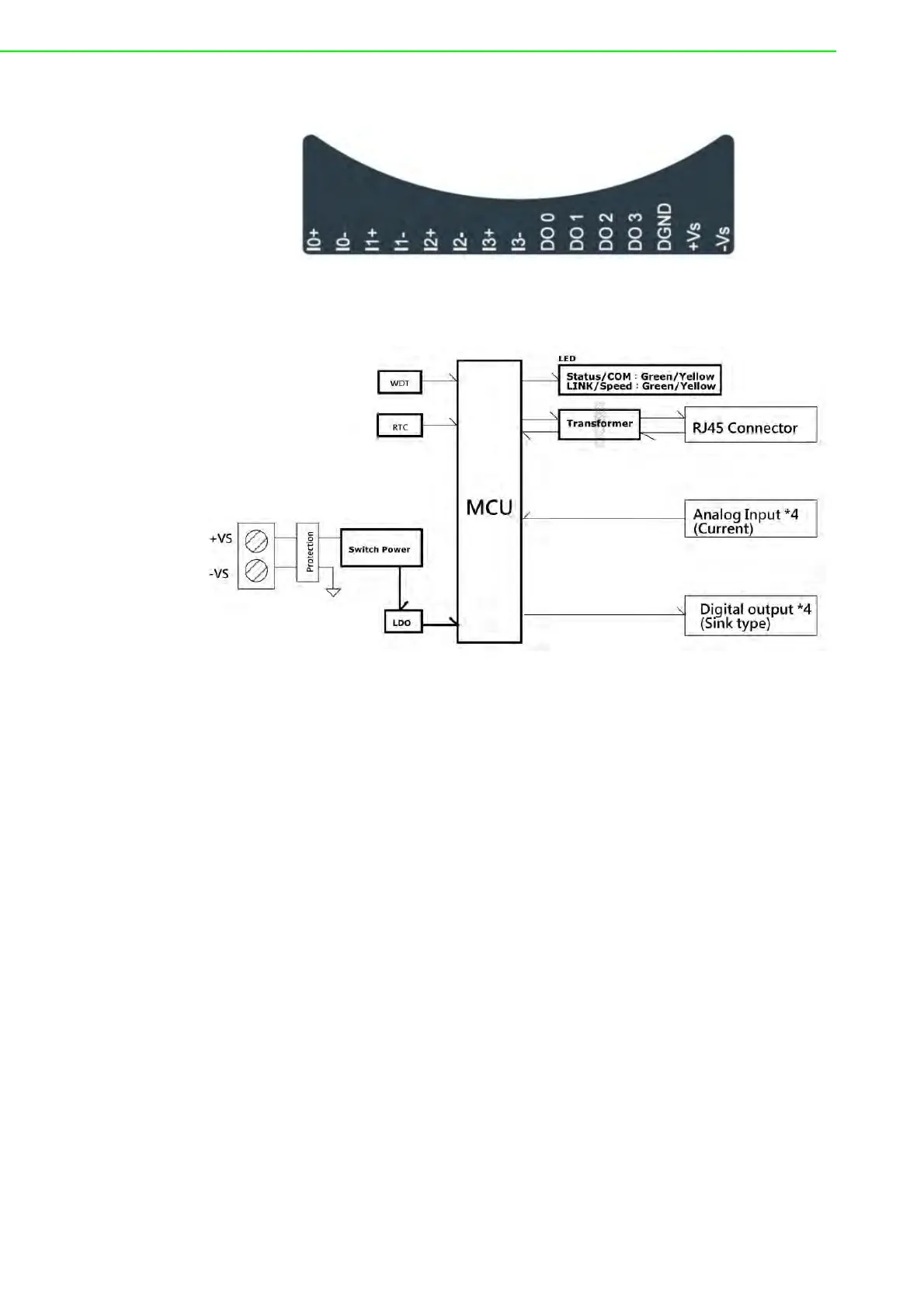

Figure 2.3 WISE-4010/LAN Pin Assignment
2.2.4 Block Diagram
Figure 2.4 WISE-4010/LAN Block Diagram
2.3 WISE-4050/LAN
2.3.1 I/O Specification
 Digital Input
– Channel: 4
– Logic level
–Dry Contact 0: Open
1: Close to DI COM
–Wet Contact 0: 0~3 V
DC
or -3~0 V
DC
1: 10~30 V
DC
or -30~-10 V
DC
(3 mA min.)
–All 4 channels should be configured to dry contact or wet contact in the
same time
– Isolation: 3,000 V
rms
– Supports 32-bit Counter Input Function (Maximum signal frequency 3 kHz)
– Keep/Discard Counter Value when Power-off
– Supports Frequency Input Function (Maximum frequency 3 kHz)
– Supports Inverted DI Status

Advantech WISE-4050/LAN Specifications

General

Brand	Advantech
Model	WISE-4050/LAN
Category	I/O Systems
Language	English
