WISE-4000 User Manual 90
4.4 Site Survey Tool for WISE-4000 Wireless Series
WISE-4000 Wireless Series provides Site Survey Tool for testing the communication
quality between WISE-4000 wireless module with wireless access point or wireless
router.

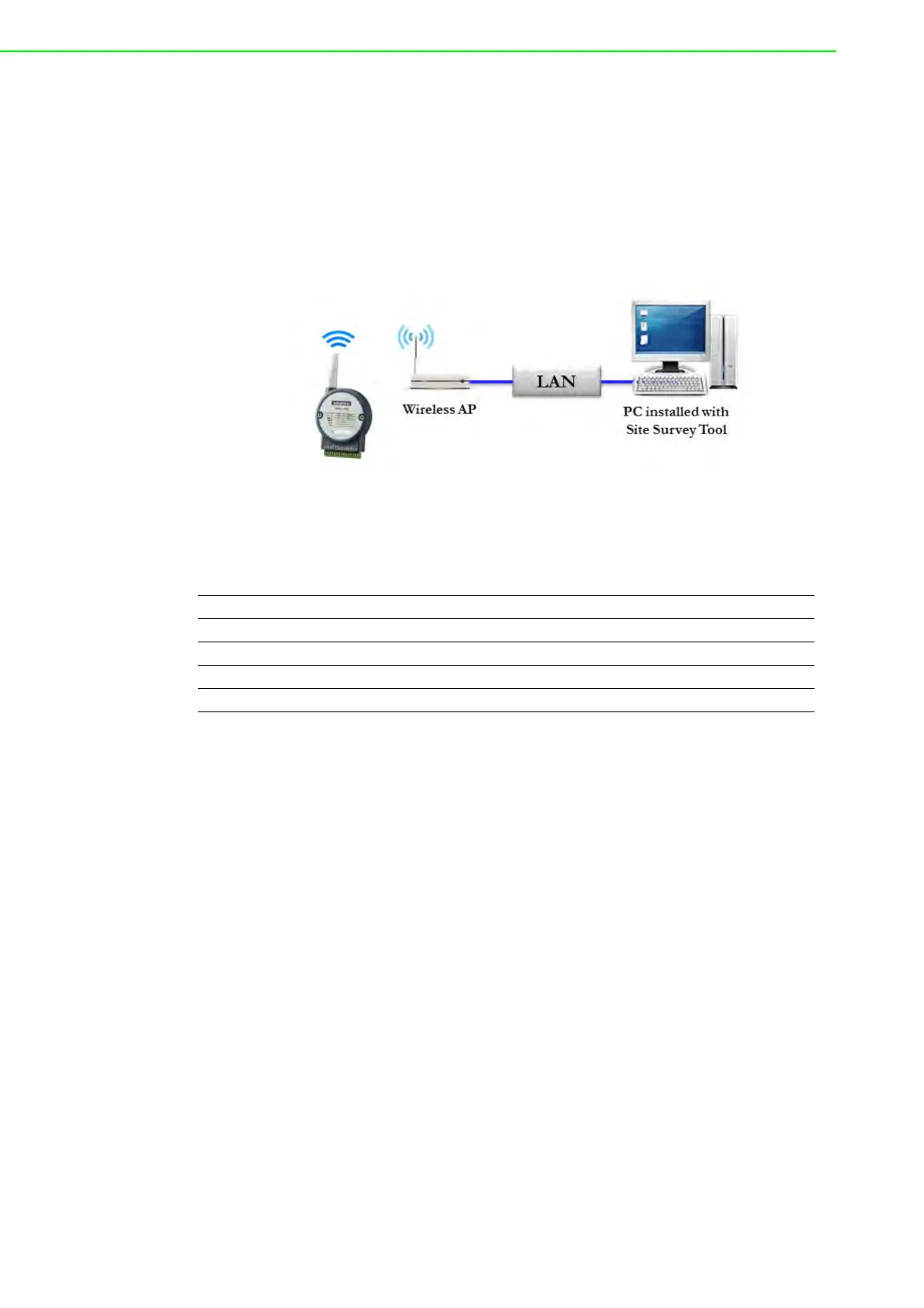

4.4.1 Site Survey Architecture
Wiring the wireless AP with the PC installed with Site Survey Tool (Utility), if possible,
the network should only have PC, AP, and WISE-4000 only.
4.4.2 Site Survey Mode
WISE module will go to site survey mode operation for testing communication quality.
Most of the functions of WISE module will temporally stop to doing site survey opera-
tion. And the LED status will work as following:
LED Color Indication Behavior
Status Green OFF Site Survey mode
Com Yellow Blink Site Survey data packet TX/RX
AP/Infra Green OFF Site Survey mode (Station Mode)
Signal Strength Green Blink Site Survey mode
