WISE-4000 User Manual 22
2.5.2 Application Wiring

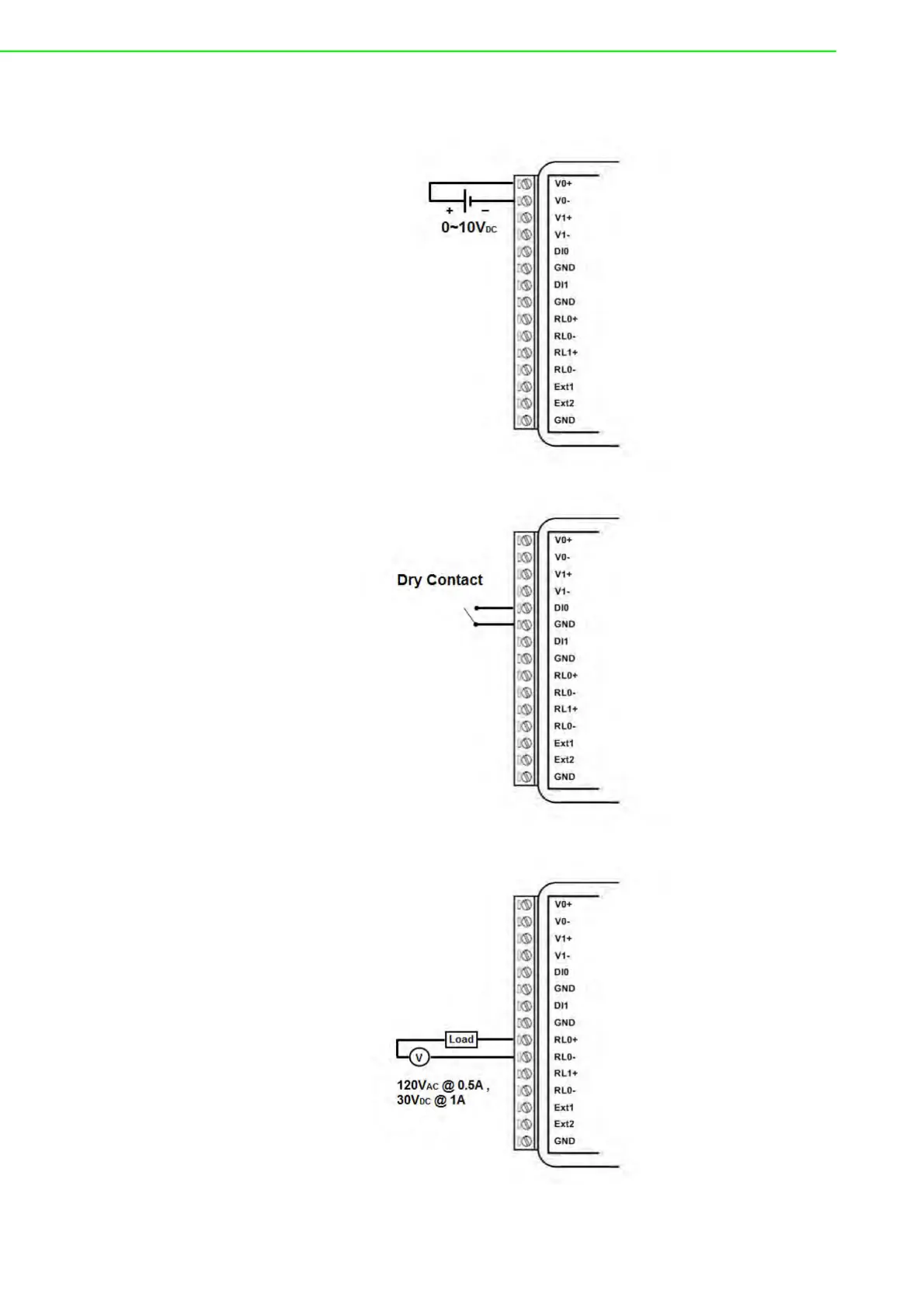

Figure 2.13 WISE-4012E Voltage Input Wiring Diagram
Figure 2.14 WISE-4012E Digital Input Wiring Diagram
Figure 2.15 WISE-4012E Relay Output Wiring Diagram
