WISE-4000 User Manual 30
2.8.2 Application Wiring

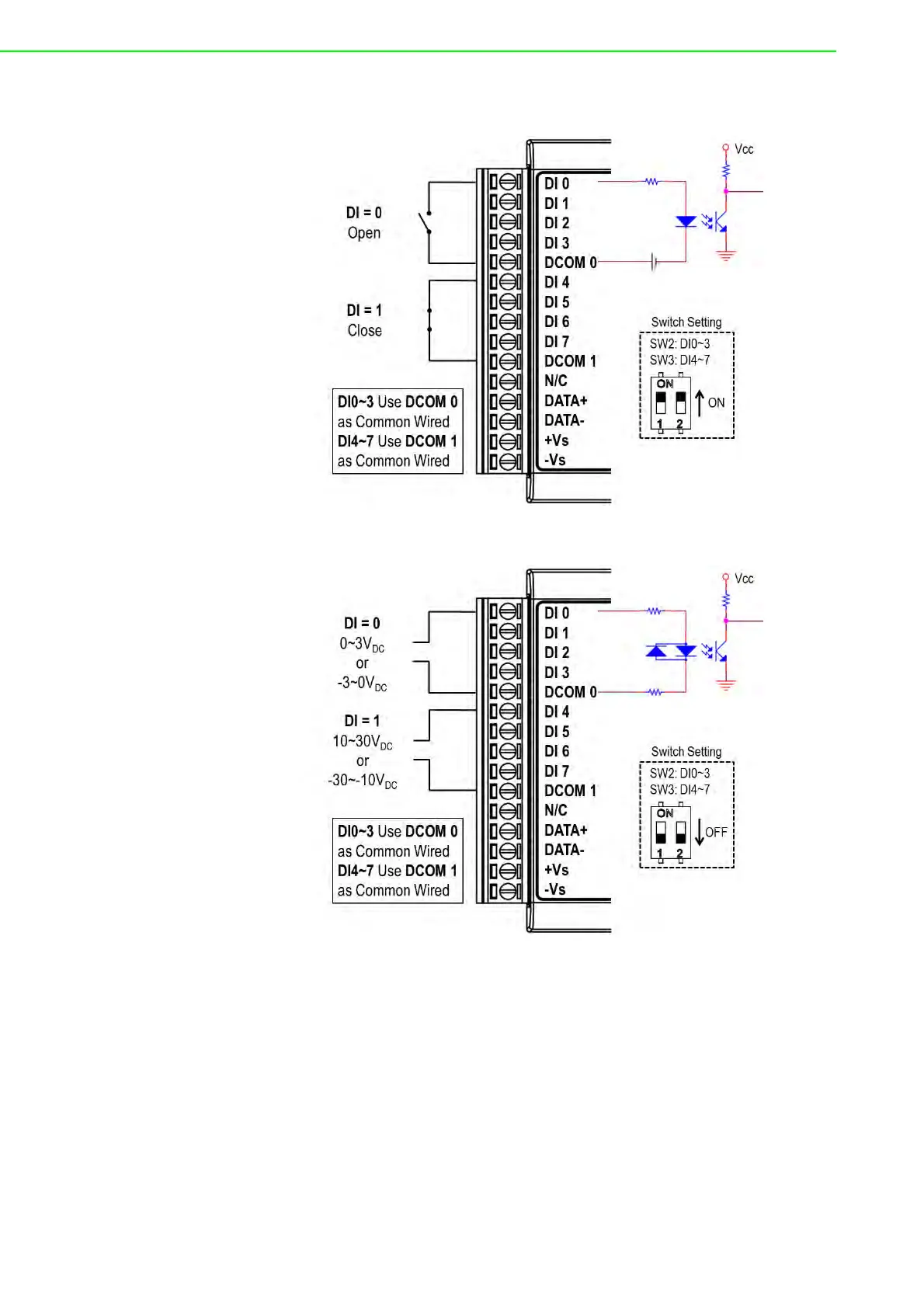

Figure 2.27 WISE-4051 Digital Input Dry Contact Wiring Diagram
Figure 2.28 WISE-4051 Digital Input Wet Contact Wiring Diagram
