39 WISE-4610(P) User Manual
Chapter 4 Software Functions

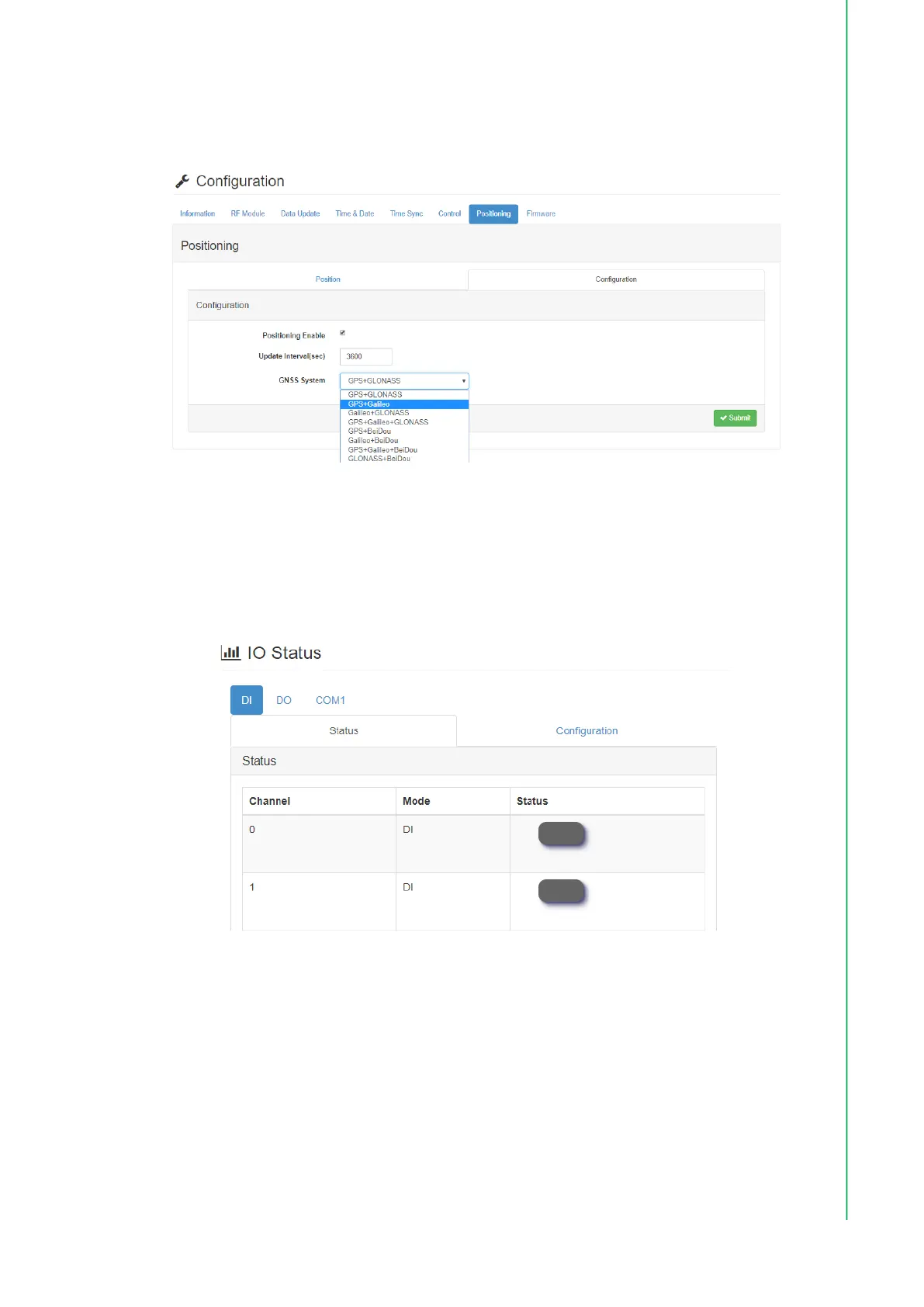

As shown below, the GNSS System field features a dropdown menu with different
GPS system combination options. Users can select the system combination accord-
ing to their usage requirements.
4.3.1.5 I/O Status Configuration
Digital Input
Status
The value of all digital input channels can be determined from the LED indicators on
the DI tab (green LED = logic high; grey LED = logic low).
