HV844-N 12.01 R.B. 599 51 31 28 EN
Toploader
Changing drum lid at ALENA
Exchange of the drum lids
a) Remove the left and right side Panel
b) Depending on the version of the appliance:

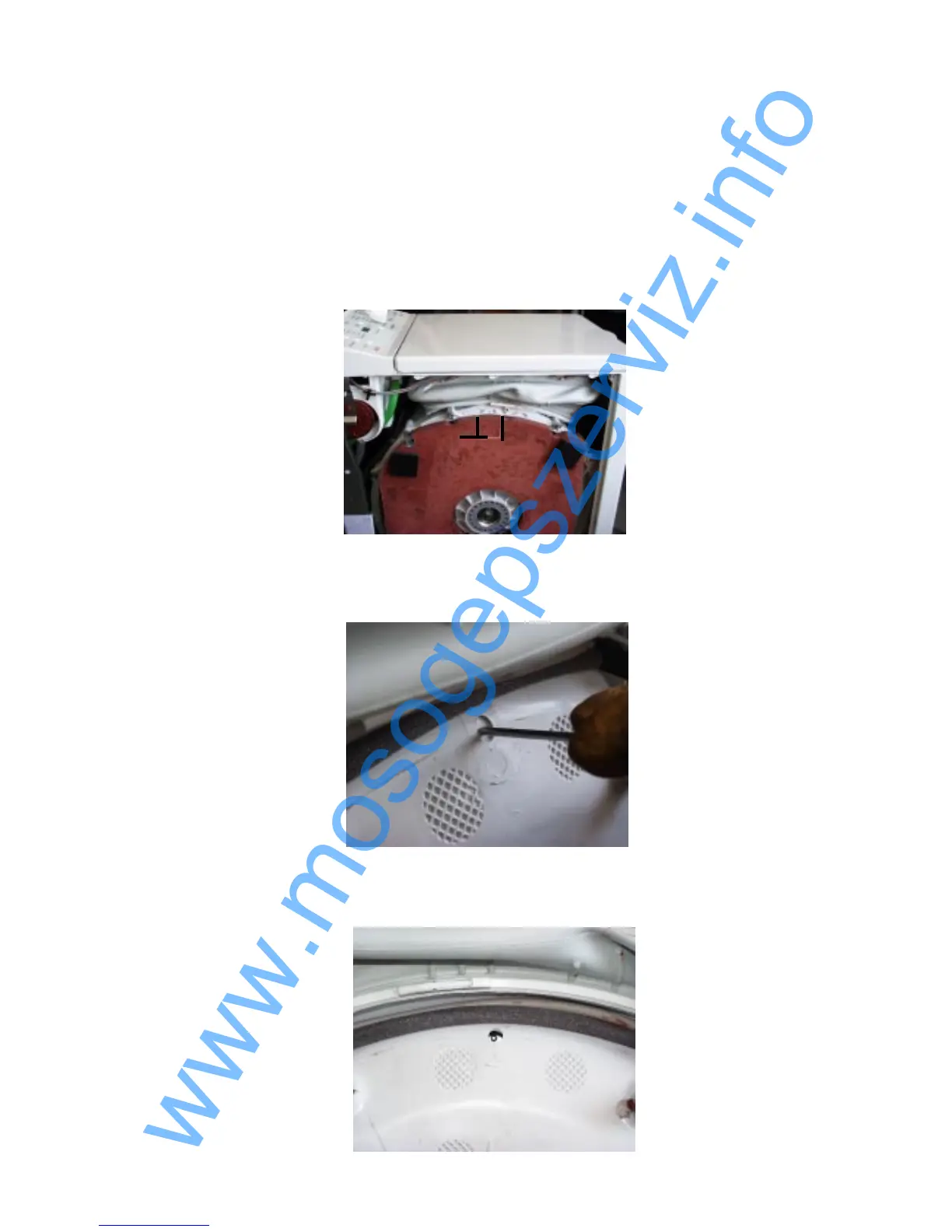

- Remove left and right weight without recess (see figure 1) do not remove weight
with recess. Attention! By appliances with Jet-System, loosen the tube.
c) The right and left side wall of the tub each shows a marking for a hole. These markings
have to be opened using the enclosed punch (see figure 2).
d) Turn the drum until the axle of the drum lid matches with the holes in the side wall of the
tub (see figure 3).
