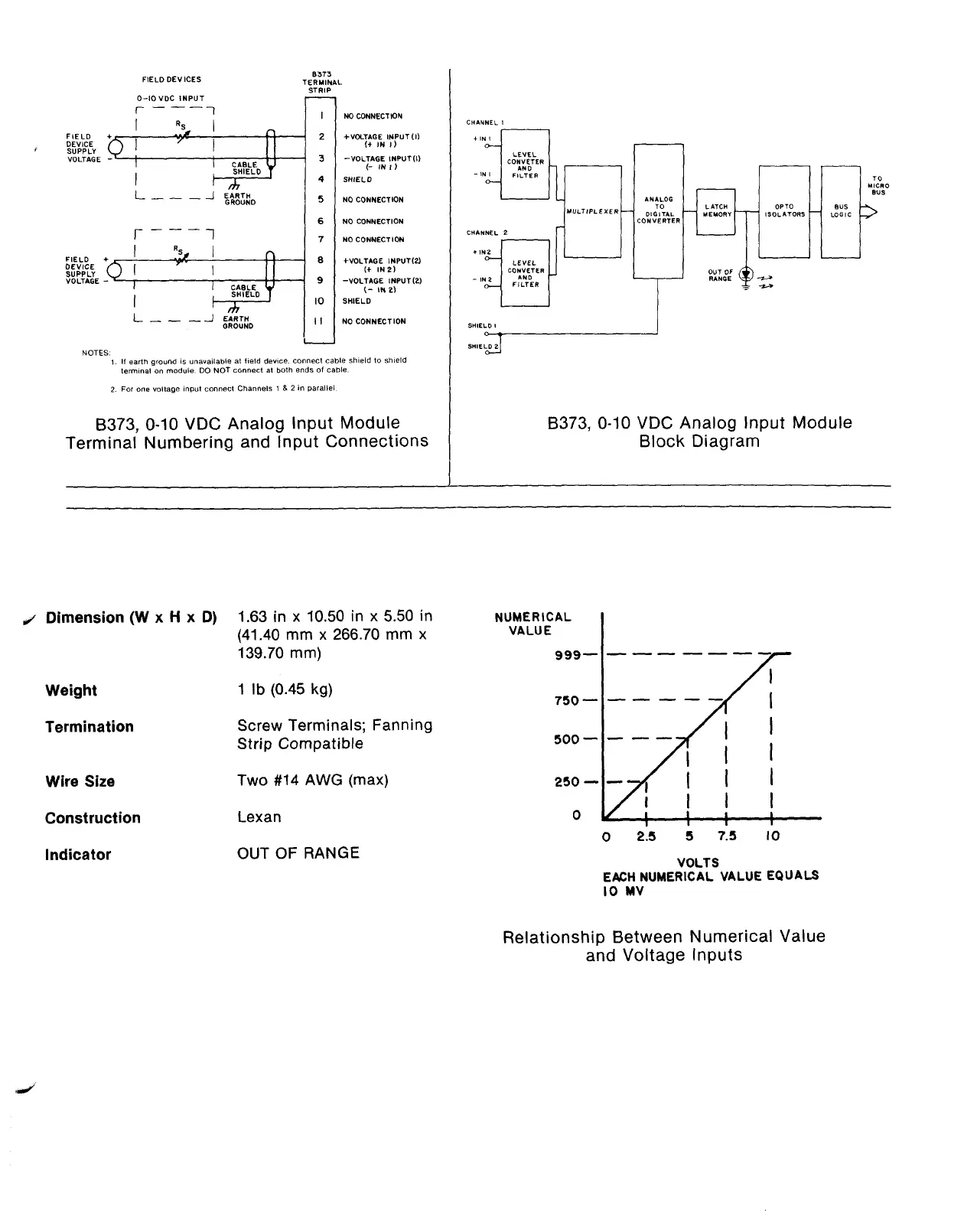

8373, O-10 VDC Analog Input Module
Terminal Numbering and Input Connections
8373, O-10 VDC Analog Input Module
Block Diagram
J Dimension (W x
H x D)
1.63 in x 10.50
in x 5.50 in
(41.40 mm x 266.70 mm x
139.70 mm)
Weight
Termination
1 lb (0.45 kg)
Screw Terminals; Fanning
Strip Compatible
Wire Size
Two #14 AWG (max)
Construction
Indicator
Lexan
OUT OF RANGE
NUMERICAL
VALUE
I
0
2:5
i 7.5 IO
VOLTS
EACH NUMERICAL VALUE EQUALS
IO MV
Relationship Between Numerical Value
and Voltage Inputs
