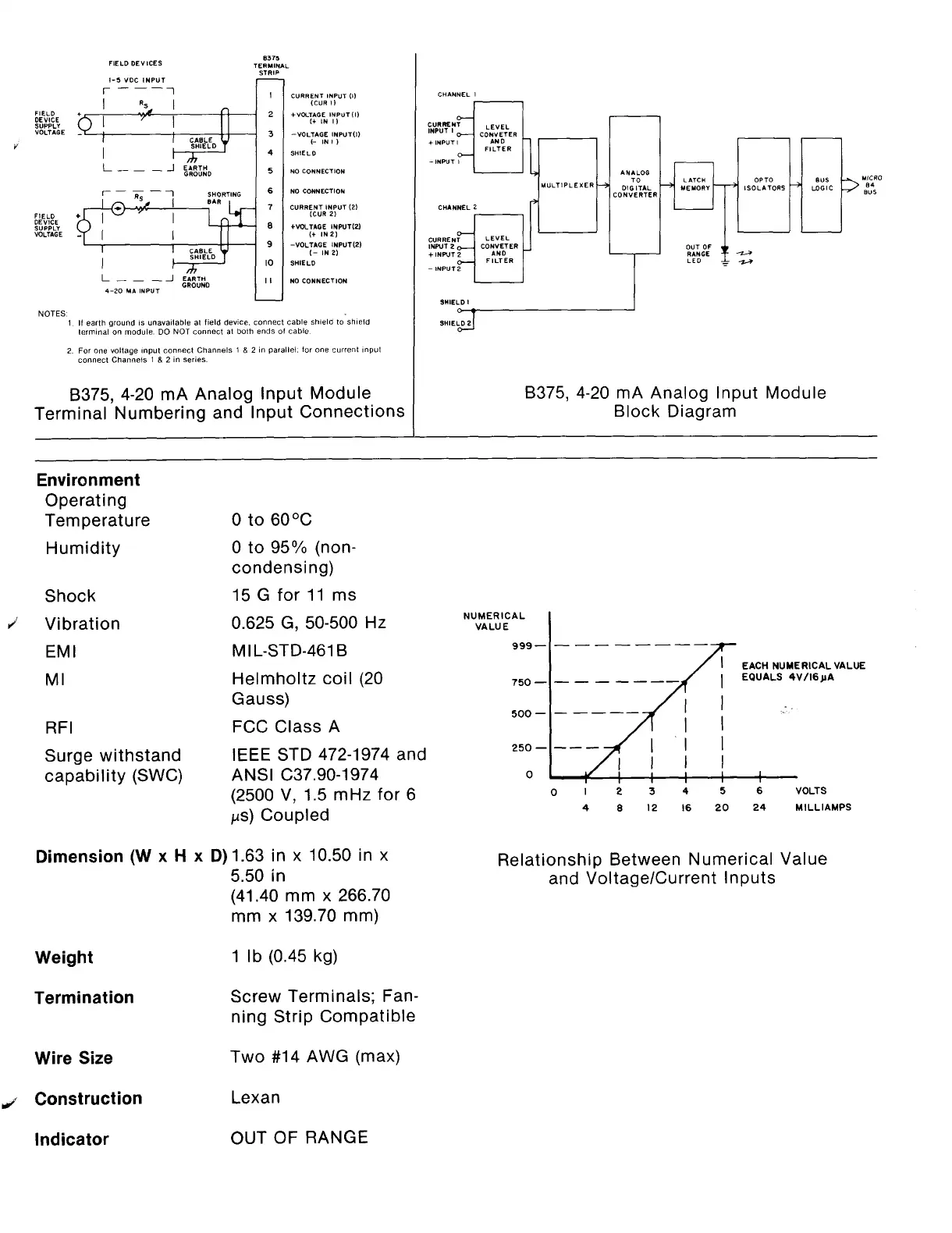

B375, 4-20
mA Analog Input Module
B375, 4-20 mA Analog Input Module
Terminal Numbering and Input Connections
Block Diagram
I
Environment
Operating
Temperature
0 to 60°C
Humidity
0 to 95% (non-
condensing)
Shock
15 G for 11 ms
/
Vibration
0.625 G, 50-500 Hz
EMI
M I L-STD-461 B
Ml
Helmholtz coil (20
Gauss)
RFI
FCC Class A
Surge withstand
IEEE STD 472-1974 and
capability (SWC)
ANSI C37.90-1974
(2500 V, 1.5 mHz for 6
ps) Coupled
Dimension (W x H x D)1.63
in x 10.50 in x
5.50 in
(41.40 mm x 266.70
mm x 139.70 mm)
Weight
Termination
Wire Size
J
Construction
Indicator
1
lb (0.45 kg)
Screw Terminals; Fan-
ning Strip Compatible
Two #14 AWG
(max)
Lexan
OUT OF RANGE
NUMERICAL
VALUE
999 -
750 -
500 -
250 -
0
--A
-----
EACH NUMERICAL VALUE
__-----
EQUALS 4V/l6pA
I
4
2
8
3
12
4
16
5
20
6
24
VOLTS
MILLlAMPS
Relationship Between Numerical Value
and Voltage/Current Inputs
