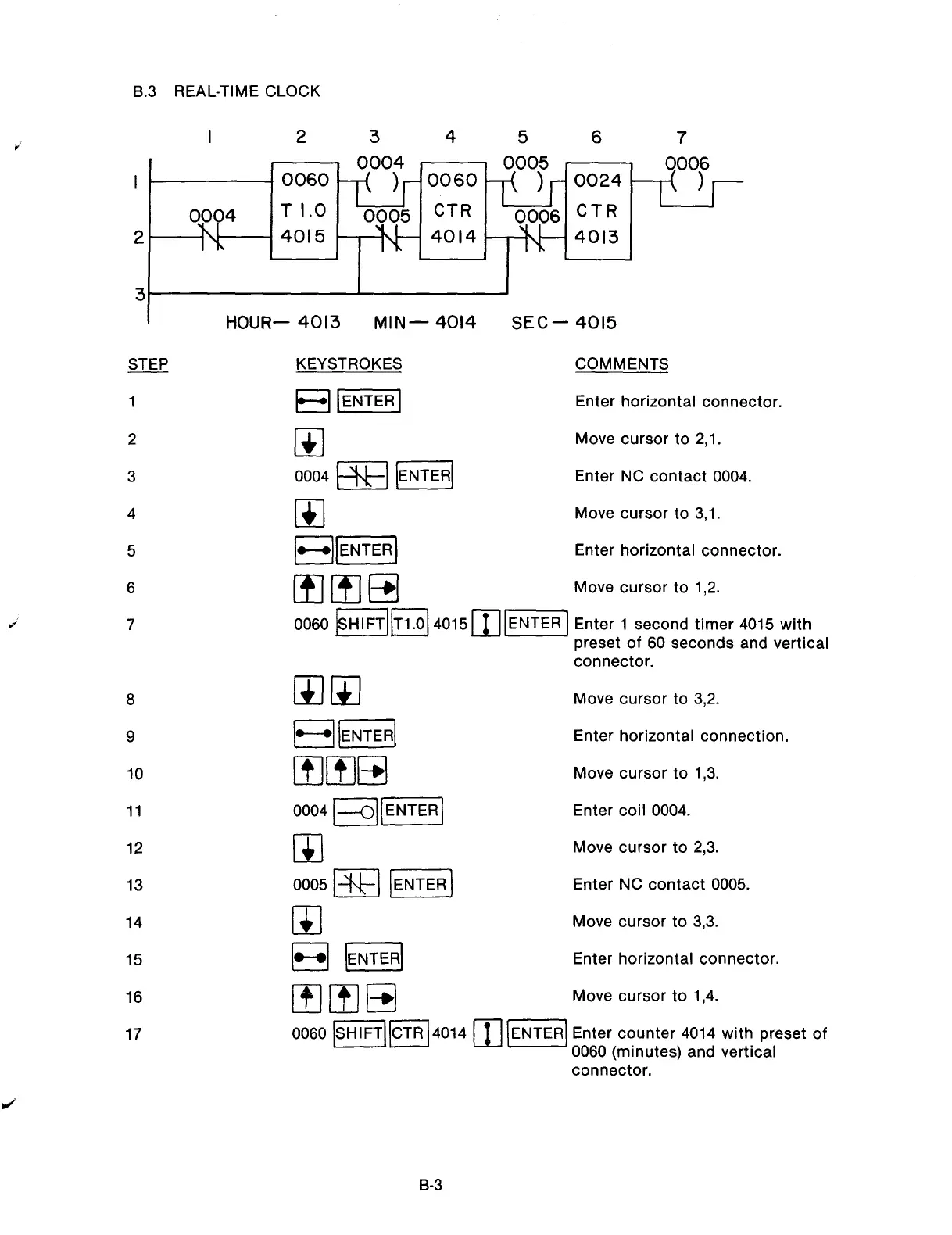

9.3 REAL-TIME CLOCK
i
J
I
2 3
0004
I .
0060
T 1.0
-j-( )r
0004
0005
2.
IX
4015
4 5
6 7
- 0005 .
0006
0060
CTR
--,-( ) 0024 { )
000; CTR
4014
4013
-J
I
STEP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
HOUR- 4013
MIN- 4014 SEC- 4015
KEYSTROKES
COMMENTS
Fl -1
Enter horizontal connector.
Move cursor to 2,l.
Enter NC contact 0004.
Move cursor to 3,l.
Enter horizontal connector.
Move cursor to 1,2.
0060 /SHIFTIF] 4015 m I1
ENTER Enter 1 second timer 4015 with
preset of 60 seconds and vertical
connector.
WI&l
Move cursor to 3,2.
Enter horizontal connection.
Move cursor to 1,3.
0004 [--OI/ENTER)
Enter coil 0004.
Move cursor to 2,3.
Enter NC contact 0005.
Move cursor to 3,3.
Enter horizontal connector.
Move cursor to 1,4.
0060 ~~~14014 El II
ENTER Enter counter 4014 with preset of
0060 (minutes) and vertical
connector.
i
B-3
