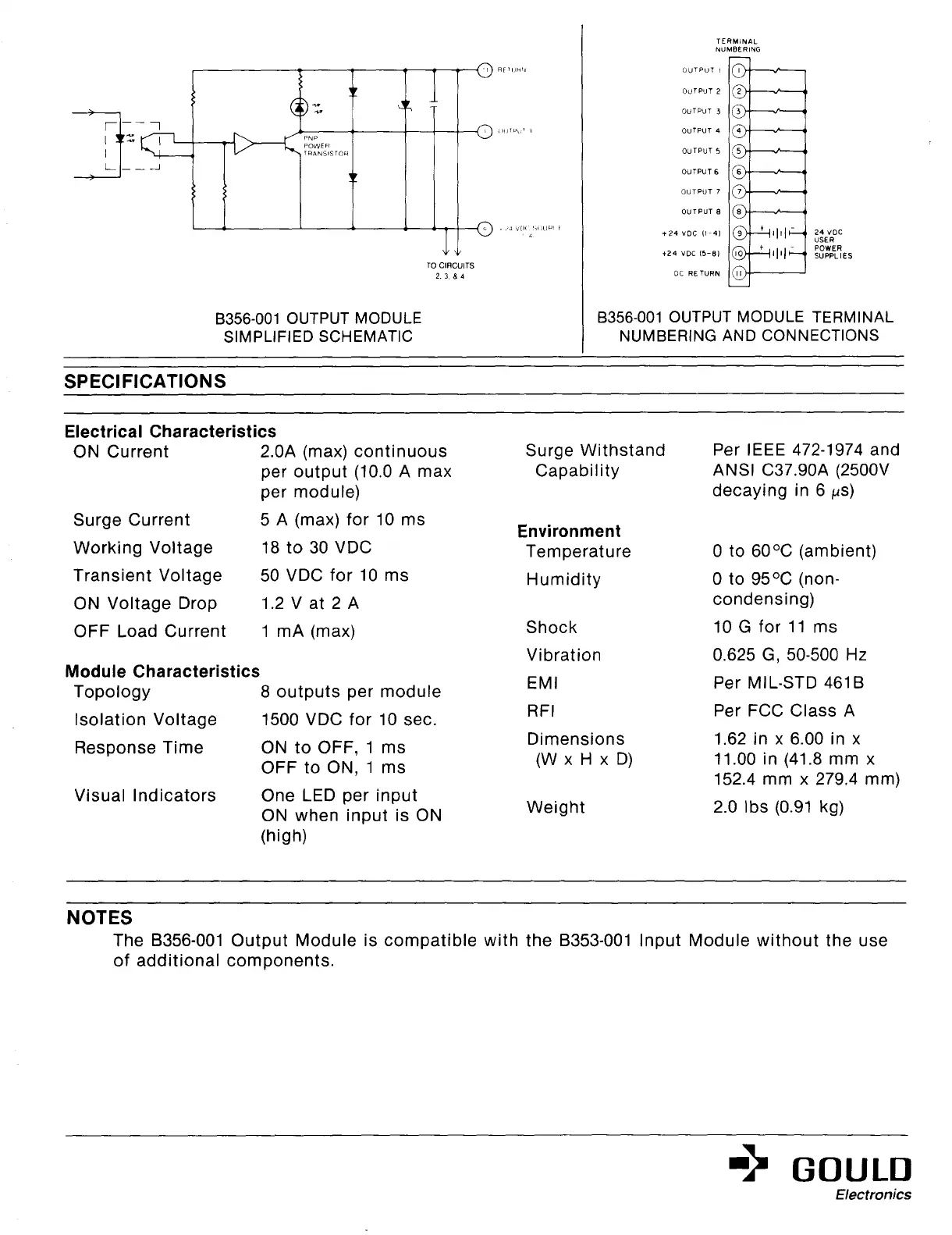

8356-001 OUTPUT MODULE
SIMPLIFIED SCHEMATIC
B356-001 OUTPUT MODULE TERMINAL
NUMBERING AND CONNECTIONS
I
SPECIFICATIONS
Electrical Characteristics
ON
Current
2.OA (max) continuous
per output (10.0 A max
per module)
Surge Current
5 A (max) for 10 ms
Working Voltage
18 to 30 VDC
Transient Voltage
50 VDC for 10 ms
ON Voltage Drop
1.2 V at 2 A
OFF Load Current
1 mA (max)
Module Characteristics
Topology
8 outputs per module
Isolation Voltage
1500 VDC for 10 sec.
Response Time
ON to OFF, 1 ms
OFF to ON, 1 ms
Visual Indicators
One LED per input
ON when input is ON
(high)
Surge Withstand
Capability
Environment
Temperature
Humidity
Shock
Vibration
EMI
RFI
Dimensions
(W x H x D)
Weight
Per IEEE 472-1974 and
ANSI C37.90A (25OOV
decaying in 6 ,US)
0 to 60°C (ambient)
0 to 95OC (non-
condensing)
10G for 11 ms
0.625 G, 50-500 Hz
Per MILSTD 461B
Per FCC Class A
1.62 in x 6.00 in x
11.00 in (41.8 mm x
152.4 mm x 279.4 mm)
2.0 Ibs (0.91 kg)
NOTES
The B356-001 Output Module is compatible with the B353-001 Input Module without the use
of additional components.
=!i!i GOULD
Electronics
