+V SOURCE

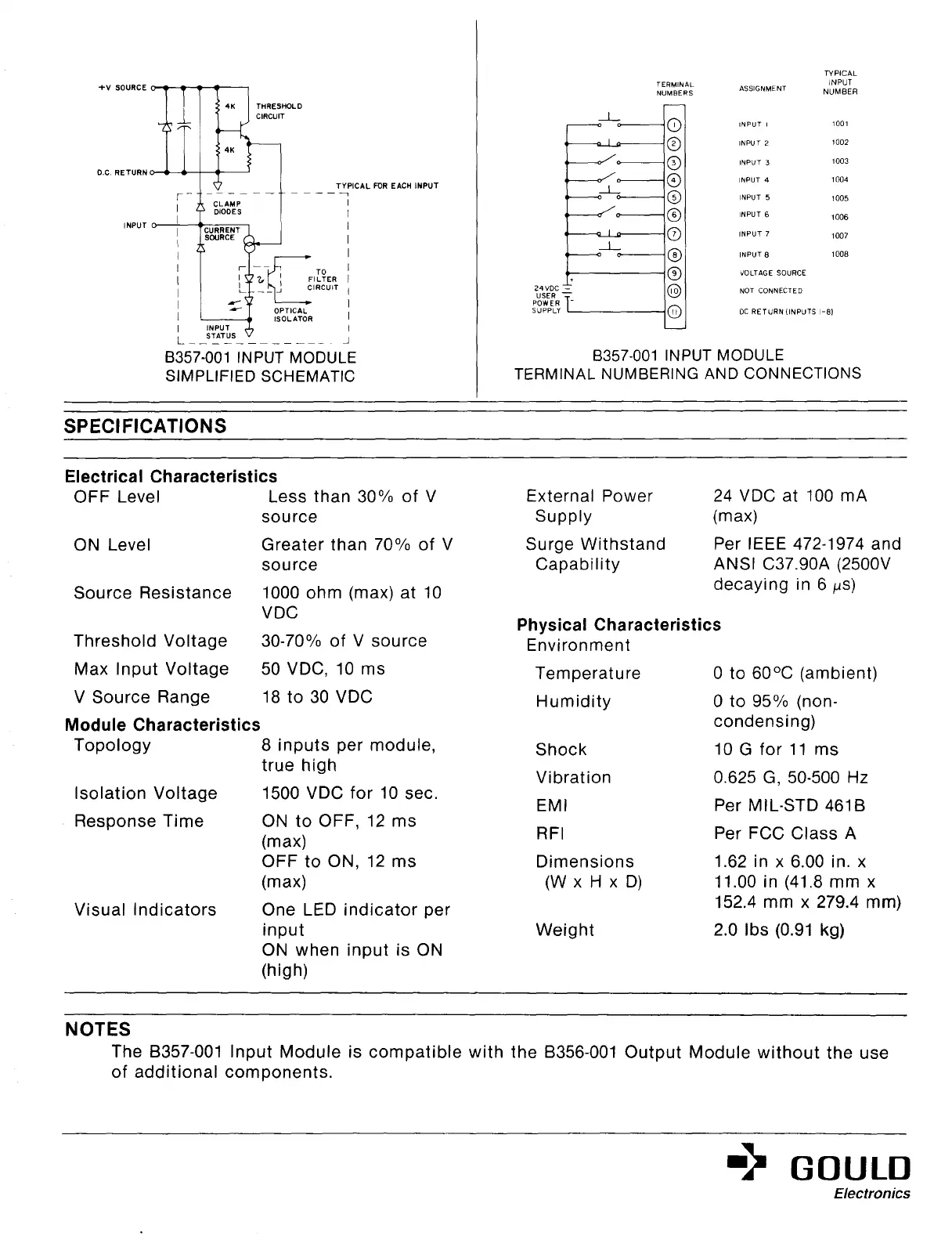

8357401 INPUT MODULE
6357-001 INPUT MODULE
SIMPLIFIED SCHEMATIC
TERMINAL NUMBERING AND CONNECTIONS
SPECIFICATIONS
Electrical Characteristics
OFF Level
Less than 30% of V
source
ON Level
Greater than 70% of V
source
Source Resistance
1000 ohm (max) at 10
VDC
Threshold Voltage
30-70% of V source
External Power
SUPPlY
Surge Withstand
Capability
24 VDC at 100 mA
(max)
Per IEEE 472-1974 and
ANSI C37.90A (25OOV
decaying in 6 ps)
Physical Characteristics
Environment
Max Input Voltage
50 VDC, 10 ms
V Source Range
18 to 30 VDC
Module Characteristics
Topology 8 inputs per module,
true high
Isolation Voltage
1500 VDC for 10 sec.
Response Time
ON to OFF, 12 ms
(max)
OFF to ON, 12 ms
(max)
Visual Indicators One LED indicator per
input
ON when input is ON
(high)
Temperature
Humidity
Shock
Vibration
EMI
RFI
Dimensions
(W x H x D)
Weight
0 to 60°C (ambient)
0 to 95% (non-
condensing)
IO G for 11 ms
0.625 G, 50-500 Hz
Per MIL-STD 4616
Per FCC Class A
1.62 in x 6.00 in. x
11.00 in (41.8 mm x
152.4 mm x 279.4 mm)
2.0 Ibs (0.91 kg)
NOTES
The 6357-001 Input Module is compatible with the 8356-001 Output Module without the use
of additional components.
I)
GOULD
Electronics
