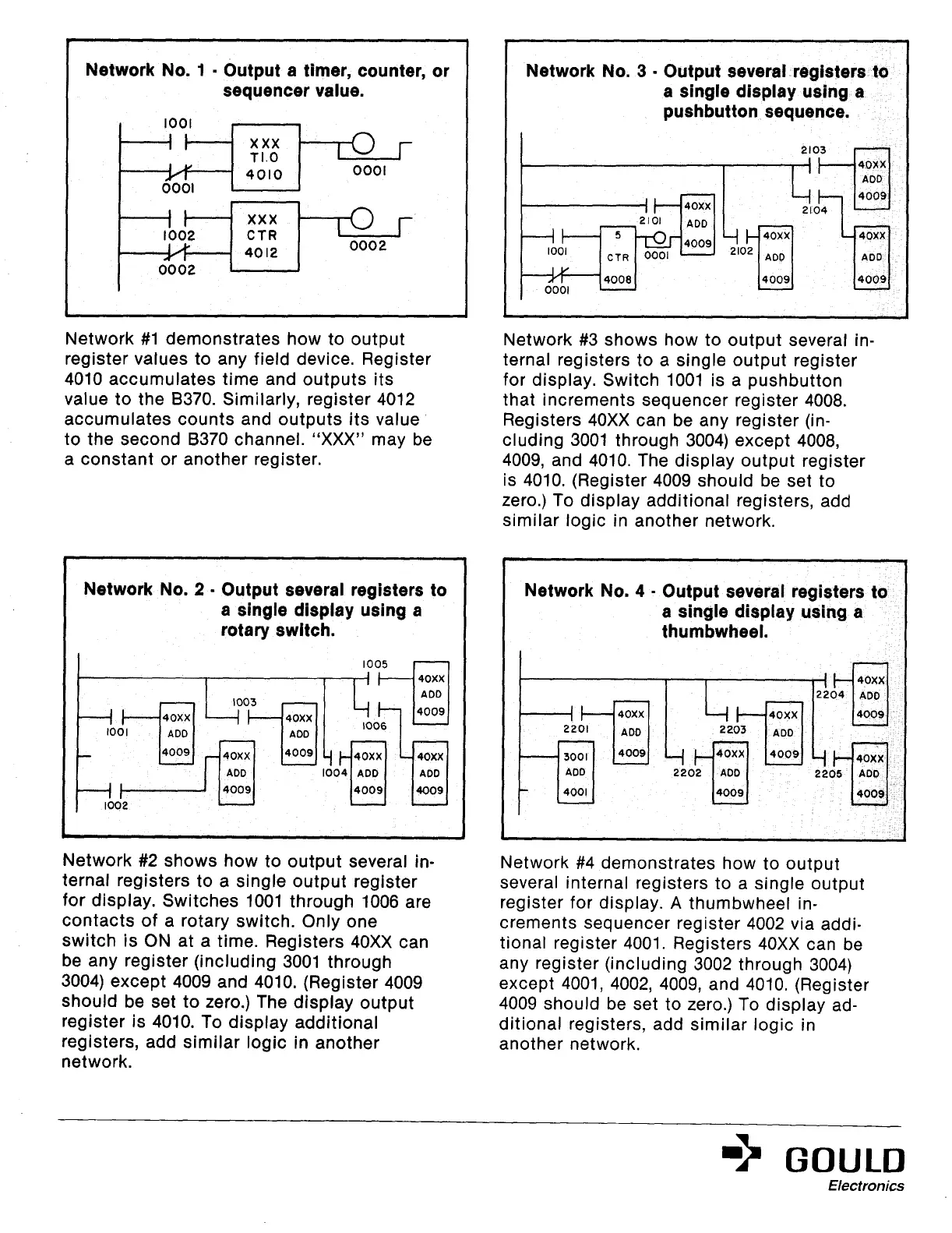

Network No. 1
.
Output a tlmer, counter, or
sequencer value.
1001
I I
xxx
TI.0
10
J
I Y
Yl
4010
0001
0001
I I
I I
xxx
1002 CTR
10 r
IX
XI
4012
0002
0002
Network #l demonstrates how to output
register values to any field device. Register
4010 accumulates time and outputs its
value to the B370. Similarly, register 4012
accumulates counts and outputs its value
to the second B370 channel. “XXX” may be
a constant or another register.
Network No. 2
-
Output several registers to
a single display using a
rotary switch.
I
1005 n
Network No. 3
-
Output several registers to
a single display using a
pushbutton sequence.
IY
XI
4008
0001
-
Network #3 shows how to output several in-
ternal registers to a single output register
for display. Switch 1001 is a pushbutton
that increments sequencer register 4008.
Registers 40XX can be any register (in-
cluding 3001 through 3004) except 4008,
4009, and 4010. The display output register
is 4010. (Register 4009 should be set to
zero.) To display additional registers, add
similar logic in another network.
Network No.
4
=
Output several registers to
a single display using a
thumbwheel.
Network #2 shows how to output several in-
ternal registers to a single output register
for display. Switches 1001 through 1006 are
contacts of a rotary switch. Only one
switch is ON at a time. Registers 40XX can
be any register (including 3001 through
3004) except 4009 and 4010. (Register 4009
should be set to zero.) The display output
register is 4010. To display additional
registers, add similar logic in another
network.
Network #4 demonstrates how to output
several internal registers to a single output
register for display. A thumbwheel in-
crements sequencer register 4002 via addi-
tional register 4001. Registers 40XX can be
any register (including 3002 through 3004)
except 4001, 4002, 4009, and 4010. (Register
4009 should be set to zero.) To display ad-
ditional registers, add similar logic in
another network.
-ii
GOULD
Electronics
