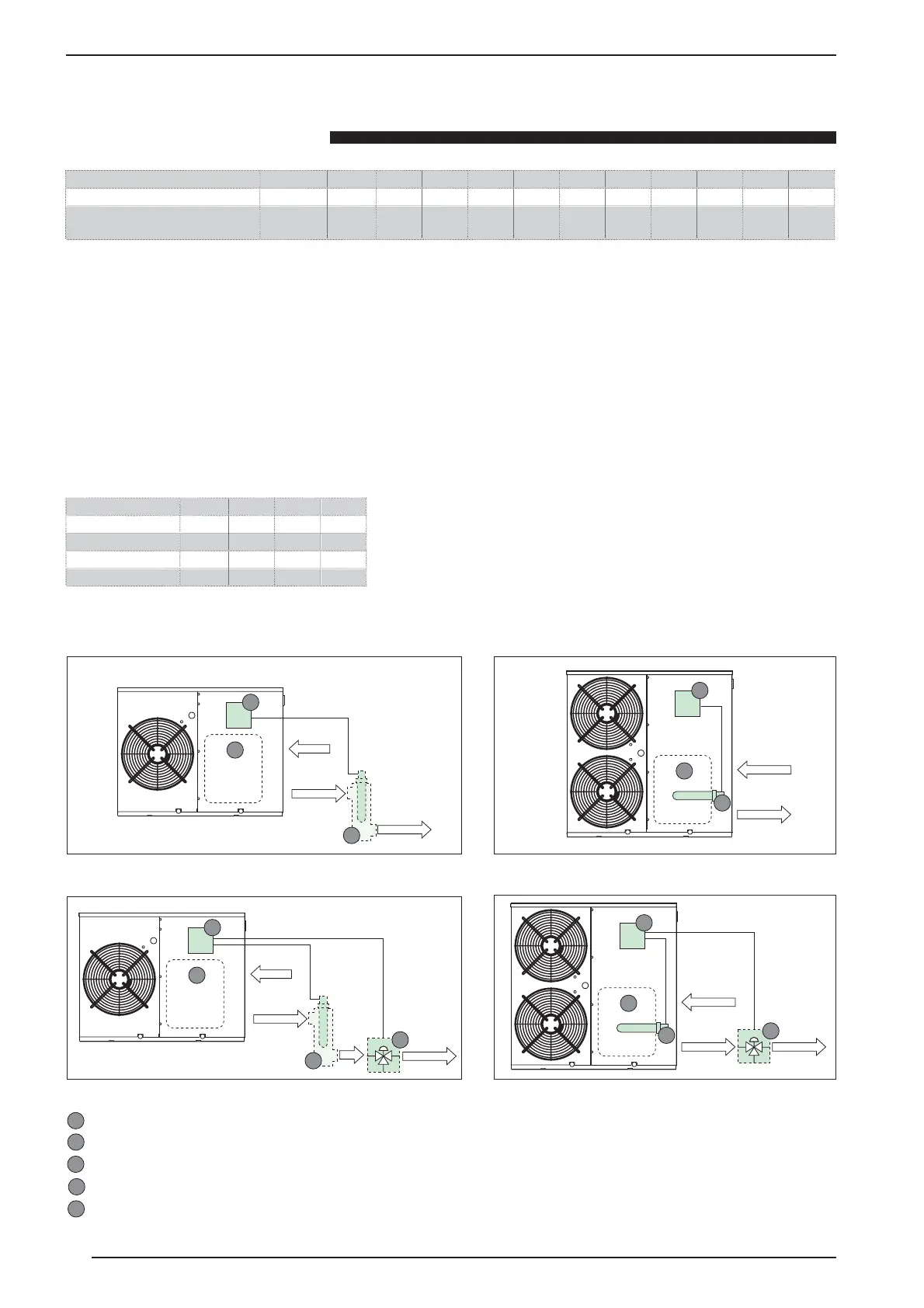

AERMEC ANZ 020 - Electric Absorption and Heater Options; Supplementary Heater Power and Versions; Boiler Kit Accessory Compatibility; System Connection Diagrams

24
IN
OUT
1
2
3
IN
OUT
1
2
3
5
ANZ AK 0507-0807-0907-1007-1507-2007
4
IN
OUT
1
3
ANZ AK 0207-0257-0307-0417
OUT
5
4
IN
1
3
ANZ AJ 0507-0807-0907-1007-1507-2007ANZ AJ 0207-0257-0307-0417
Accessory compatibility table: (BKW)
ANZ K/J
0207 0257 0307 0417
BW4KW230

BW4KW400

BW5KW230

BW5KW400

Versions with electric heater
Electric absorption
Version U.M. 0207 0257 0307 0417 0507 0807 0907 1007 1507 2007
Supplementary heater AK/AJ kW 4
(1)
4
(1)
5
(1)
5
(1)
6810131820
Total input power in heater
system
AK/J kW 6,6 6,7 8,3 8,8 10,9 13,2 17,1 22,9 29,7 34,5
The ANZ units are available in
versions equipped with supplementary
heaters; these versions are identified
by the letters K and J. Both versions
are equipped with a circulation pump,
an accumulation tank and a control
system that manages the supplementary
heater. The supplementary heaters are
housed within the accumulation tank
for the units from size 0507 up to 2007;
for the remaining units, the relative
accessory (supplied separately) is to
be installed externally, at the expense
of the user. The running of the heater
is given over to an integrated control,
on the basis of the temperature of the
water and the outside temperature. In
the AK versions, a basic control is used,
and this switches on the heater when
requested by the control logic. The AJ
versions are supplied with an advanced
control which, apart from enabling the
supplementary heater on the basis of
the outside temperature, can operate
a three-way valve (not supplied) for
applications with radiant panels.
(1)
for these models, the heater is not supplied, but is available as an accessory
5
1
2
3
4
Checking
Supplementary heater
Accumulation
Three-way valve
(2)
External supplementary heater
KEY:
(2)
the three-way valve is not supplied
WARNING: the K and J versions are pre-set for
the use of a supplementary heater, but this does
not substitute the anti-frost heaters (supplied as an
accessory RA, KR).
B4KW230 = Boiler kit 4 KW electrical heating element 230V power supply.
B4KW400 = Boiler kit 4 KW electrical heating element 400V power supply.
B4KW230 = Boiler kit 5 KW electrical heating element 230V power supply.
B5KW400 = Boiler kit 5 KW electrical heating element 400V power supply.
