22. RECEIPT OF THE PRODUCT AND INSTALLATION
22.1. RECEIPT AND HANDLING
The machine is sent from the factory wrapped with
estincoil placed on a pallet.
Before handling the unit, verify the lifting capacity of
the machines used.
Handling must be performed by qualified, suitably
equipped staff.
22.2. HANDLING THE MACHINE:
Whenever the machine must be lifted using belts,
place protections between the belts and the
framework to prevent damage to the structure.
Insert pipes (NOT SUPPLIED) in the pre-arranged holes
(NRP 0200 - 0700) long enough to allow fixing of lifting
belts.
NRP 0750 units are supplied with eyebolts; they must
be lifted using suitable belts hooked to all the installed
eyebolts.
22.2.1. LIFTING STANDARDS
1. All panels must be tightly fixed before moving
the unit;
2. before lifting, check the specific weight on the
technical plate;
3. use all, and only, the lifting points indicated;
4. use ropes in compliance with Standards and of
equal length;
5. use a spacer beam in compliance with Standards
(not included);
6. handle the unit with care and without sudden
movements.
It is prohibited to stop under the unit during lifting
operations.
- The machine must always be kept in a vertical
position.
- The instructions found on the machine are an
integral part of the same. They must be read and kept
carefully.
- ATTENTION: The units CANNOT be stacked.
22.3. SELECTION AND PLACE OF
INSTALLATION
The NRP air/water OUTDOOR heat pump with gas side
conversion (R410A) is sent from the factory already
inspected and only requires electric and hydraulic
connections in the place of installation.
Before beginning the installation process, decide with
the client where the unit is to be installed, whilst
paying attention to the following:
1. The support surface must be capable of
supporting the unit weight.
2. The safety distances between the units and other
appliances or structures must be scrupulously
respected.
3. The unit must be installed by a qualified
technician in compliance with national laws in the
country of destination.
4. It is mandatory to foresee to the necessary
technical space in order to allow ROUTINE AND
EXTRAORDINARY MAINTENANCE interventions.
5. Remember that during operation, the chiller can
cause vibrations; therefore "VT" anti-vibration
mounts (ACCESSORIES) are recommended, fixed
on the base according to the assembly layout.
6. Fix the unit checking that it is level.
800
mm
1100 mm
800
mm
800
mm

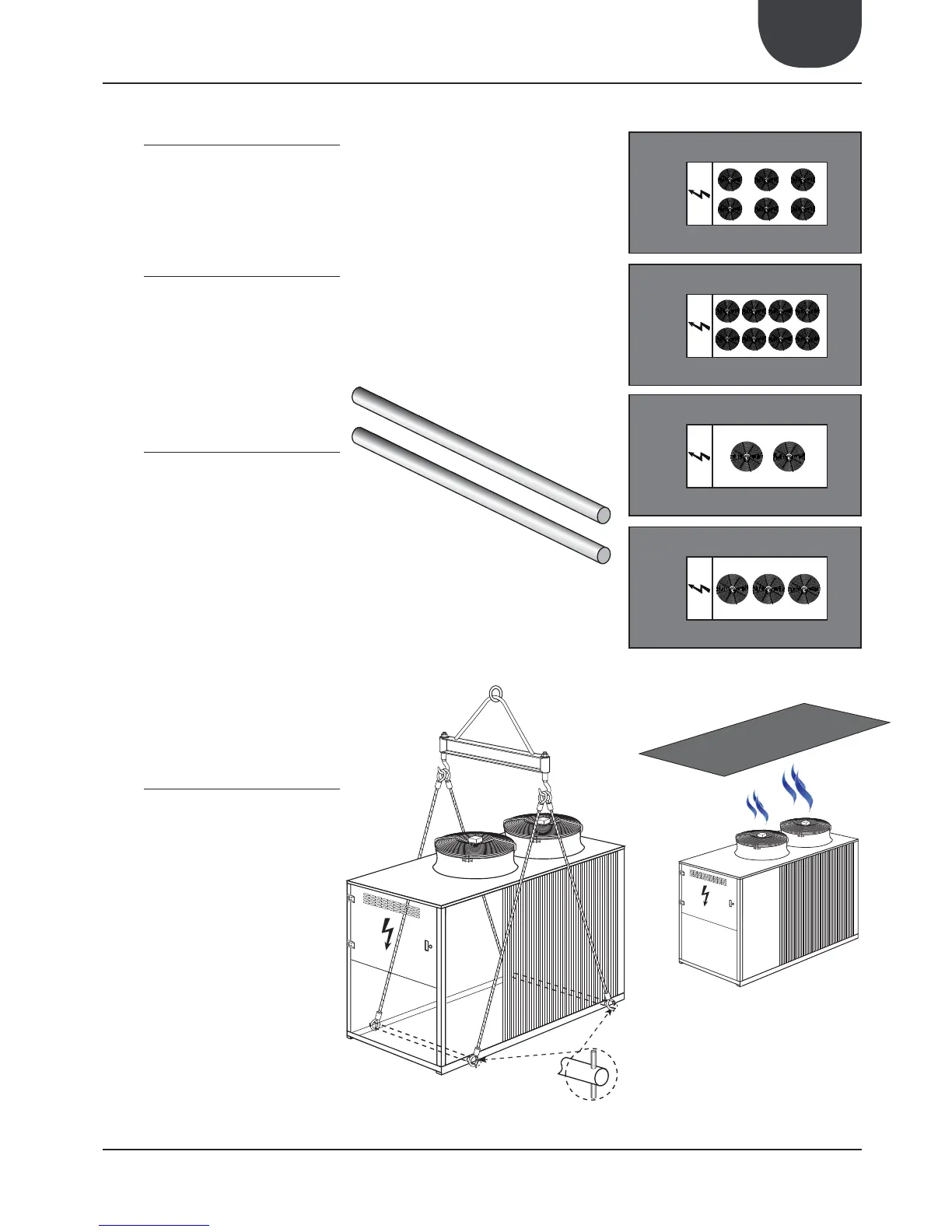

NRP 0200-0240-0300
800
mm
1100 mm
800
mm
800
mm
800
mm
1100 mm
800
mm
800
mm
800
mm
1100 mm
800
mm
800
mm
NRP 0300-0330-0350
NRP 0500-0550-0600-0650
NRP 0700-0750
ATTENTION
Lifting poles not supplied
3.000 mm
ø hols
40 mm
