AERMEC SC1200 User Manual

22
N(1)
2 3
L1 L2 L3 N
N(1)
2 3
XT2XT1
XT1
Unit Suggested Thermomagnetic switch (not provided ) (*)
SC1200 16A
Wire Use Cable type Notes Maximum length
A
Indoor unit power cable 4x1mm
2
Cable not provided 25m
B
Outdoor unit power cable 5x2.5mm
2
Cable not provided 15m

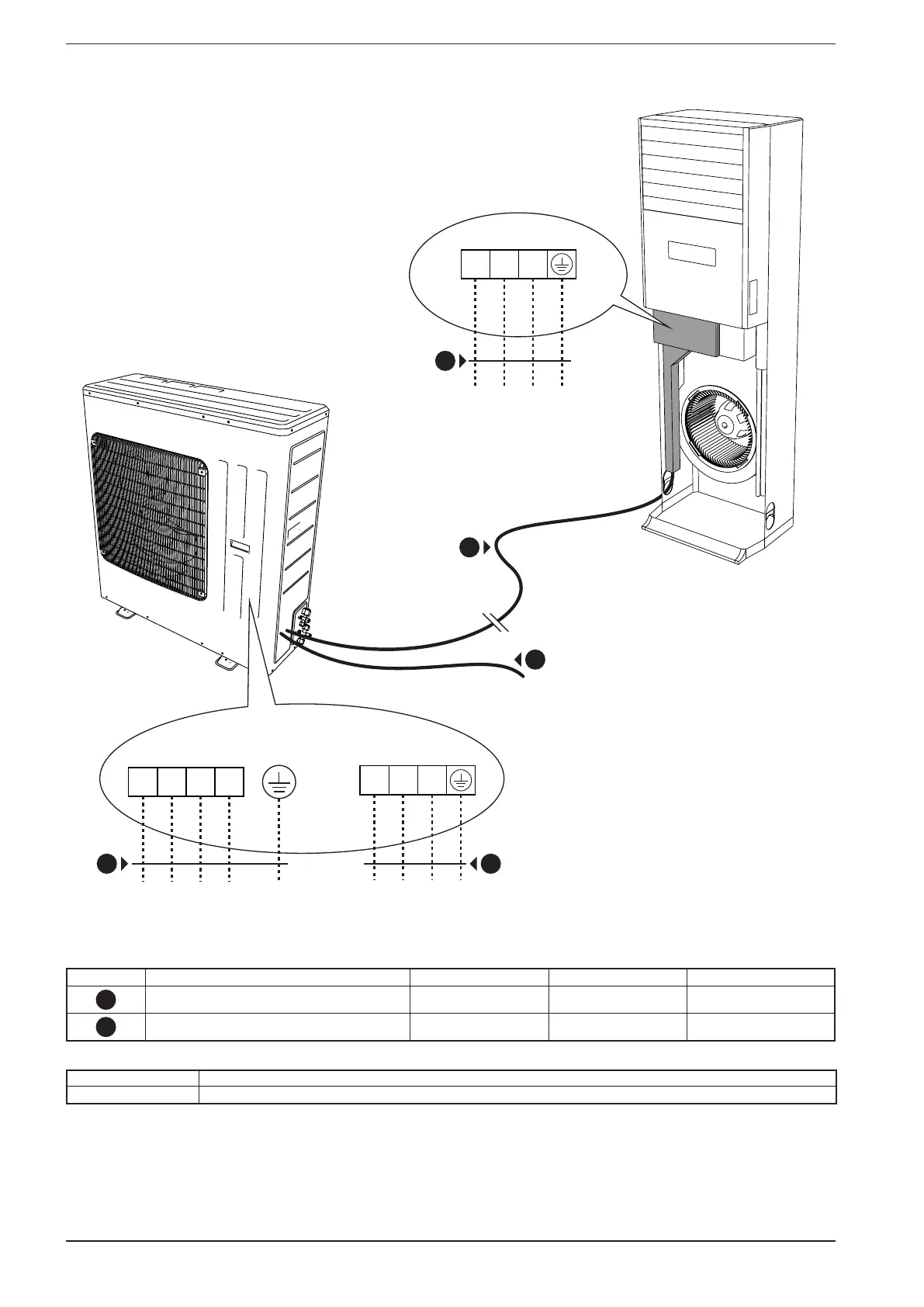

Electrical wiring connecting the indoor and the outdoor unit
(*): the value indicated in the table represents a suggested value; The sizing of the thermomagnetic switch must be in accordance with national
laws and regulations.
To the Outdoor unit
(220V~240V 50Hz)
Power Supply
(380-415V~3N 50Hz)
380-415V~3N 50Hz
INDOOR UNIT
(220-240V~50Hz)
A
B
A
AB
