MAINTENANCE MANUAL
IFR 6000
2-2-3
Page 38
Aug 1/06
(22) ADSB Receive DF17 and DF20– Squitter Period
TEST EQUIPMENT: RF Generator
2 ARB Generators
Oscilloscope
Computer with Tera Term Pro and Intuilink software
6000 Breakout Box
VERIFICATION FAILURE: If any step in this procedure fails or is out of tolerance,
this indicates a failure in the Test Set. Refer to
Troubleshooting for corrective action.
STEP PROCEDURE
1. Make the coax connections as shown in Figure 13, using Aux 1.

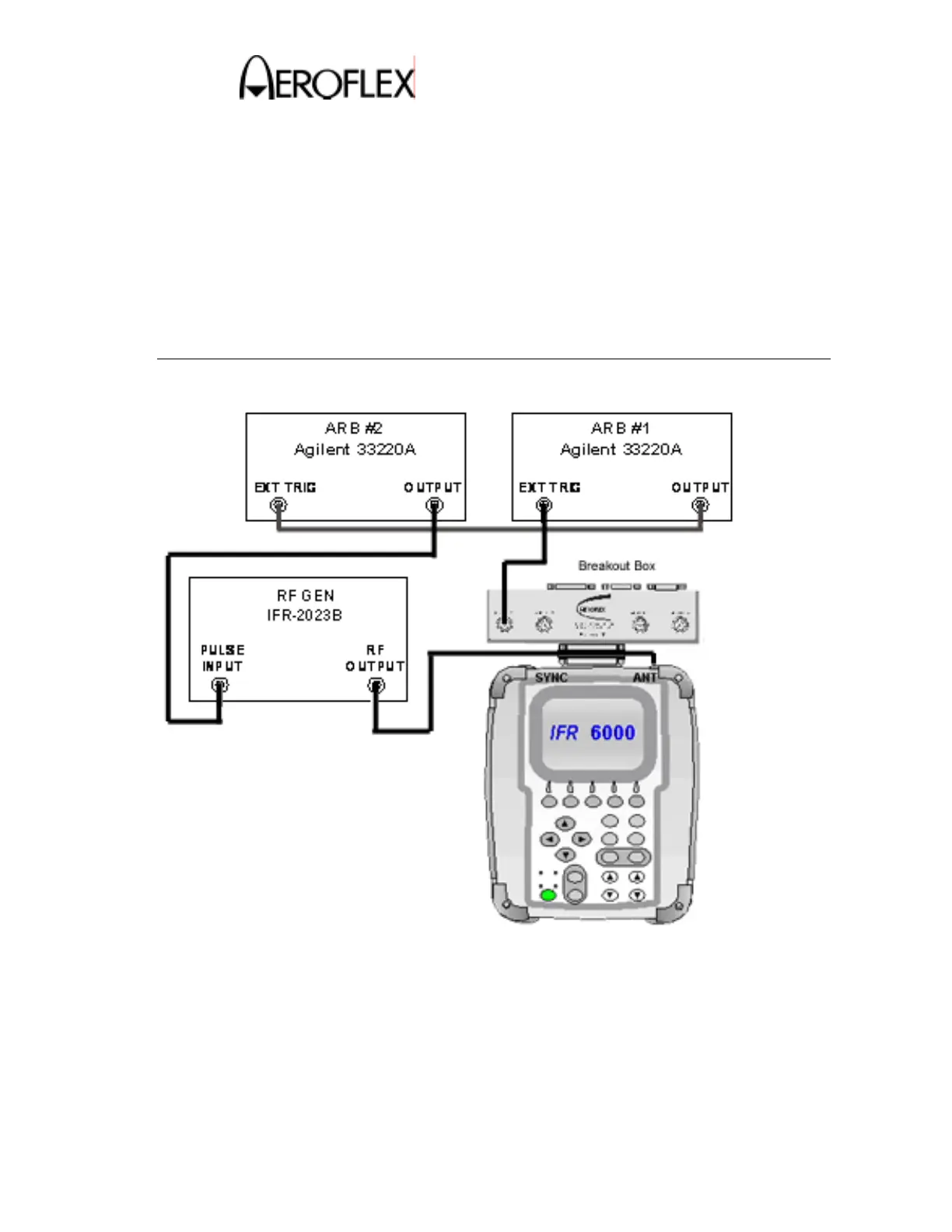

ADSB Receive DF17 and DF20– Squitter Period Test Connection
Figure 13
2. Set the RF Generator to –10 dBm @ 1090 MHz, external pulse modulation.
3. Set UUT for GENERIC MODE S and press the SETUP key to display the SETUP-
XPDR screen.
