MAINTENANCE MANUAL
IFR 6000
2-2-3
Page 30
Aug 1/06
(18) XPDR Measurement - Reply Accuracy - ATCRBS
TEST EQUIPMENT: RF Generator
2 ARB Generators
Oscilloscope
Computer with Tera Term Pro and Intuilink software
6000 Breakout Box
VERIFICATION FAILURE: If any step in this procedure fails or is out of tolerance,
this indicates a failure in the Test Set. Refer to
Troubleshooting for corrective action.
STEP PROCEDURE
1. Make the coax connections as shown in Figure 12.

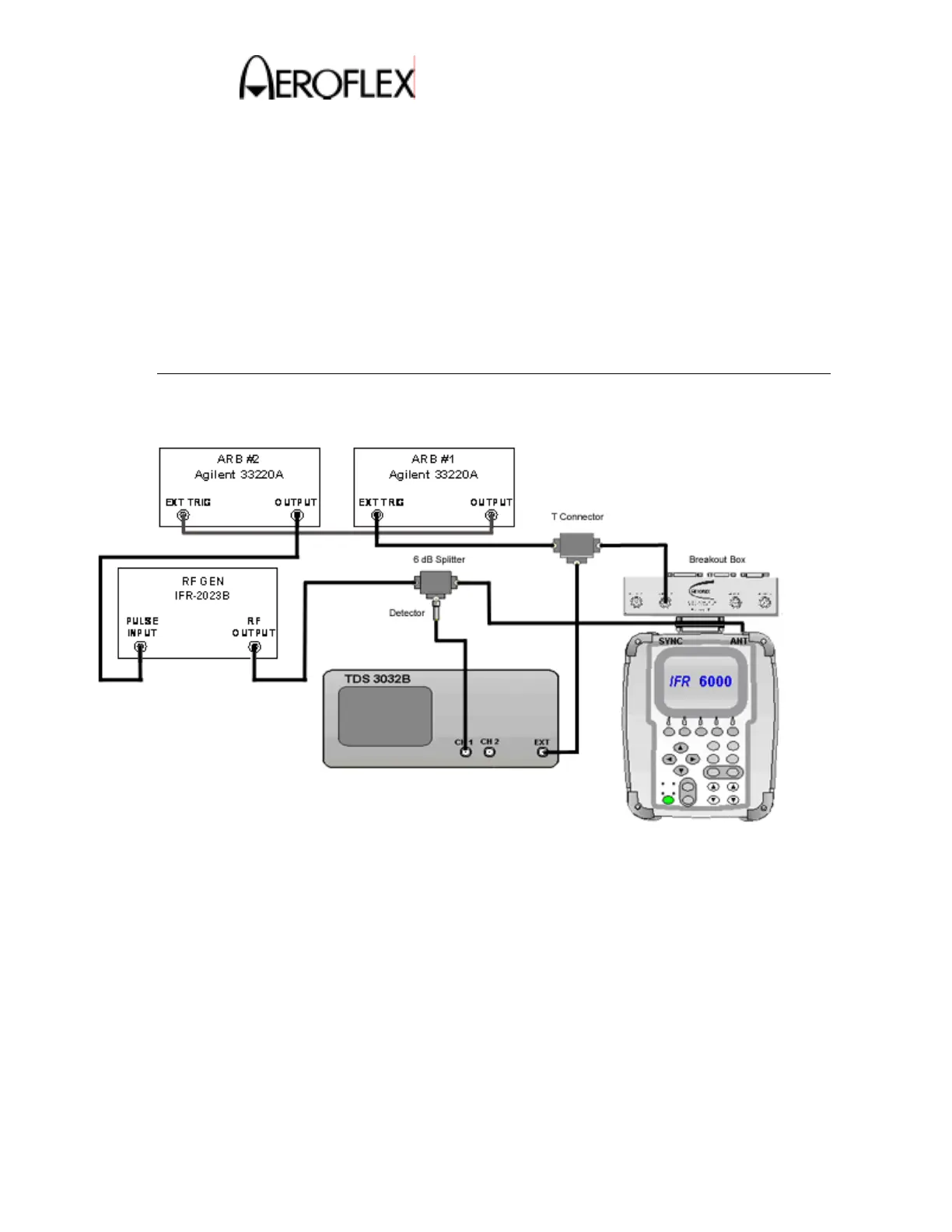

XPDR Measurement - Reply Accuracy - ATCRBS Test Connection
Figure 12
2. Set the RF Generator to –10 dBm @ 1090 MHz, external pulse modulation.
3. Press the SETUP key to display the SETUP-XPDR screen.
4. Verify the RF PORT shows ANTENNA. If necessary, change it to ANTENNA and
select BOTTOM ANTENNA.
5. Set the ANT RANGE to 12ft. and ANT HEIGHT to 1ft. for the BOTTOM
ANTENNA.
6. Press the XPDR key to display the XPDR screen and verify the UUT shows
GENERIC ATCRBS on the XPDR-AUTO TEST.
7. Press the TEST LIST Soft Key to display the XPDR-TEST LIST screen.
To Next Page
