AFi LOREENA - Angular Rotor Afi-Rhd3

Originale Instructions- Rev.1.3 User Maunal– Loreena 59/ 68

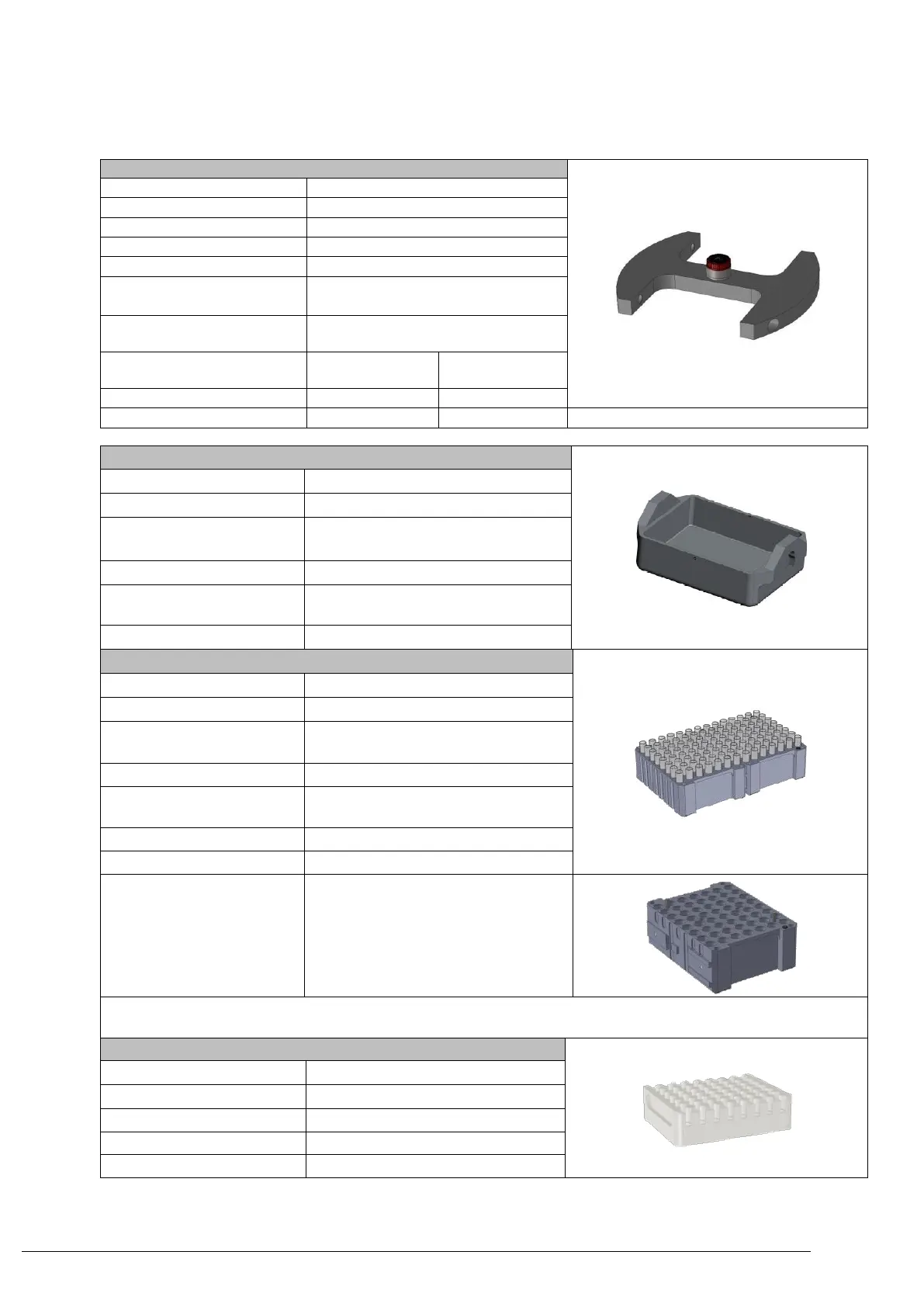

9.4. Angular Rotor AFI-RHD3
Rotor and accessories only available on the "VT" series, according to the following references:
 AFI-C300RE-VT
 AFI-C300R-VT
 AFI-C300RFE-VT
 AFI-C300RF-VT
Rotor
Part number:
AFI-RHD3
Description:
Swinging Bucket Rotor
Maximum capacity:
2x 3 kg
Fastening:
ClickSpin system
Maximum rotor speed
3700 rpm (With AFI-BHD3 carriers)
Maximum centrifugal force of
the rotor
2510 xg (With AFI-BHD3 carriers)
Lifetime
30 000 cycles
(6 years)
Centrifuge performance
Maximum speed
Maximum
centrifuge Force
AFI-C300 Ventilated
Not affected
Not affected
AFI-C300 Refrigerated
3700 rpm
2510 xg
Accessories
Microplate carriers (Set of 2)
Part number:
AFI-BHD3
Description:
Microplate carrier
Capacity standard
Microplates
56x 5 ml tubes
Maximum capacity :
1900 g
Lifetime
30 000 cycles
(6 years)
Radius
161 mm
Adapter (Sets of 2 adapters / Pack of 4 matrix)
Part number:
AFI-3TD5
Description:
Veterinary Adapters pack
Adapter
Made of 2x joined matrices, fixed by
slide "dovetail" & magnet
Adapter capacity
112 tubes
Adapter Dimensions (LxlxH)
174.5 x 266.25 x 57 mm
(Joined matrices dimension)
Radius (*)
164 mm
Rotor capacity
224 tubes
Single Matrix detail
56x 5 ml tubes
BD Vacutainer Type
8x7 tubes, Ø 13.5 mm
174.5 x 134.5 x 57 mm,
matrix of 18.9 mm gap
(*)Radius corresponds to the distance between the center of rotation and the bottom of the tube adapter housing, the
nacelle being in horizontal position (centrifugation position).
Automatic Tube Opening (Set of 2)
Part number:
AFI-3TD5-E
Description:
Automatic Tube Opening System
Adapter capacity
56x 5 ml tubes
Rotor capacity
112x 5 ml tubes
Cap compatibility
Incoming & Outgoing
