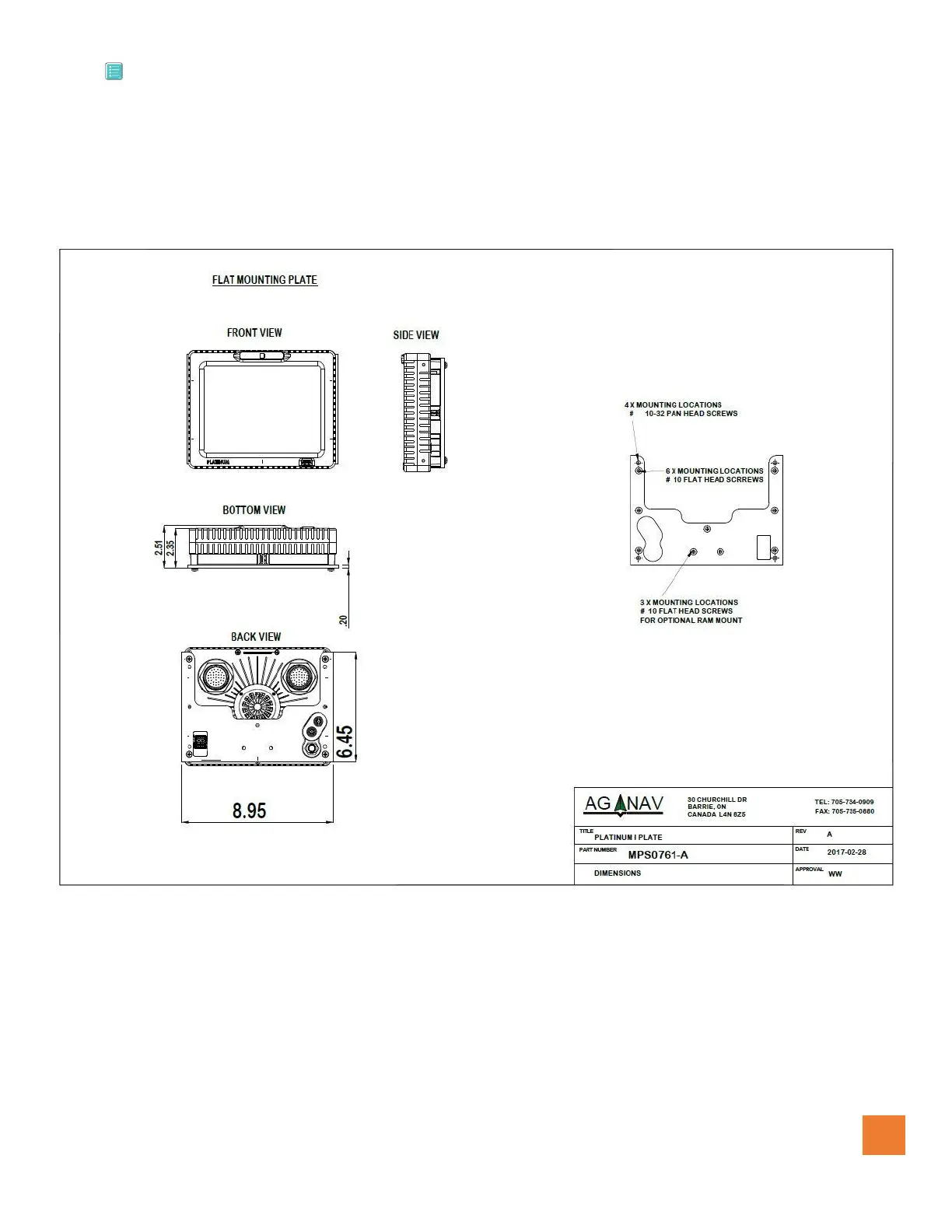

2.1.3 Mounting Plate Bracket
The mount plate is typically used to mount the console on to the air craft custom approved mounting bar or via ram
mount. Other location can be used following FAA or TRANSPORT CANADA regulation. The bracket mount to the back
of the console with 10-32 1/2 stainless steel hardware and then to the aircraft using approved hardware.
Figure #24
