2.5.8 Connecting the wiring harness

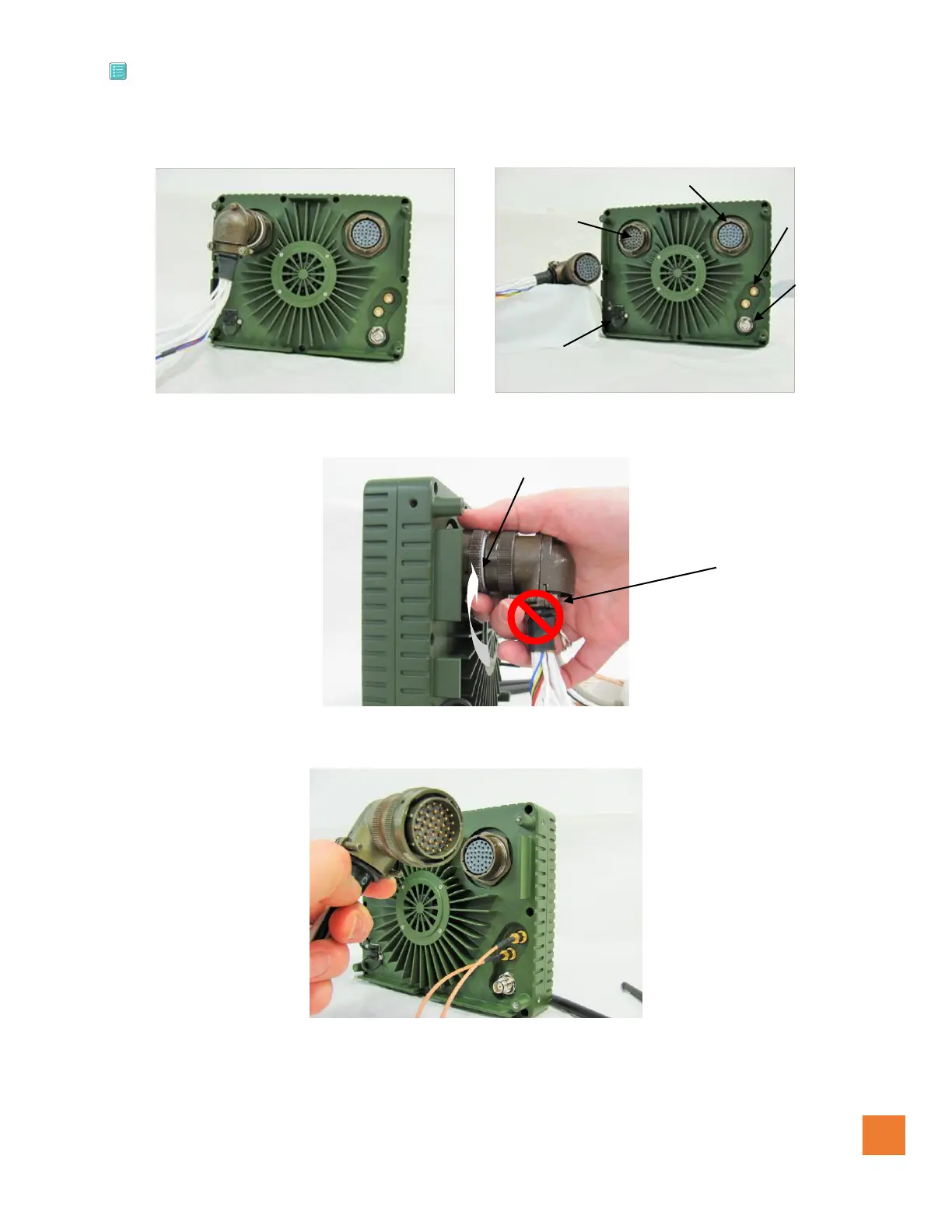

The system has five connectors on the back with two USB ports. The main harness pin connector, an Auxiliary socket
connector, two WIFI antenna connectors and an internal TNC antenna connector. These are shown in Figure #46.
Main Harness Cable Main Harness Connection
Figure #42 Figure#43
Main Harness Connection
Figure #44
Auxiliary Cable
Figure #45
Do not rotate
connector housing
Rotate ring clock wise to
tighten.
Main pin
connector
Aux socket
connector
WIFI
Connectors
Antenna
connector
USB
Ports
