3. Setup Testing
3.1 Platinum setup test procedures
The installation check list must be completed before starting the setup testing procedure. During this
procedure, the platinum test module will be used. This is found on the main page of the platinum shown below
(Platinum Main Page).

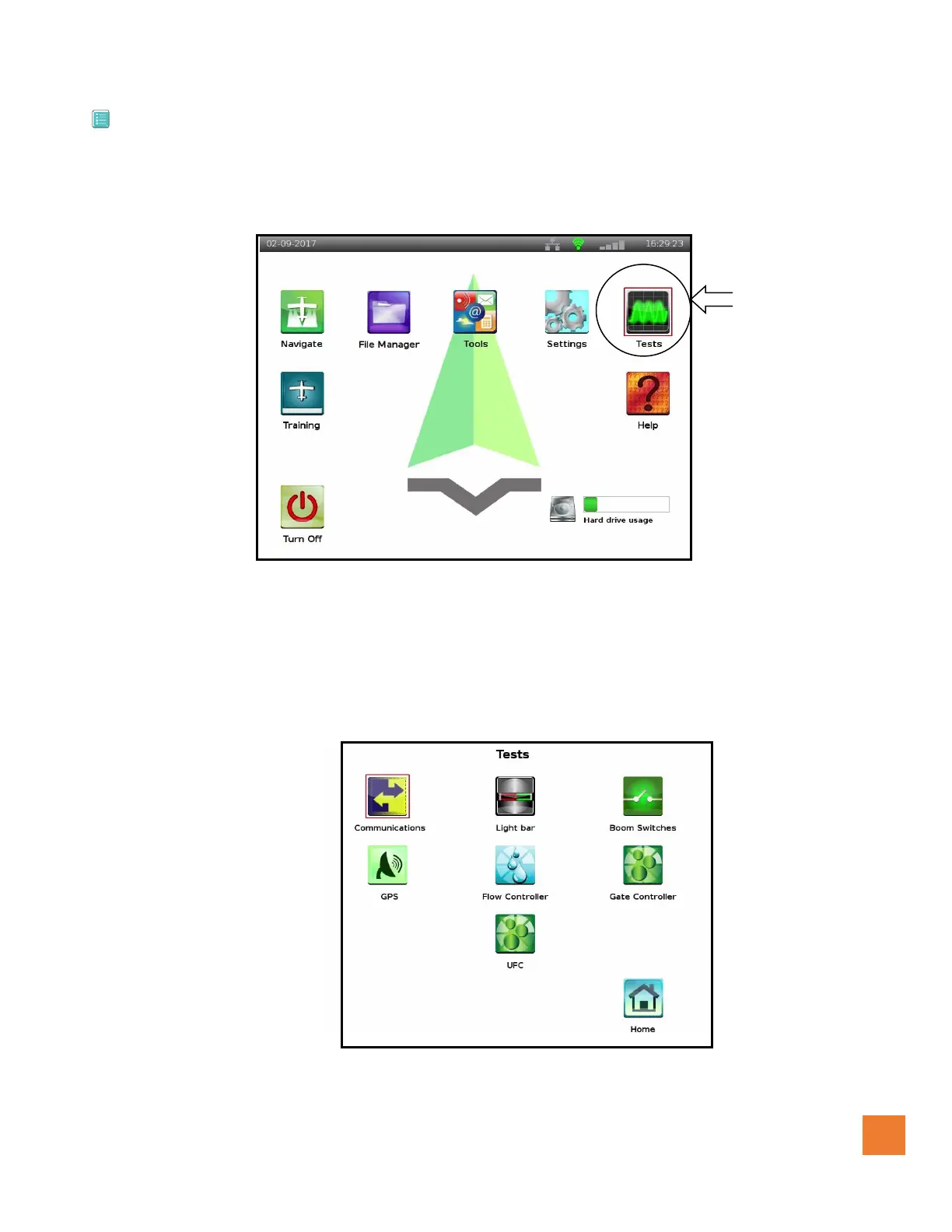

Platinum main page
Figure #50
Each module will help with various operation including troubleshooting. The Communication module will test all ports
and interfaces. The Light bar module will test the operation of the guidance bar. The boom switch module will test the
booms operation. The flow controller, gate controller and UFC modules provide testing and virtual functional interface.
The test module offers testing of the following items as shown below (Test Page):
• Communications
• Light Bar
• Boom Switch
• GPS Receiver
• Flow Controller
• Gate Controller
• UFC
Test page
Figure #51
Test icon
