2.3 Guidance Installation
Guidance bar mounting location is a matter of pilot preference following FAA or Transport Canada regulations.

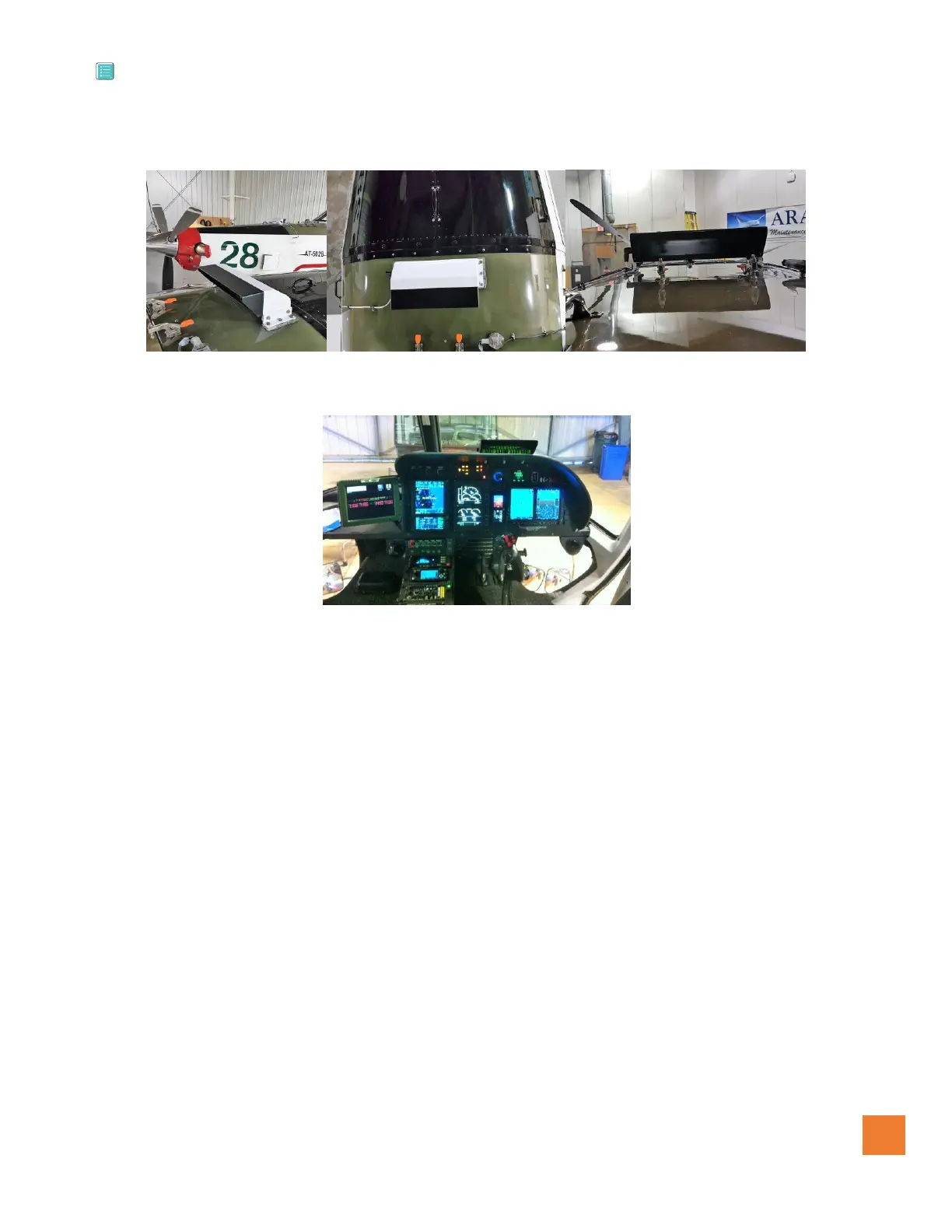

External light bar
Figures #31 – 32
Internal light bar
Figure #33
The external light bars are designed for external use only and the internal lightbars are designed for internal
usage only. Best practise is to have the guidance bars mounted with in line of sight for the pilot but not
hindering forward visual in any way. If need be a fabricated suitable approved bracket can be used to mount
the unit in a chosen location. If possible, avoid drilling into the hopper or the hopper stiffeners.
Please use the following drawing information and dimensions for the various guidance bar installation. Agnav
is not responsible for any installation beyond the installation manual or improper installation.
