2.5 Cables and Electrical Connections
Aircraft Battery must be disconnected during installation.
Secure all cables every six inches using MS3367-1 tie wraps or equivalent. All cables are supplied pre-
assembled, well-marked and ready for installation. Cable connectors are matched to corresponding panel
connectors on the units and are designed with unique pin configurations to fit only in their required positions.
After installation insure that excess cable is coiled up and clamped or tied safely out of the way of any control
cables, fuel lines or any moving parts as to FAA or TRANSPORT CANADA regulation.
2.5.1 Breaker
Install a new 5 Amp circuit breaker for the console (platinum computer) system (12 – 24 V D.C.) power supply
in a conventional location.
Please Note that this breaker is for the console system only, if have flow system see Flow installation manual
for information.
2.5.2 Connecting Power cable
Connect the WHITE wire of the POWER IN CABLE (Positive) to the new circuit breaker. Connect the BLACK
wire of the POWER IN CABLE (Negative) to a good airframe grounding point as shown below (figure#38).

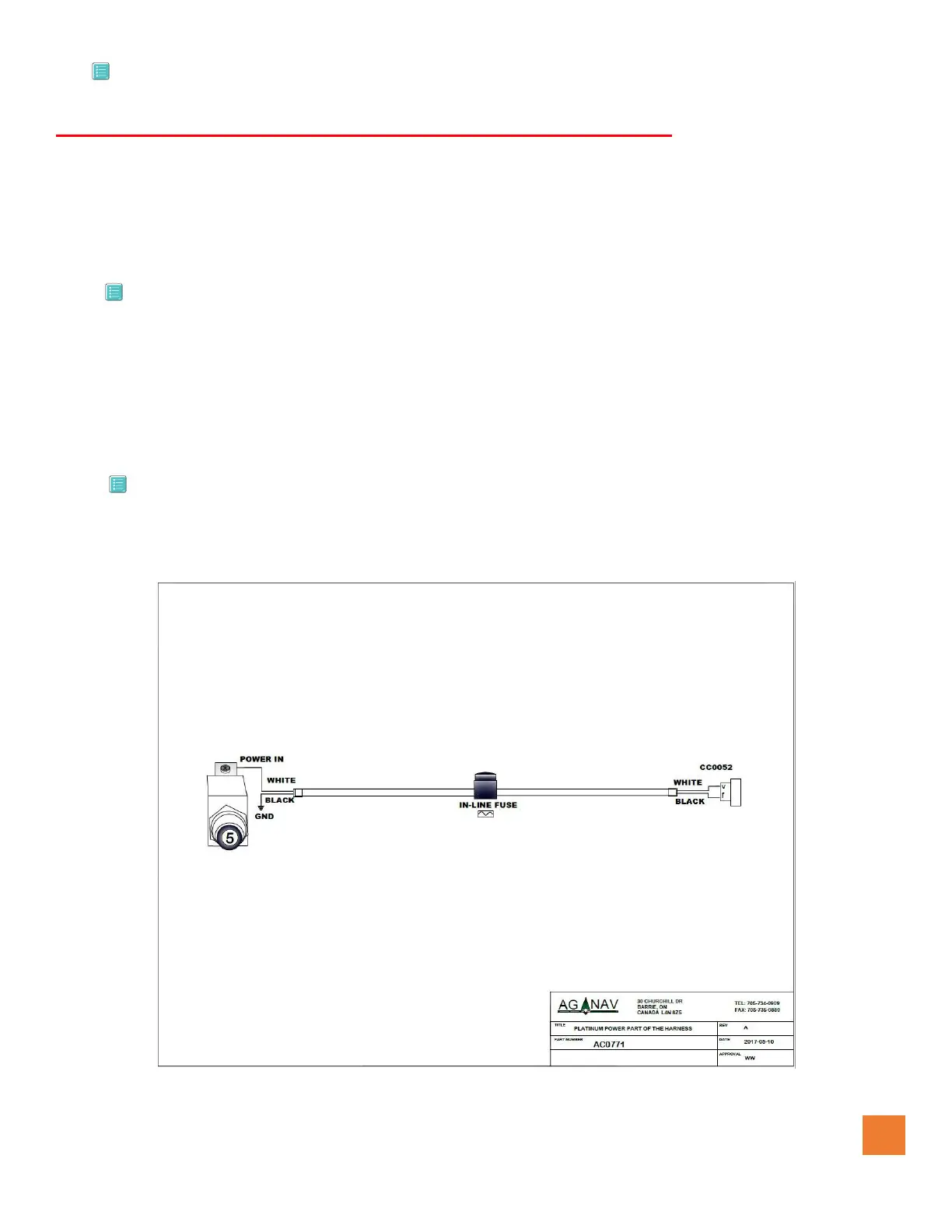

Platinum power cable
Figure #38
