2.2 GPS Receiver Installation

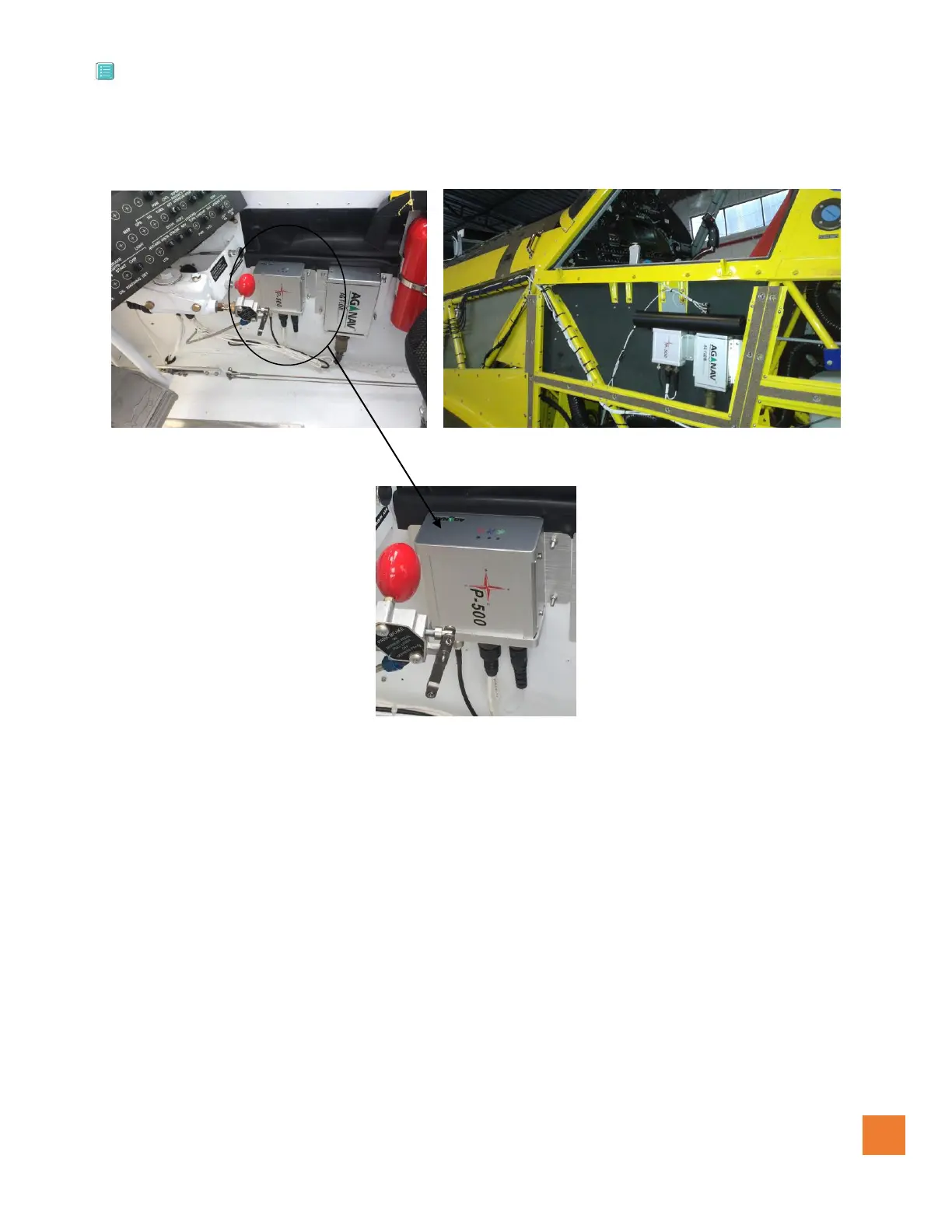

The GPS receiver can be mounted somewhere in the cockpit or in the storage compartment as shown below
(cockpit and frame installation images). Although the unit is sealed it is best to keep it dry.
Cockpit Installation Frame installation
Figure #27 Figure #28
Exploded view
Figure# 29
The GPS receiver has three led lights located on the front of the panel which provide different indication colors
(Red (power), Blue (GPS Signal), Green (Communication)). These led colors should be visible for testing and
variation of operation. Use the mounting brackets attached to the unit to mount as shown below (figure #27).
