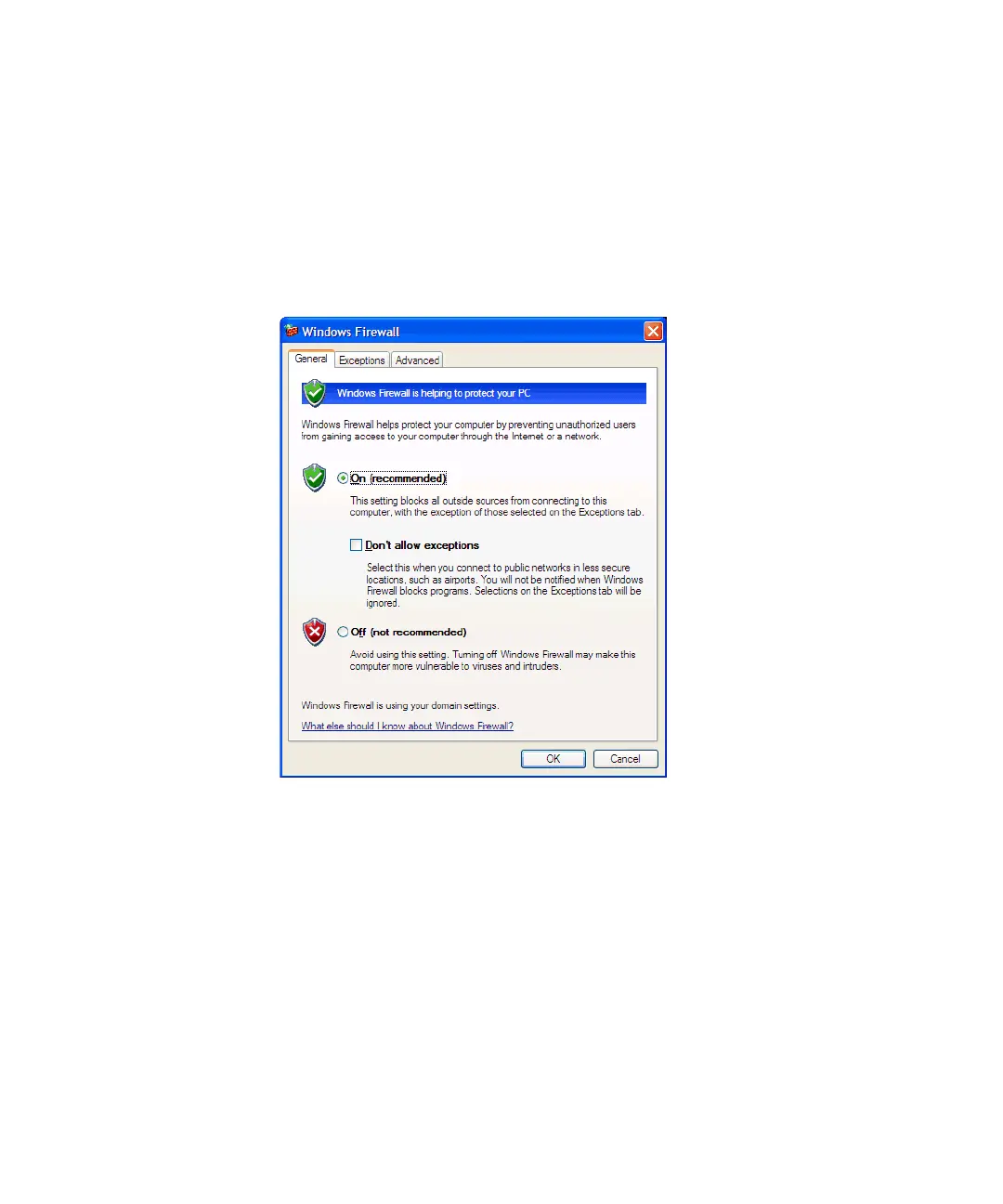

Chapter 5: Troubleshooting

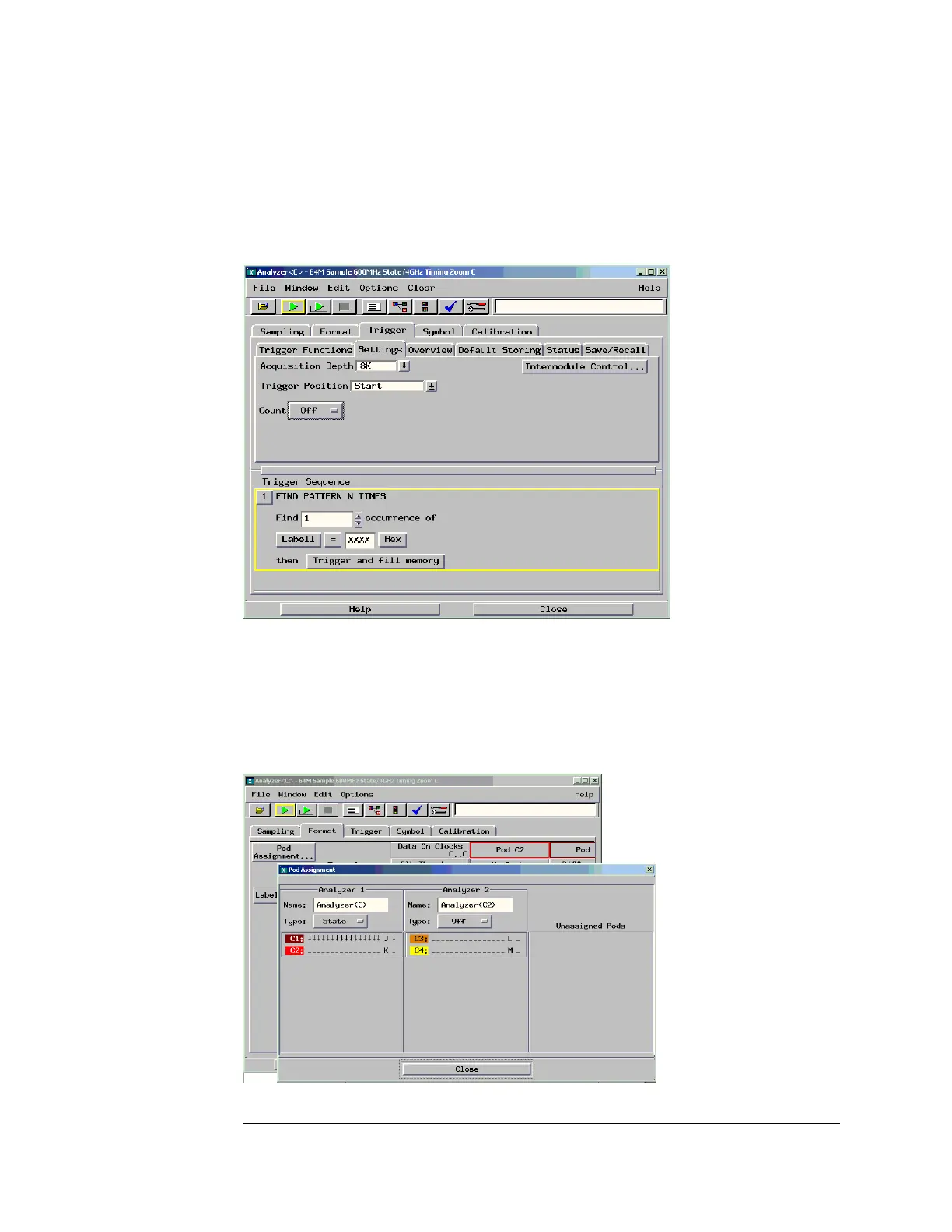

d Under the Trigger tab, select the Settings subtab.
e Select the Acquisition Depth field, then select 8K.
f Select the Trigger Position field, then select Start.
g Select the Count field, then select Off.
6 Configure the Format tab
a In the logic analyzer Setup and Trigger window, select the Format tab.
b Under the Format tab, select Pod Assignment.
c In the Pod Assignment window, use the mouse to drag the pod under
test to the Analyzer 1 column.
