Service Guide 4
Agilent 35670A Supplement 17

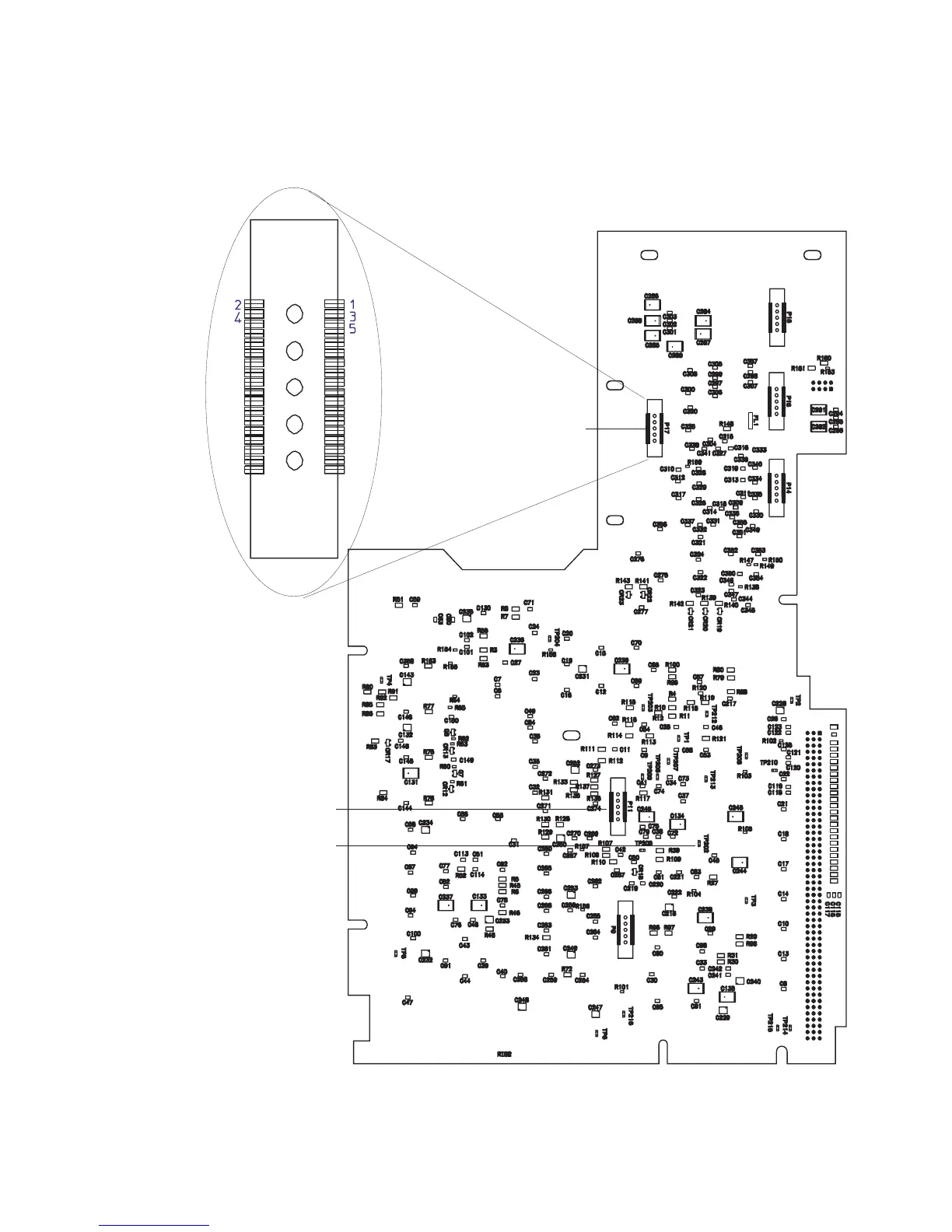

Figure 5 A17 CPU board test point locator
P17
P11
TP202
Pin-out common
to all 36-pin
connectors
