Service Guide 4
Agilent 35670A Supplement 33
Replaceable Parts
Assemblies
Reference designator A17 replaces A7, A8 and A9. There is also
a replacement motherboard, bezel assembly, display assembly
and DC- DC converter assembly.
Page in original guide 7-4

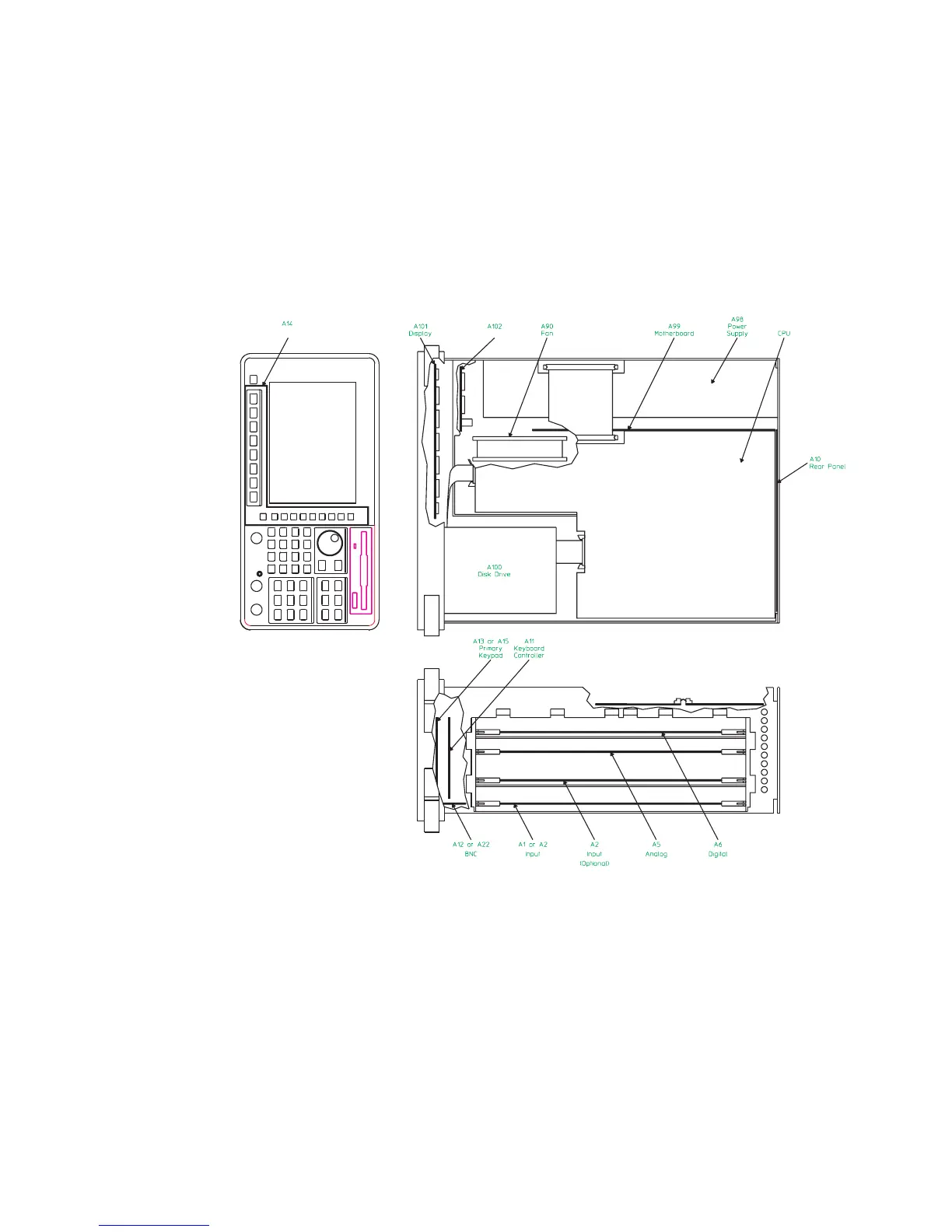

Figure 15 Assemblies
Ref Des Agilent Part Number Description
A17 35670-66517 CPU ASSEMBY
A99 35670-66598 MOTHERBOARD
A14 35670-64320 BEZEL ASSEMBLY
A101 2090-0881 VGA DISPLAY ASSEMBLY
A102 35670-66525 INVERTER ASSEMBLY
Power Inverter
A17
Bezel Assembly
To Next Page
