Service Guide 4
Agilent 35670A Supplement 35
Front Panel Parts
Three parts have been replaced and a new one added:
Page in original guide 7-9

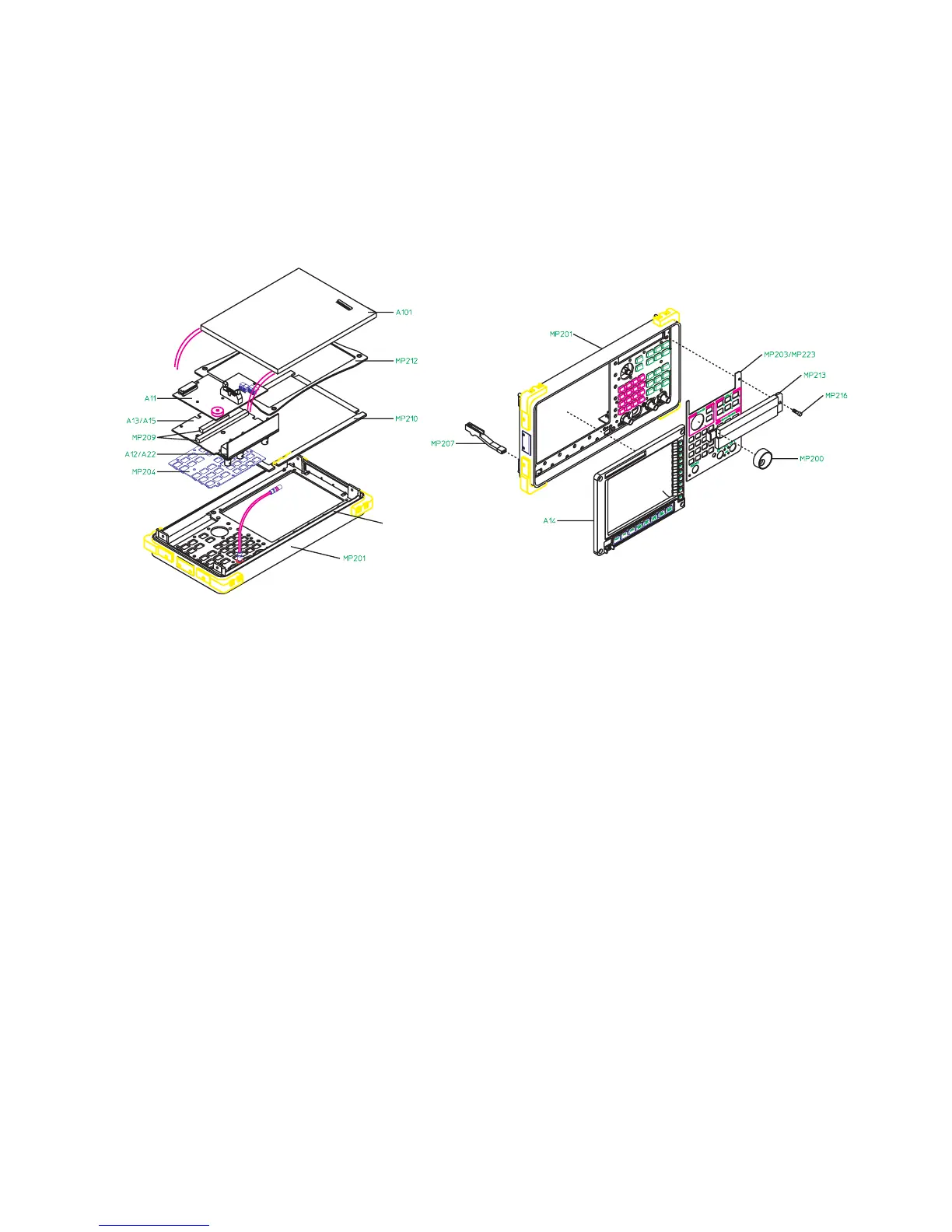

Figure 16 Front panel parts
Ref Des Agilent Part Number Description
MP201 35670-22021 CSTG-FRT FRAME MACH&PAINTED
MP210 35670-29321 LNZ-FLTR RFI/OPTICAL
MP212 35670-44723 DISPLAY GASKET
MP211 8160-1502 4 RFI ELASTOMER STRIPS
MP211
