Programming Examples for VEE Users
Synchronous Sweep Measurements

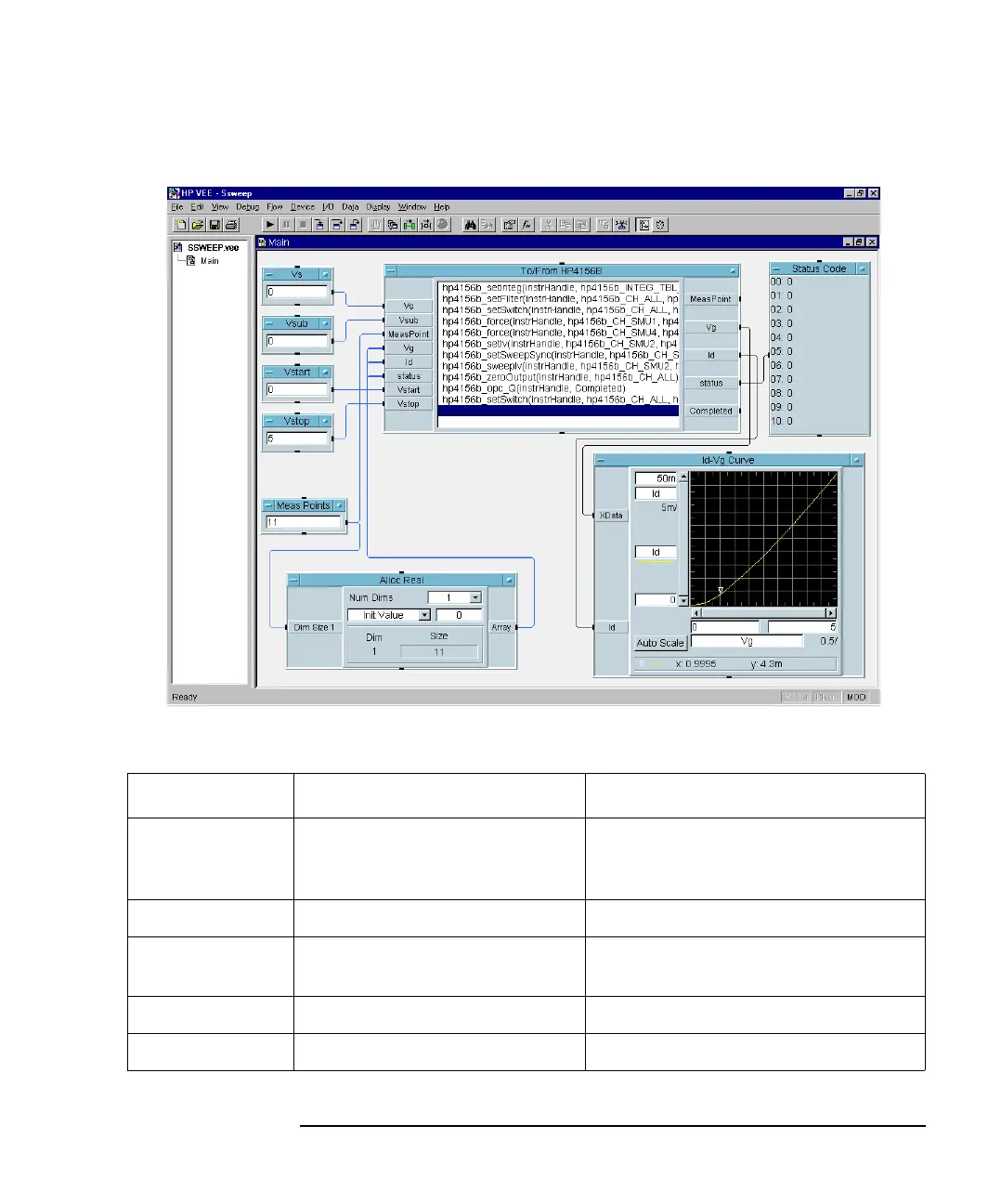

Figure 6-20 Program Example of Synchronous Sweep Measurement
Table 6-9 Program Explanation
Object Title Menu Explanation
Vs,Vsub
Vstart,Vstop
MeasPoints
Data-Constant-Real
Data-Constant-Integer
Enters input parameters of hp4156b_force,
hp4156b_setIv, and
hp4156b_setSweepSync.
To/From HP4156B I/O-InstrumentManager- Plug&play Executes measurement.
AllocReal Data-AllocateArray-Real Allocates array for Vg[ ],Id[ ],status[ ] of
hp4156b_sweepIv.
Status Code Display-AlphaNumeric Displays status[ ].
Id-Vg Curve Display-XvsYPlot Plots Id-Vg curve.
