Laboratory Facilities
36 Agilent 5100 and 5110 ICP-OES Site Preparation Guide
It is recommended to directly connect the exhasut ducting directly
via the 150 mm diameter exhaust vent. However if using an
extraction hood it is important to closely couple this to the extration
port with a distance of no more tham 1.5 cm (0.6 inches) above the
exhaust outlet.

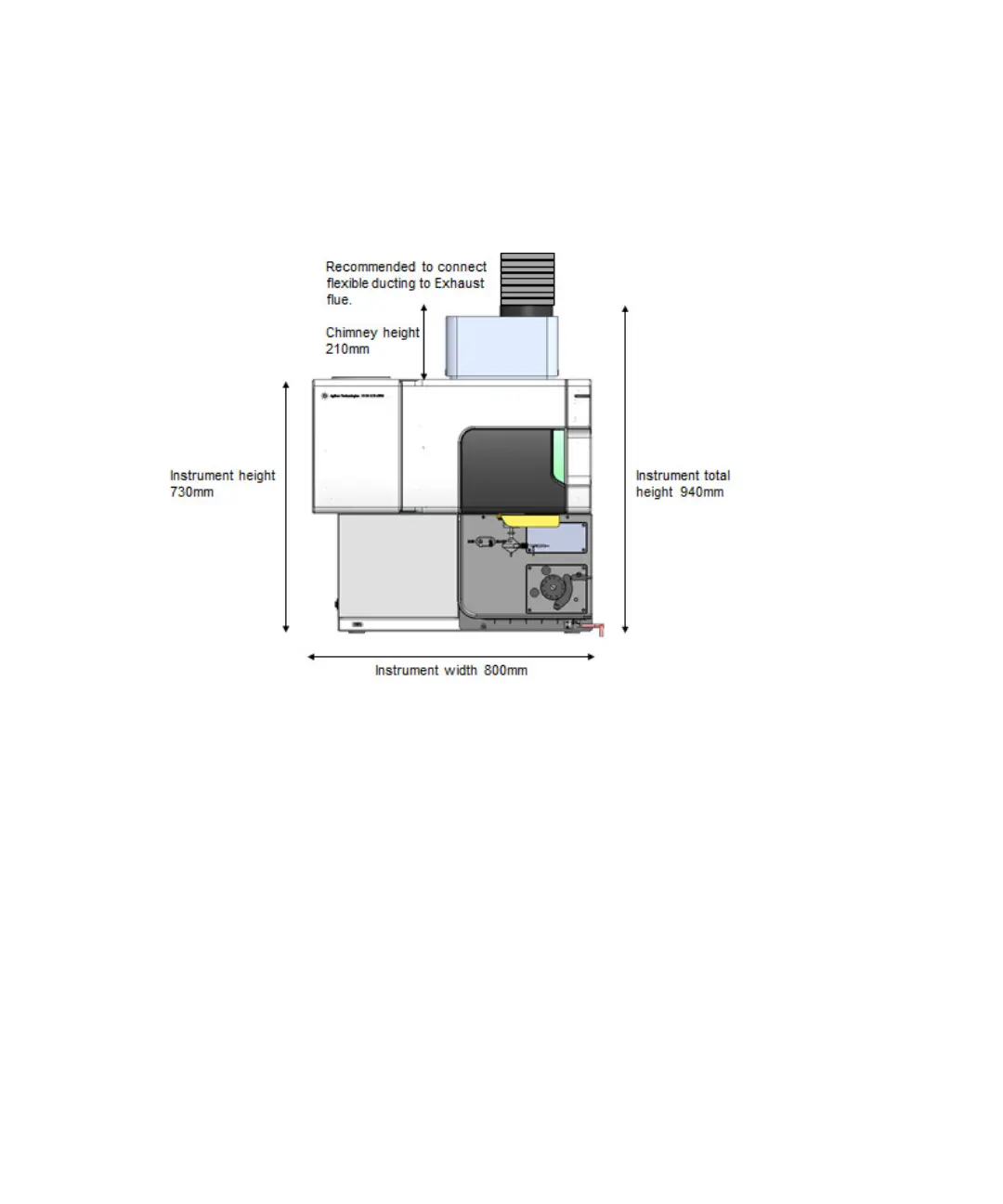

Figure 7. Spectrometer and flue position
Agilent Exhaust System
The component parts required for an exhaust system may be
purchased from Agilent. The parts may be ordered individually or in
kit form. To allow for personal preferences, control gear switch and
pilot light assemblies are not supplied by Agilent.
Table 3. Agilent exhaust kits
Exhaust kit
Exhaust kit for 240 V, 50 Hz supply
Exhaust kit for 115 V, 60 Hz supply
