Laboratory Facilities
Agilent 5100 and 5110 ICP-OES Site Preparation Guide 37
NOTE
Mounting hardware for the flue and fan is not included with the Agilent-supplied
Exhaust Kit.
Each Agilent exhaust kit contains the following items, which must be
installed by local fitters and not the Agilent service engineer.
Table 4. Exhaust kit components (refer to Figure 6)
Item Remarks Quantity
1 Exhaust fan (for 240 V, 50 Hz supply only) 1
Exhaust fan (for 115 V, 60 Hz supply only) 1
2 Flexible ducting 1 meter length, aluminum 3
3 Coupling for joints in ducting 2
4 Ducting clamp two required per coupling 6

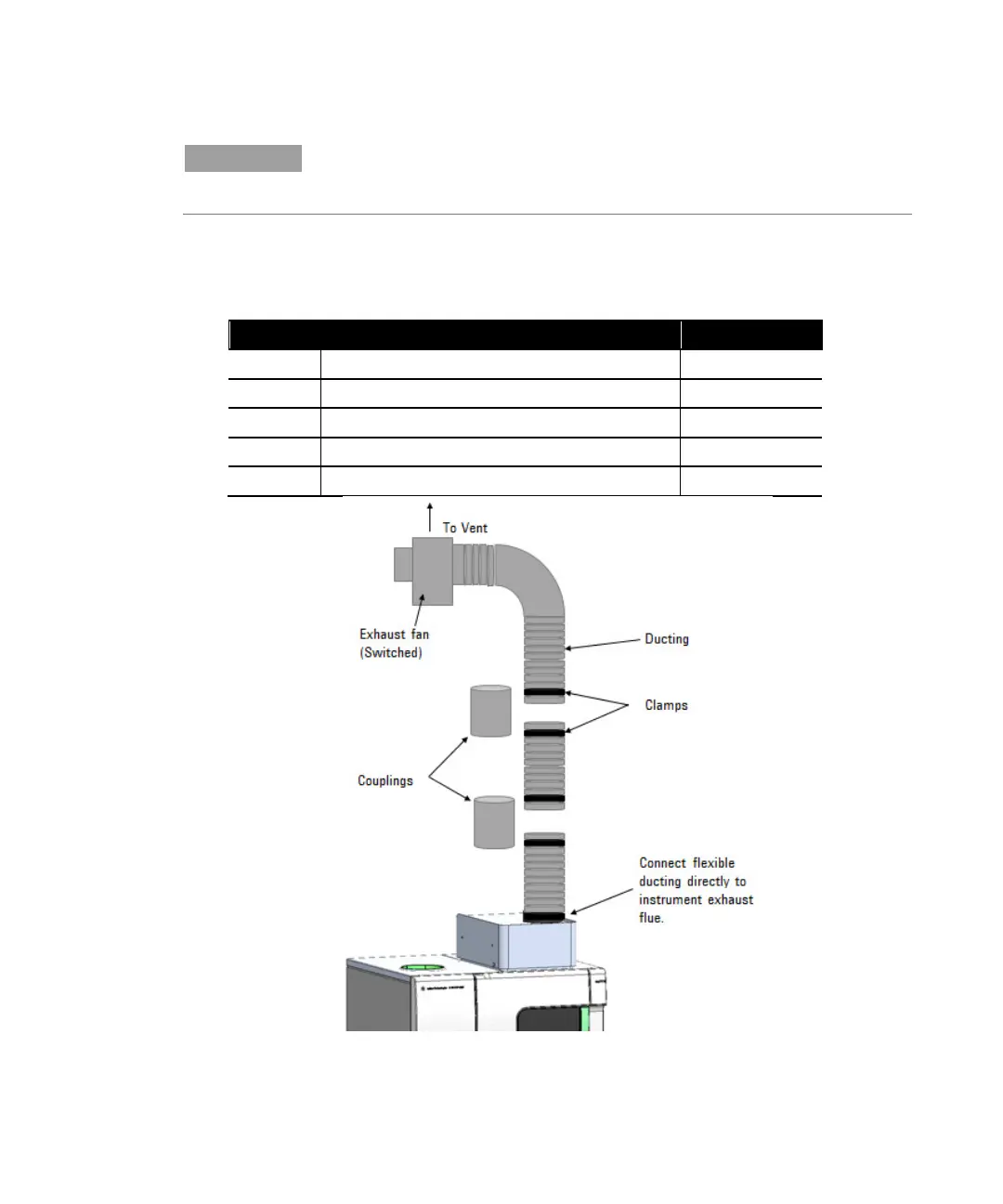

Figure 8. Agilent exhaust kit components
