Laboratory Facilities
38 Agilent 5100 and 5110 ICP-OES Site Preparation Guide
Agilent Exhaust Fan Electrical Information
Table 5. Exhaust fan motor specifications
Voltage 240 volts single phase 115 volts single phase
Current 0.45 A 0.7 A
Frequency 50 Hz 60 Hz
Power input 74 W 51 W
Direction of rotation Anti-clockwise (shaft end)
Nominal RPM 1600
Installation instructions for the exhaust fan are included with the
Agilent-supplied Exhaust Kit.. Figure 9 details exhaust fan wiring
information for the 115 V 60 Hz fan only.

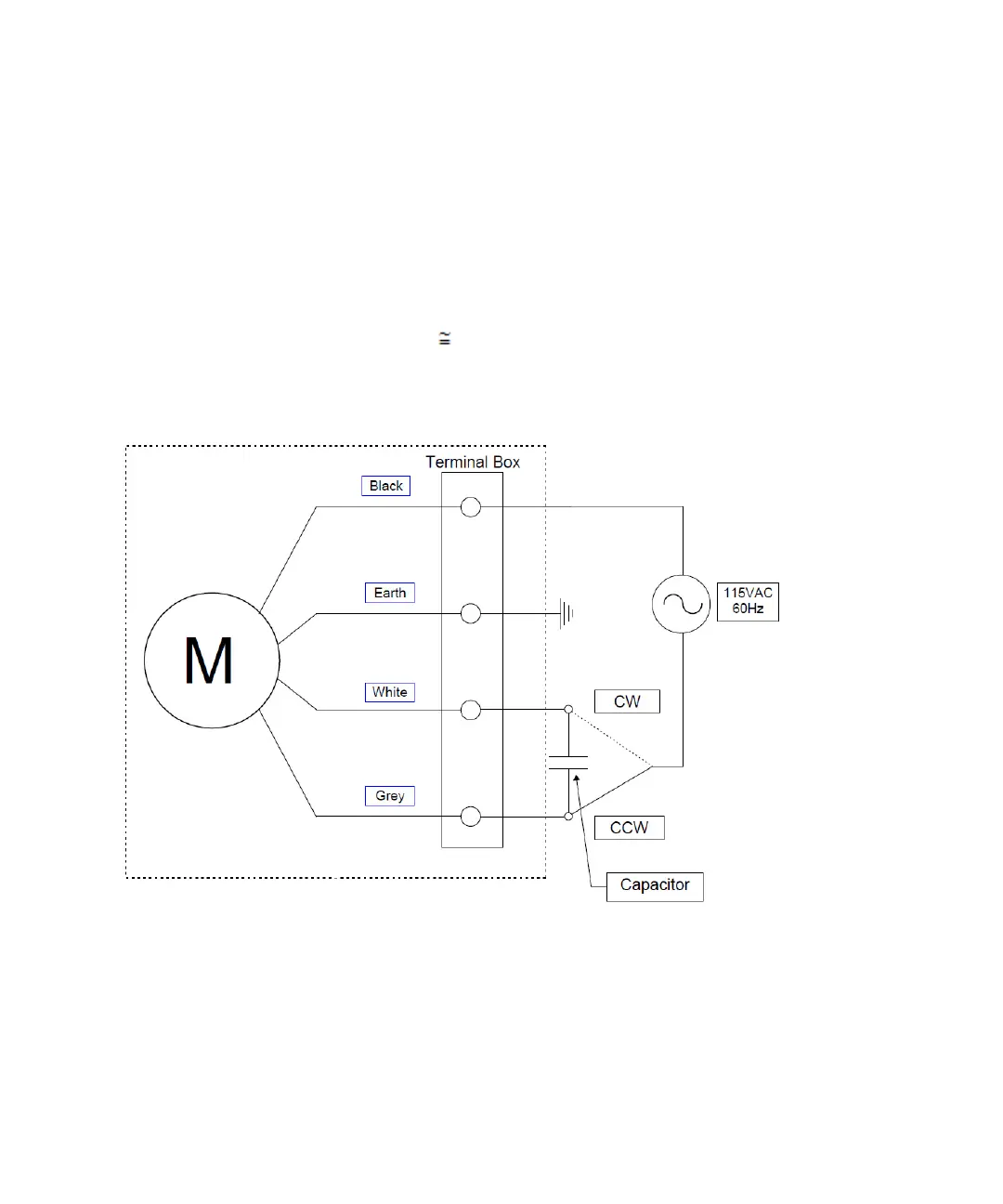

Figure 9. Electrical wiring information for 115 VAC 60 Hz fan only
