Installation
30 Agilent 5800 and 5900 ICP-OES User's Guide
3 Gently slide the quartz tube-set into the torch body, avoiding contact with the
injector.

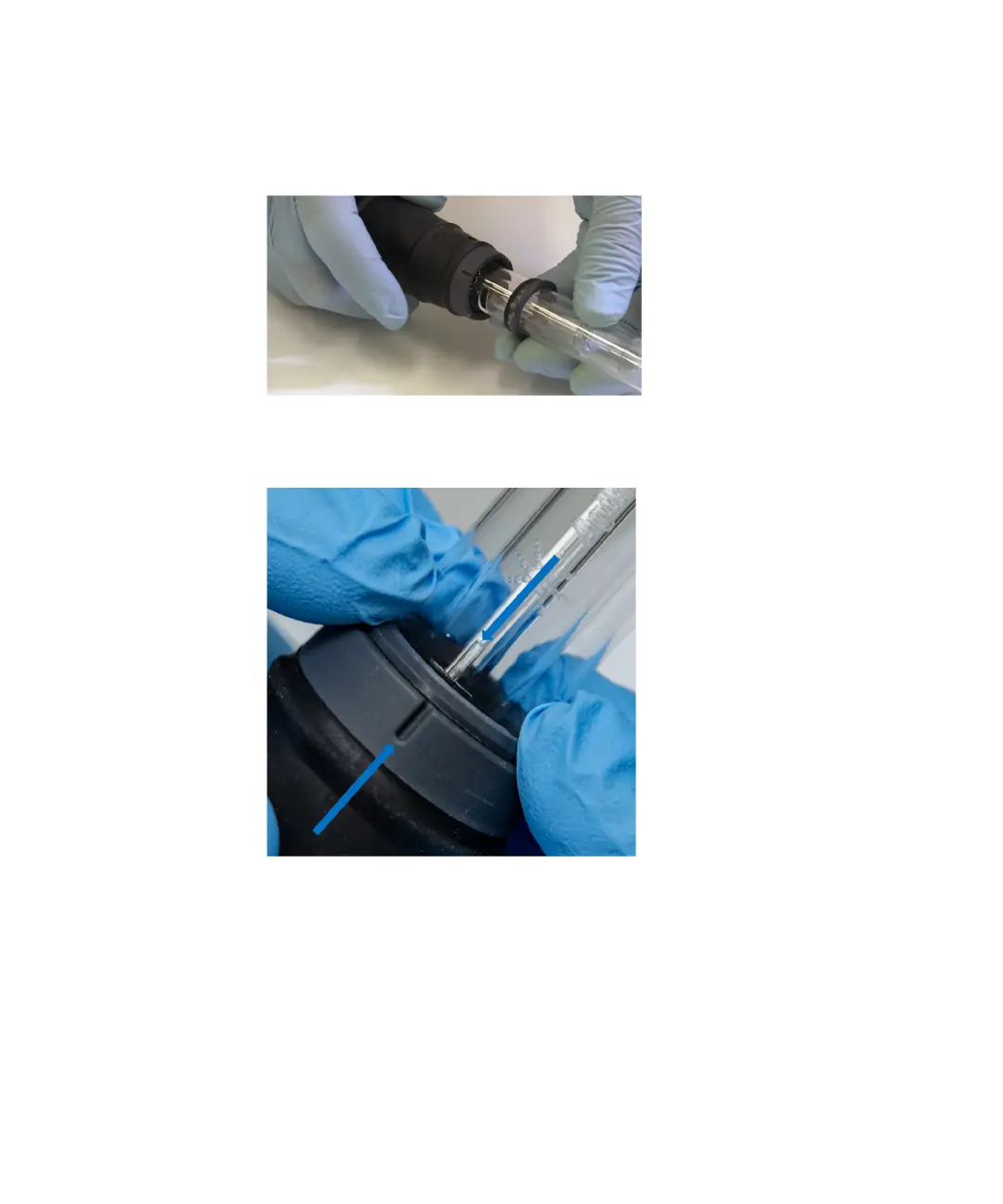

Figure 6. Torch inserted into torch body
4 Position the quartz tube-set so that the groove on the torch body aligns with
the âTâ alignment mark on the quartz tube-set as shown in Figure 7.
Figure 7. The alignment mark on the quartz outer tube-set should be aligned with the groove on
the torch body
5 Press the quartz outer tube-set fully into the torch body and then press down
on the top seal to secure the tube-set in place. See Figure 8.
