Set up and Configuration of CE in Empower 3
Agilent 7100 CE in Empower Environment 5
Set up and Configuration of CE in Empower 3
CE Instrument set up
1 Close Empower.
2 Set up the CE system.
3 The CE uses LAN communication, e.g. via the multiport ethernet card.
Connect the CE to the LAC/E box. If another instrument is connected
to the LAC/E, connect via switch or hub.
4 Switch the instrument on.
The CE Driver
The CE driver is part of the LC Driver and not listed as a separate
component. Therefore, Agilent ICF consists of two components; the Waters
integration adds one additional component. All three components must be
present in Control Panel > Programs and Features:

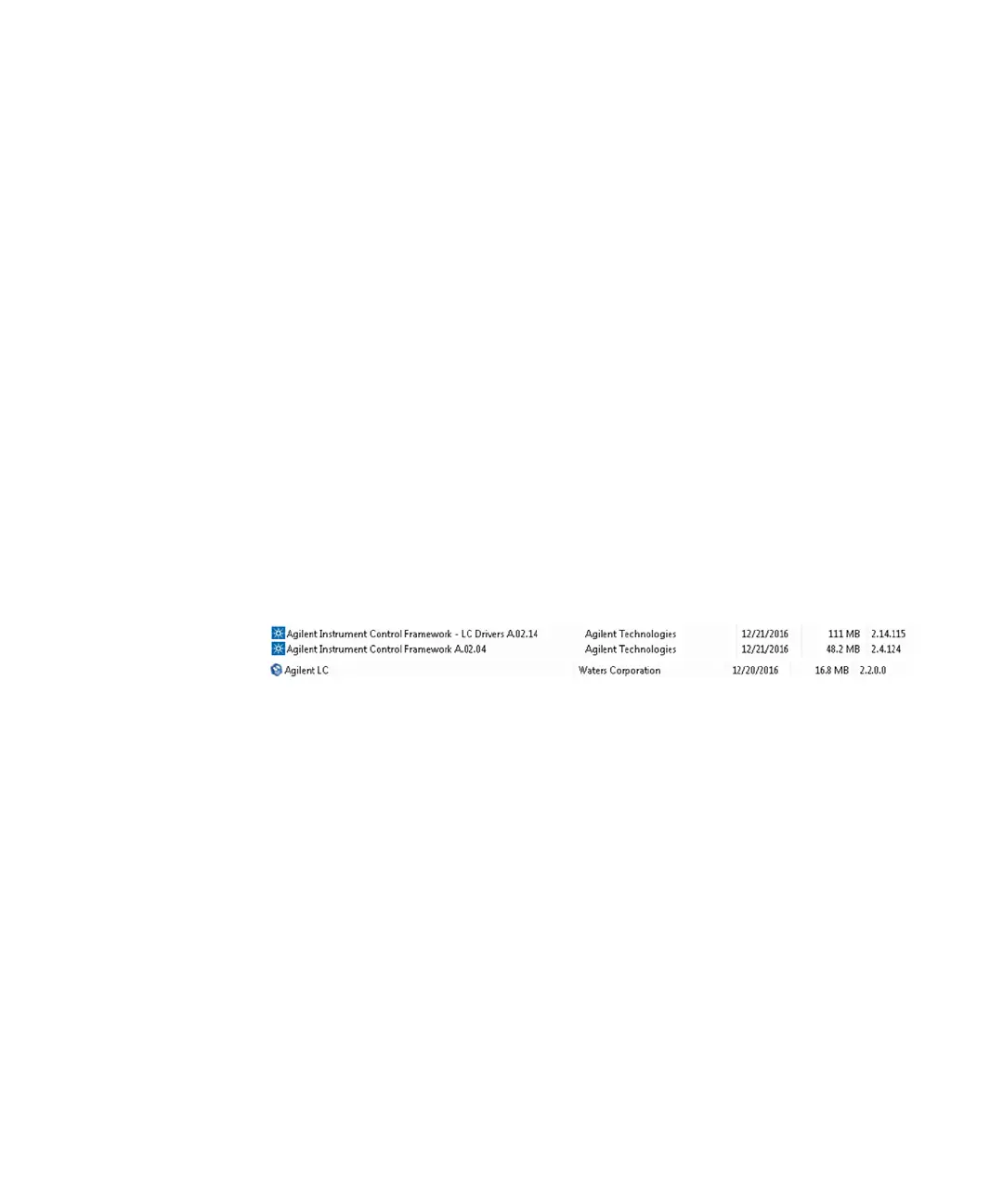

Figure 1 Components in Programs and Feature
Various Configuration Steps for CE in Empower
To run CE in Empower the following items are required:
A CE specific project for data collection
The configuration of the CE instrument
Creating a CE Project
Configure a specific CE project to review the acquired data later.
1 Select File > New > Project to open the New Project Wizard.
2 Follow the instructions in the wizard screen and proceed with default
settings if no other values are given via Standard Operating Procedure
(SOP).
