Maintenance 3
Maintenance 25
4
Remove the carousel assembly.
a Remove the three T- 20 Torx screws on the carousel
top, and remove the carousel top (Figure 15).

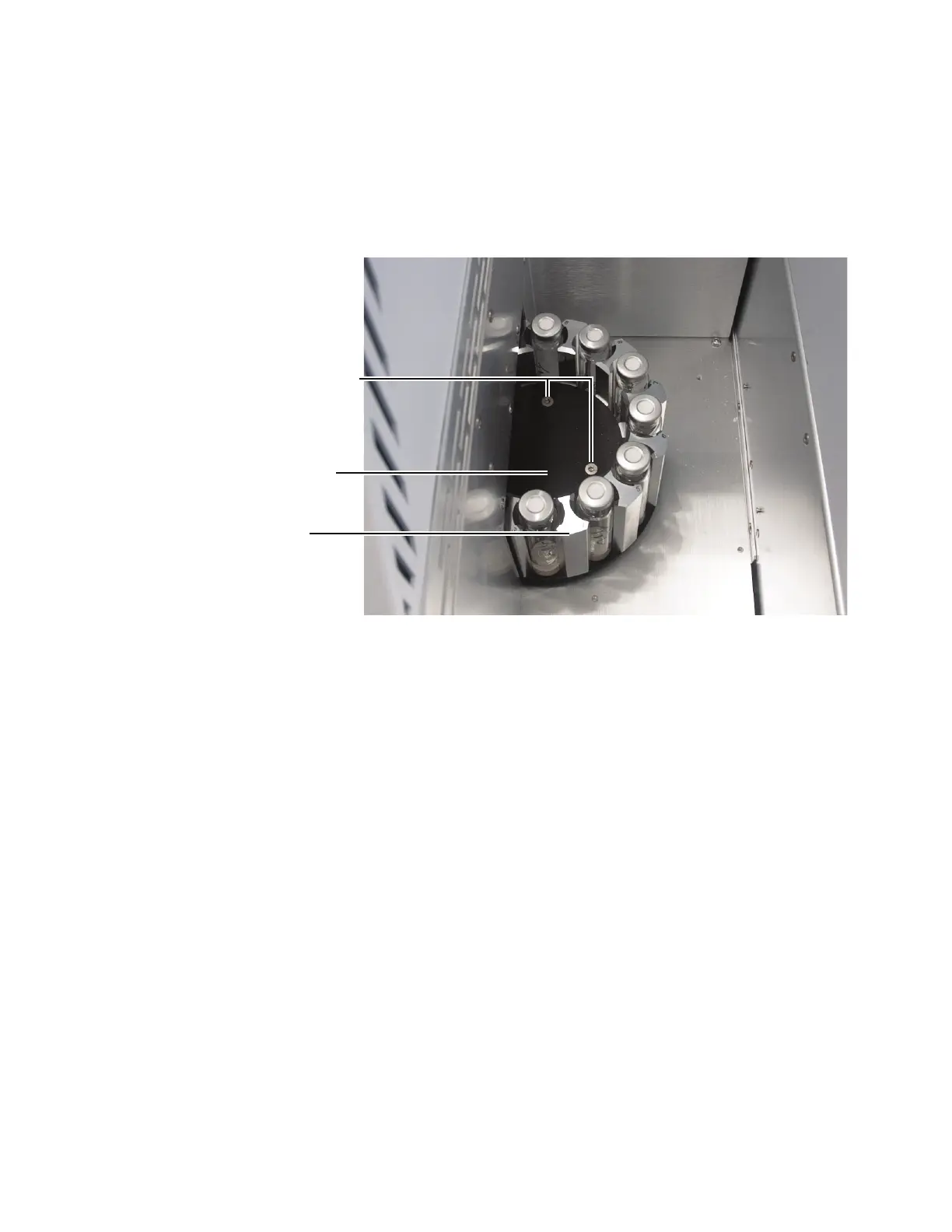

Figure 15 Oven area and carousel
b Remove the three T- 20 Torx panhead screws and
washers on the carousel base that secure the carousel
to the carousel hub (Figure 15).
c Carefully remove the carousel from the carousel hub.
5 Clean the vial area.
a Carefully remove any broken glass from the carousel
and vial tray area using a vacuum cleaner.
b Wipe away any spills from the carousel and vial tray
area using a lint- free cloth.
Reassembly is the reverse of these steps.
Panhead screws
Carousel top
Carousel
