Depending on your hardware configuration, do one of the
following:
• Remove the loop cover and valve cover (Figure 23). See
“To Remove the Loop Cover” and “To Remove the Valve
Cover”.
• Remove the valve/loop cover (Figure 24). See “To
Remove the Valve/Loop Cover”.

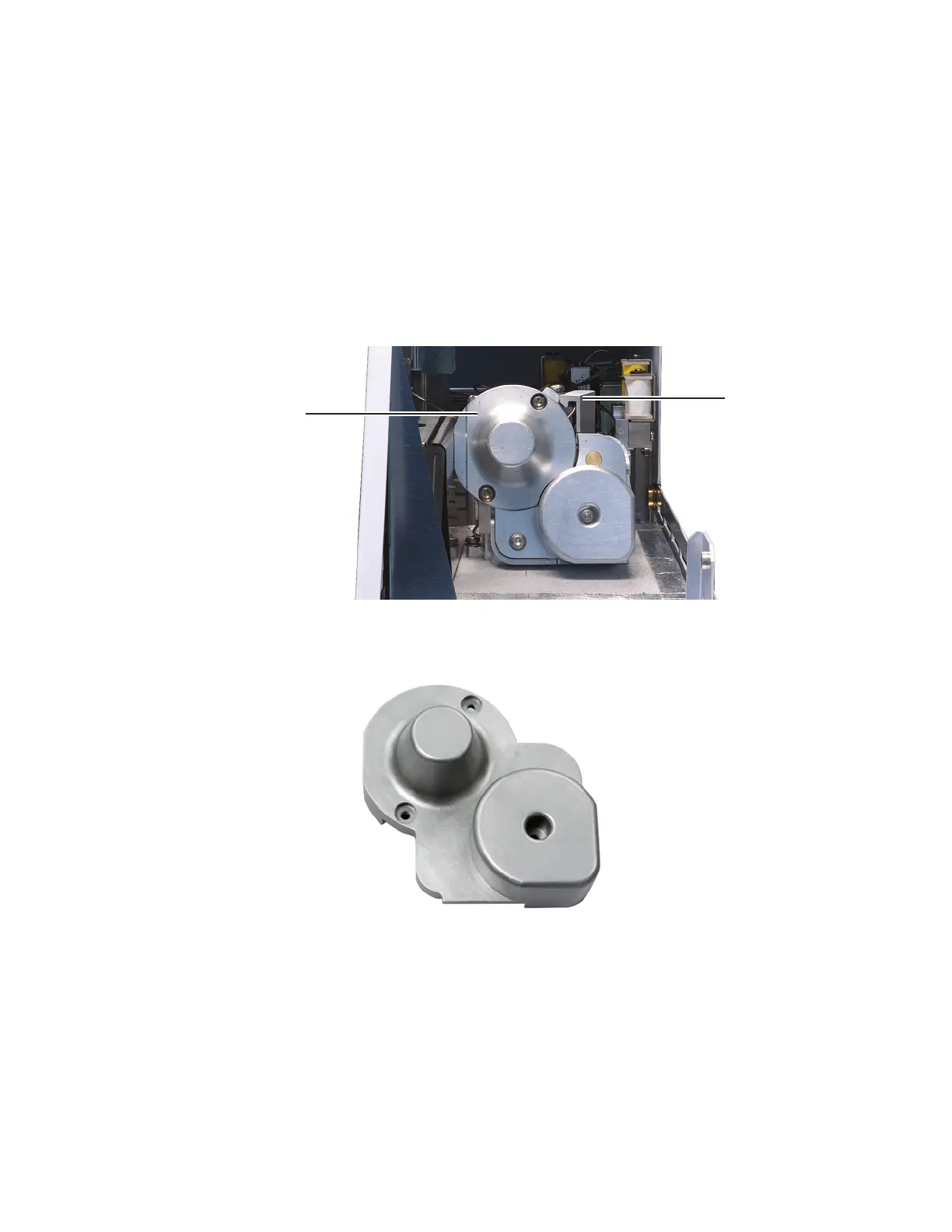

Figure 23 The valve and sample probe covers
Figure 24 The valve/loop cover
7 Remove the sample probe cover:
a Remove the T- 20 Torx screw that secures the sample
probe cover.
b Lift the sample probe cover from the probe (Figure 23).
Sample probe cover
6 port valve cover
