4.
On
the
sp
ectrum
analyzer,
set:
Center
Frequency:
44.125
MHz
Frequency Span:
500 Hz
Adjust
the frequency
oset to
cen
ter
the
signal
on
the
displa
y
.
Frequency Span:
0Hz
P
eak the
signal
on
the
displa
y
.
Note the
signal
lev
el:
dBm
Center
Frequency:
44.0 MHz
Reference
Level:
0
40
dBm
5.
On
the
syn
thesizer,
adjust
A4R70
(see
Figure
3-6
)
for
minim
um signal
on
the
sp
ectrum
analyzer.

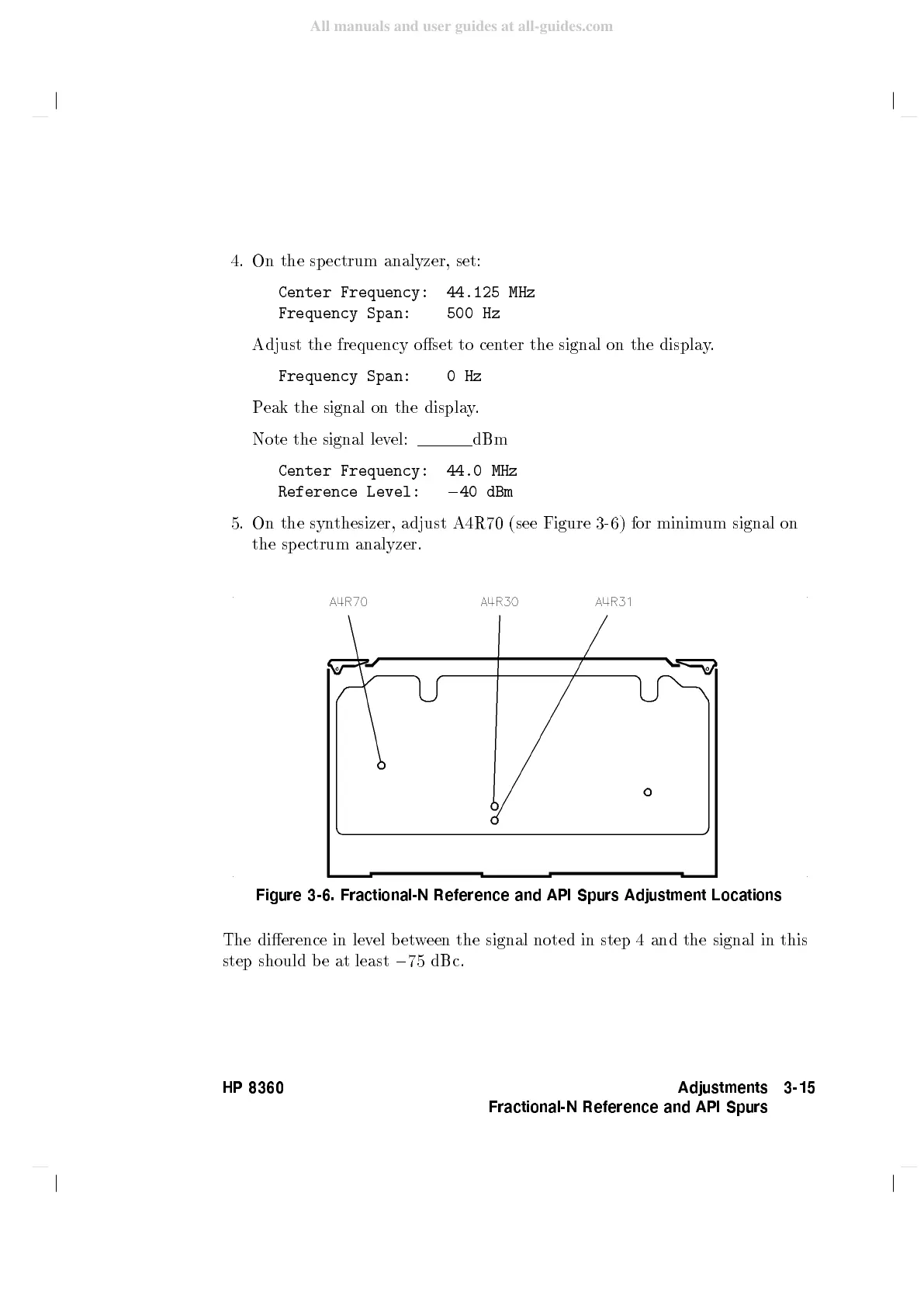

Figure 3-6. Fractional-N Reference and API Spurs Adjustment Locations
The dierence
in level b et
ween the signal noted in step 4 and the signal in this
step should b e at least
0 75 dBc.
HP 8360 Adjustments
Fractional-N Reference and API Spurs
3-15
