23.
External
Trigger
Edge
Selection
Description
and Procedure
No test
equipment
is
required
for
this
pro
cedure.
This
pro cedure
sets
the
external
trigger
to
trigger
on
either
the
leading
or
the
trailing
edge
of
a
TTL
signal.
When
the
jump
er
(sho
wn
in
Figure 3-40
)is
in
the
POS
p
osition
asw
eep is
triggered
on
the
leading
edge
of
the
pulse
(when
the
signal
changes
from
0
to
5
v
olts).
When
the
jump
er
is
in
the
NEG
p
osition
a
sw
eep
is
triggered
on
the
trailing
edge
of
the
pulse
(when
the
signal
c
hanges
from
5to
0
v
olts).

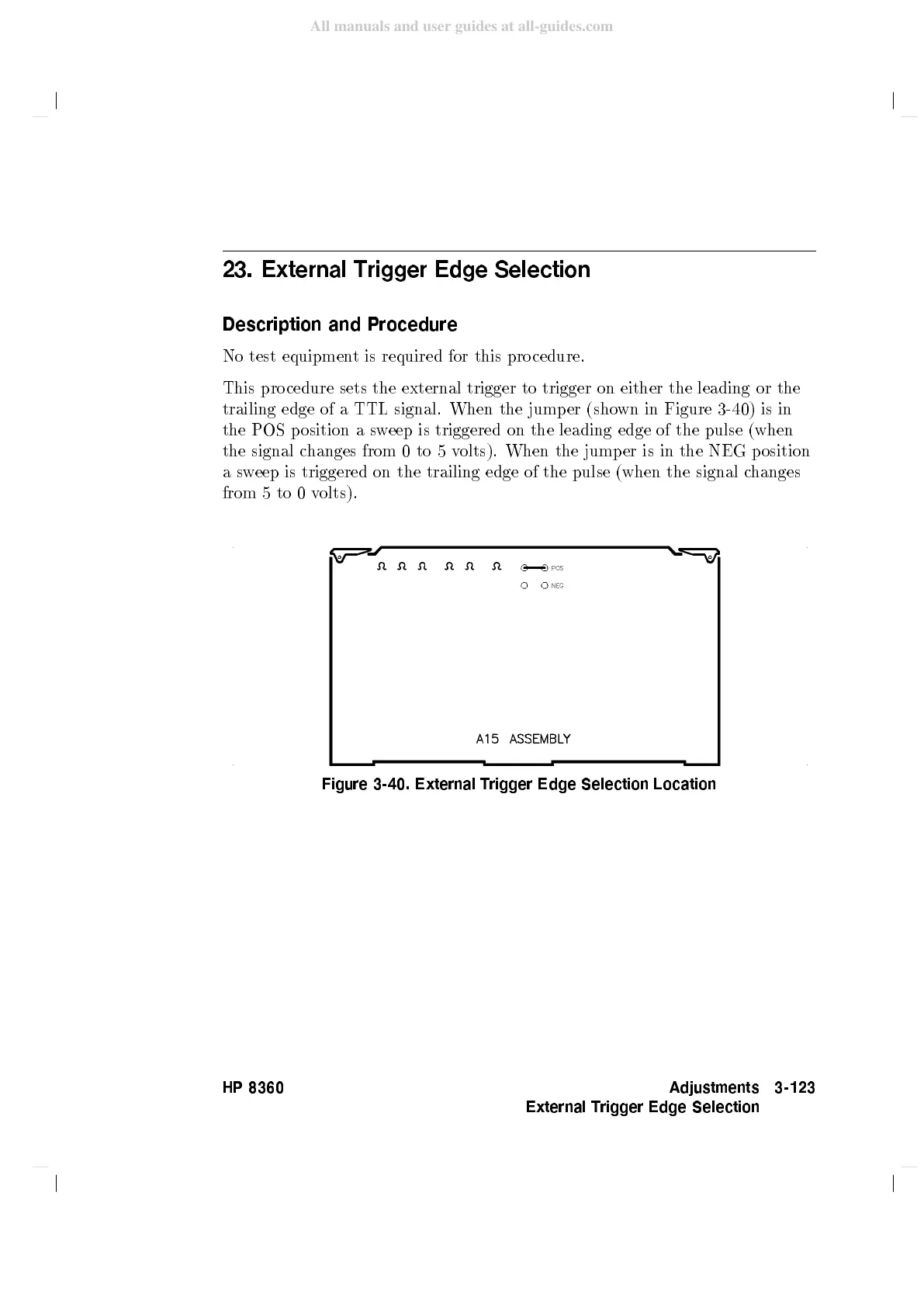

Figure
3-40.
External Trigger
Edge Selection
Location
HP 8360 Adjustments
External Trigger Edge Selection
3-123
