6.
RPG1
Rotary
Pulse
Generator
Remo
v
al
Refer to
Figure
7-9
.
1.
Complete
\1.
Preliminary
Steps",
\2.
F
ron
t
P
anel Remo
val",
and \3.
A3
F
ront
Panel
Pro cessor
Remov
al"
b
efore
con
tin
uing.
2.
Lo
osen
the
t
w
o
hex
screws
and
remo
v
e
the
rotary
knob.

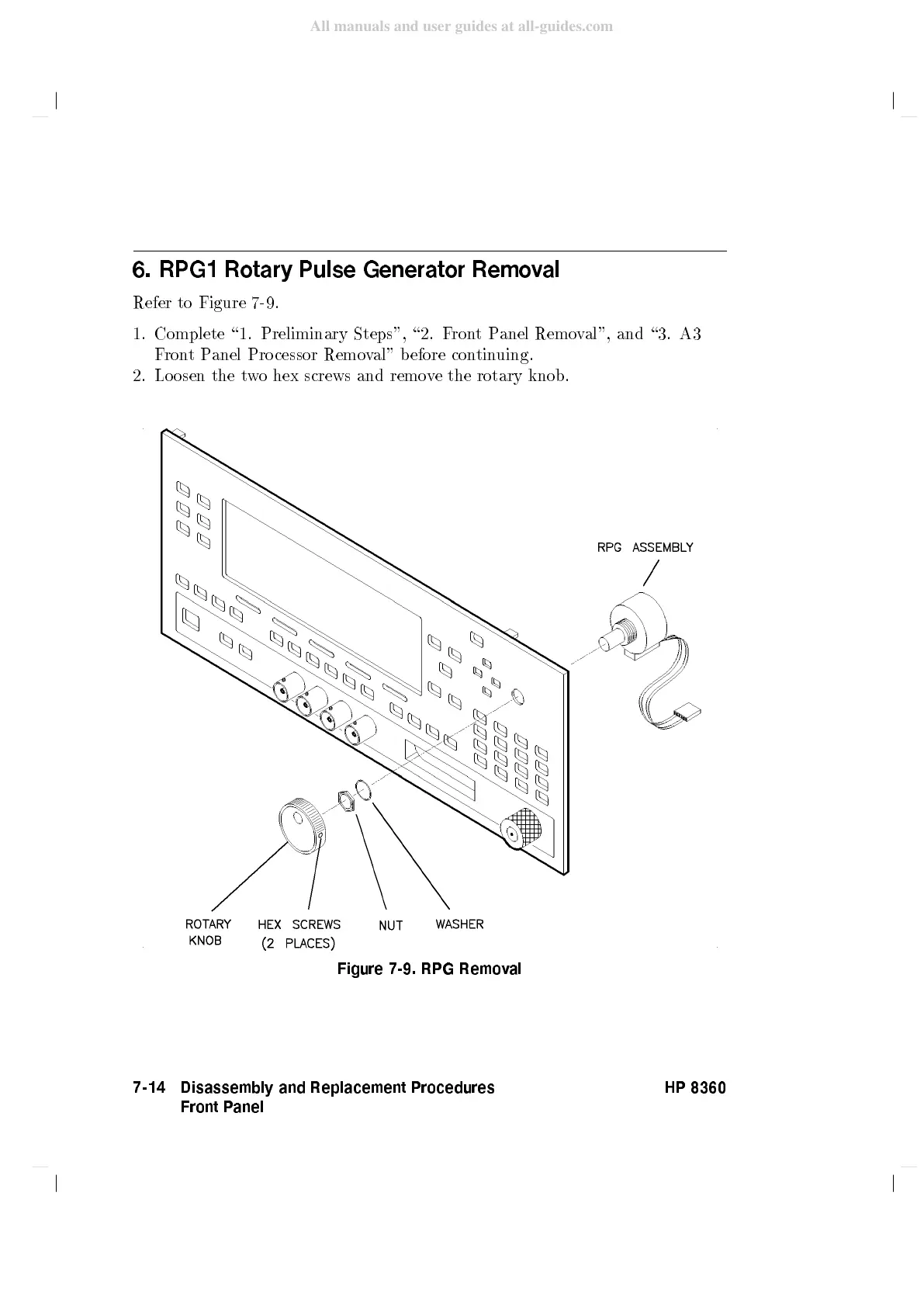

Figure 7-9. RPG Remo
val
7-14 Disassembly and Replacement Procedures
Front Panel
