Agilent Technologies 83620A - Keyboard Reassembly

To Next Page

To Previous Page

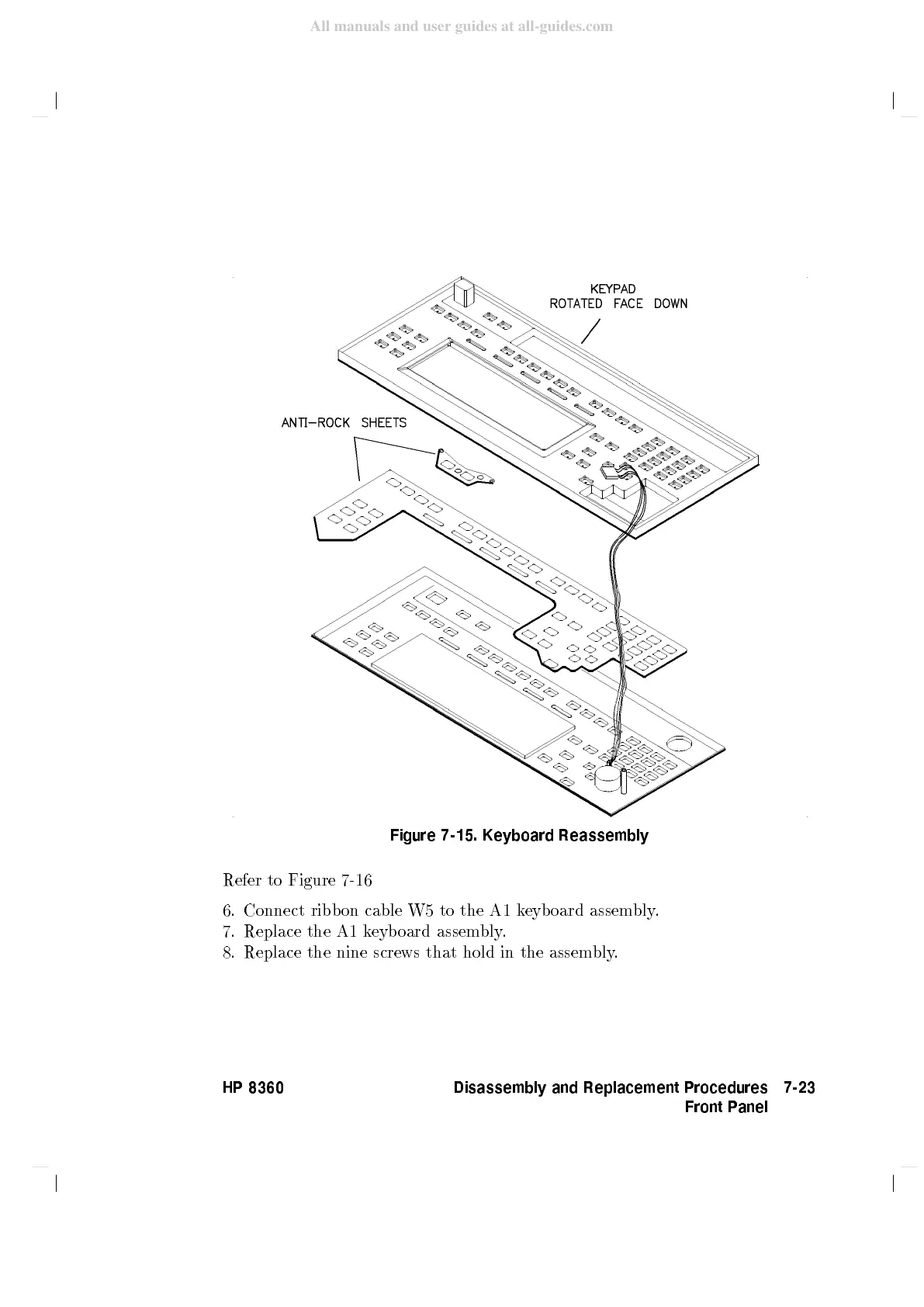

Figure

7-15.

Keyboard

Reassembly

Refer to Figure 7-16

6. Connect ribb on cable W5 to the A1 k

eyboard assem

bly.

7. Replace the A1 k

eyboard assem

bly.

8. Replace the nine screws that hold in the assem

bly.

HP 8360 Disassembly and Replacement Procedures

Front Panel

7-23
