5.
Rear
P
anel
Remo
v
al
Refer to
Figure
7-57
.
1.
Complete
\1.
Preliminary
Steps"
and
\7.
J1
RF
Output
Connector
Remo
val"
before
contin
uing.
2.
Remo
v
e
the
four
screws
on
the
top
bac
k
edge.
3.
Remo
v
e
the
four
screws
on
the b
ottom bac
k edge.
4.
Slide the
rear panel
out of
the
casting.

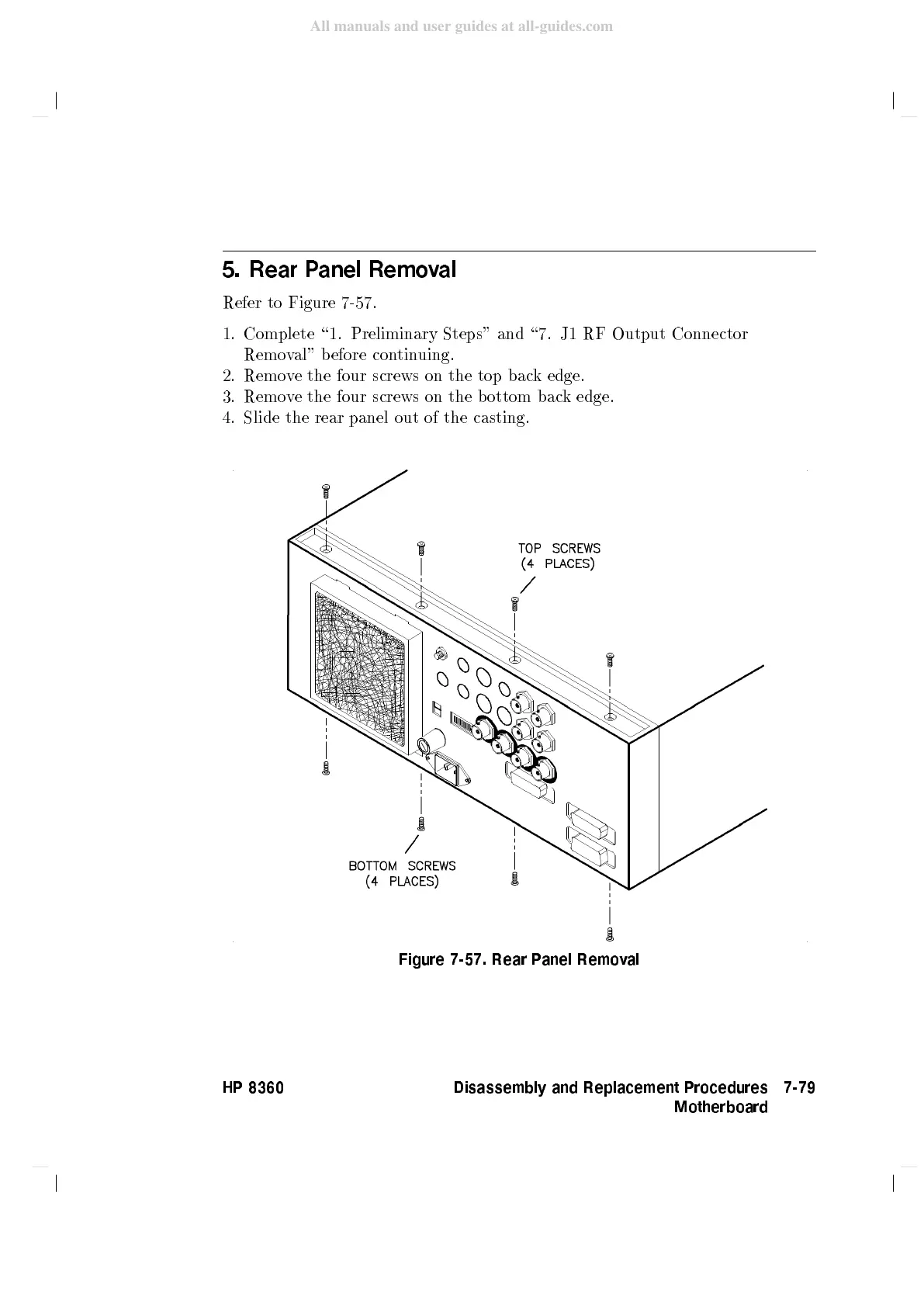

Figure 7-57. Rear
Panel Removal
HP 8360 Disassembly and Replacement Procedures
Motherboard
7-79
